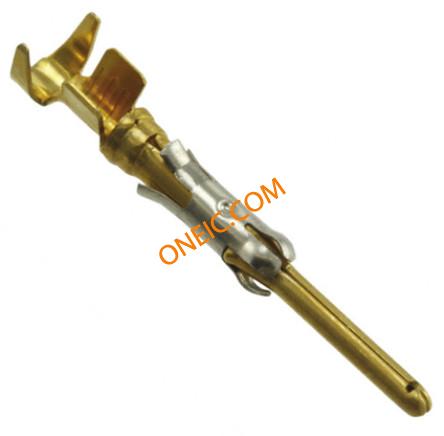

点击放大查看
66602-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONTACT PIN .062 14-18AWG CRIMP Contact,Multimate,Pin,16,CopperAlloy Pin & Socket Connectors III+ PIN 18-14 30AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinHigh CurrentGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-14AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Signal;GoldoverNickel;18-14AWG III+ PIN,18-14,30AU/FL,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 666029 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 输出电流 | Pin | 最大额定电流 | 25A |
| 输出高/低电流 | Yes | ||
机械参数
| 深度 | 4.32 mm | 间距 | Not Required mm |
| 重量 | 0.00045 | 镀层 | Gold |
| 材料（通用） | Copper, Nickel Alloy | 包装方式 | Bulk |
| 导线类型 | Discrete | 电缆类型 | Discrete Wire |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Signal |
| 引脚直径 | 1.57 [0.062] | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold (30) over Nickel (50) | 安装样式 | Cable |
| 磁芯材质 | Stainless Steel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 18to14AWG |
| 框架材料 | StainlessSteel | 包装数量 | Loose Piece |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 端接表面处理 | Gold Flash | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 绝缘直径 | 2.79 â 3.81 [0.110 â 0.150] |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 18-14 |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 备注 | Contacts can only be used in Metrimate, Series 1 (Arr. 23-24), Series 4 (Arr. 2 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | Multimate Type III | 制造商全称 | Multimate |
| 产品子类型 | Type III+ - Enhanced High Current | 连接类型 | Wire |
| 端口数 | 1 Port | 适用产品/相关产品 | Multimate Connector |
| 适用/相关制造商 | M Series Connectors, CPC Connectors | ||
