点击放大查看

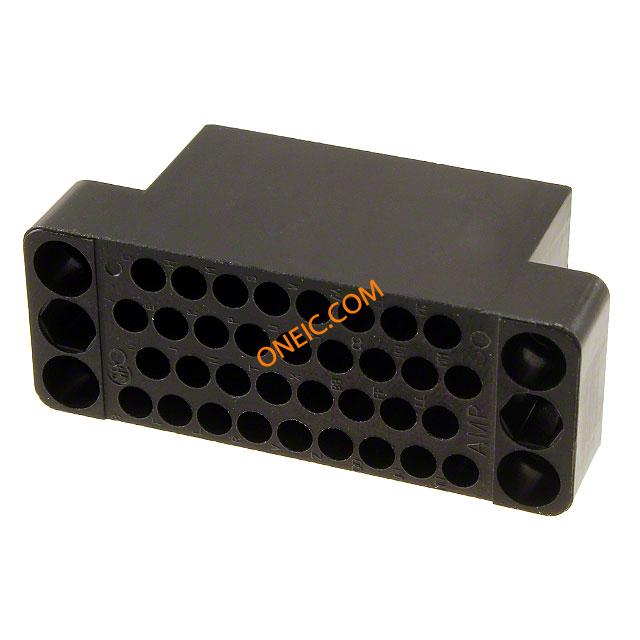

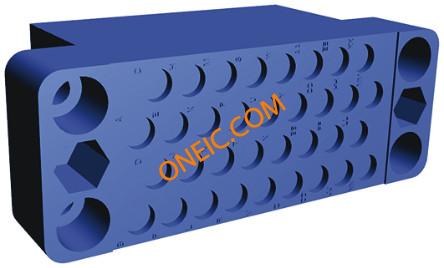

201357-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 34 POS 3.81mm ST Loose Piece M Series Connectors MALE BLOCK 34 PL TE Connectivity 3.68mm 34 Way 4 Row Straight Multiway Connector Free Hanging, Panel Mount Pin & Socket Connectors MALE BLOCK 34P Conn Housing PL 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 34WAY |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 85 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Blue | 间距 | 3.81 mm |
| 重量 | 0.014 | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Standard |
| 接触镀层 | :- | 安装样式 | Through Hole |
| 排数 | 4 | 连接器用途 | Plug |
| 触头材料 | :- | 壳体材料 | Phenolic |
| 安装特性 | None | 包装数量 | Loose Piece |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 34 | 接触件端接 | :- |
| 位数 | 34 | 中心触点材料 | No |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | PL | 系列 | M |
| 产品子类型 | Housing | ||
