点击放大查看

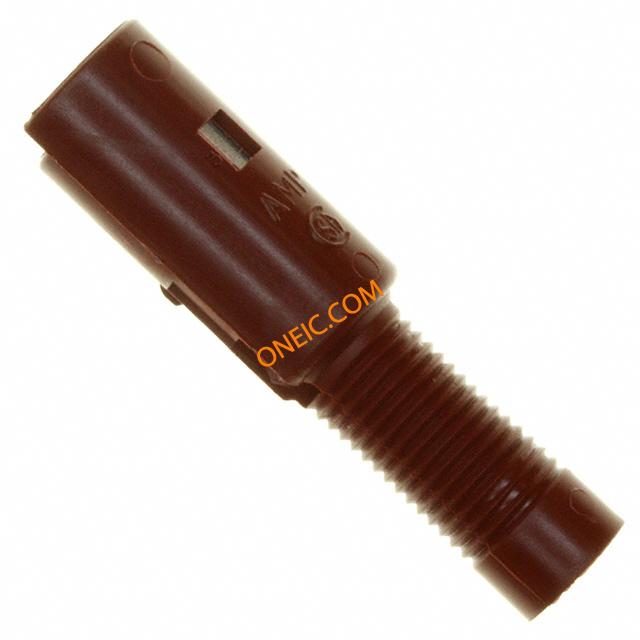

211076-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL/RCP 1 POS ST Metrimate Connectors CONN HERMAPHRODITIC 1 POS METRI Headers & Wire Housings METRIMATE HOUSING HERMAPHRODITIC Conn Housing PL/RCP 1 POS ST Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SINGLE CIR METRIMATE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 供电电压 | 600 | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Crimp and Solder | ||
机械参数

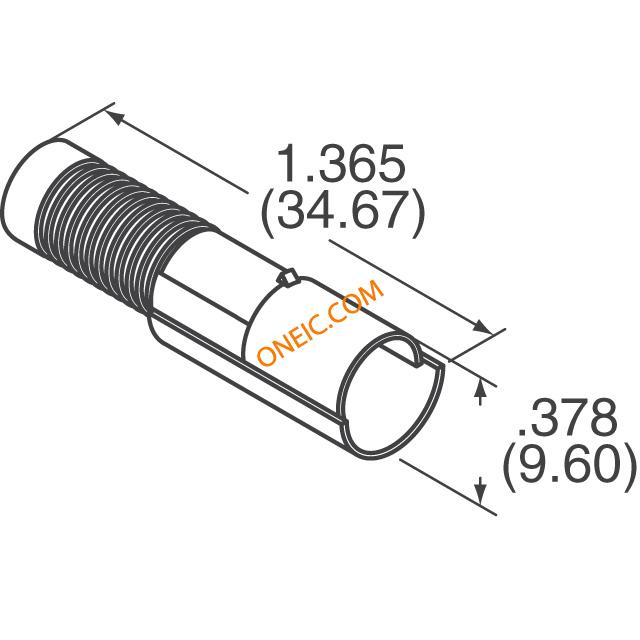

| 颜色 | Red | 深度 | 9.6 mm |
| 间距 | 5 mm | 长度 | 34.67 |
| 包装方式 | Bulk | 壳体颜色 | 红色 |
| 电缆类型 | 分离式导线 | 触点形式 | Male or Female |
| 触头类型 | Male or Female | 第二连接器 | With |
| 外壳颜色 | Red | 安装类型 | Straight |
| 连接器类型 | Housing | 紧固类型 | Locking Ramp |
| 排数 | 1 | 轴直径 | Without |
| 连接器用途 | In-Line | 锁定特性 | Breakaway Latch |
| 壳体材料 | Thermoplastic - GF | 总长度 | 34.67 mm |
| 安装特性 | Without | 包装数量 | 1,500 |
| 面板安装类型 | 不带 | 端接样式 | 插座, 插针 |
| 传感器连接器 | Without | 触点数 | 1 |
| 接触件端接 | Crimp and Solder | 位数 | 1 |
| 中心触点表面处理 | 5.0 | ||
产品信息
| 备注 | Hermaphroditic housing accepts pins or sockets and mates with itself. | 类型 | Housing |
| 连接器性别 | PL|RCP | 系列 | Metrimate, AMP |
| 已删除 | Compliant | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 其他规格 | No | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -55C to 130C | ||
