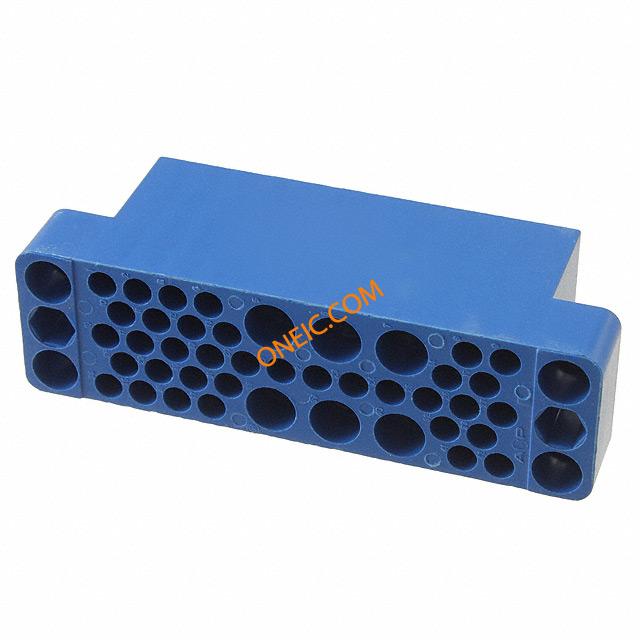

202515-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK |
| 分类 |
商业参数
| 标准包装规格 | 70 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 70 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| I/O高电平电压 | No | ||
机械参数
| 颜色 | Blue | 宽度 | 19.05 mm [ .75 in ] |
| 高度 | 57.96 mm [ 2.282 in ] | 长度 | 23.24 mm [ .915 in ] |
| 包装方式 | Bulk | 壳体颜色 | 蓝色 |
| 触点形式 | No | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Mixed |
| 排数 | 5 | 外壳材料（壳体） | 插头 |
| 连接器用途 | Plug | 壳体材料 | Diallyl Phthalate |
| 安装特性 | None | 包装数量 | 70 |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 42 | 位数 | 42 |
| 兼容外壳尺寸（如TM-700等） | 标准 50 位硬件 | 中心触点材料 | No |
| 端子排数量 | 带有 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | 42 position connector uses standard 50 position hardware.; Connector accepts an | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Connector |
| 适用/相关制造商 | Type II, Type III+, Miniature Coaxicon, Type I, Subminiature Coaxicon | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -65 – 125 °C [ -85 – 257 °F ] |
文档与媒体
相关型号
