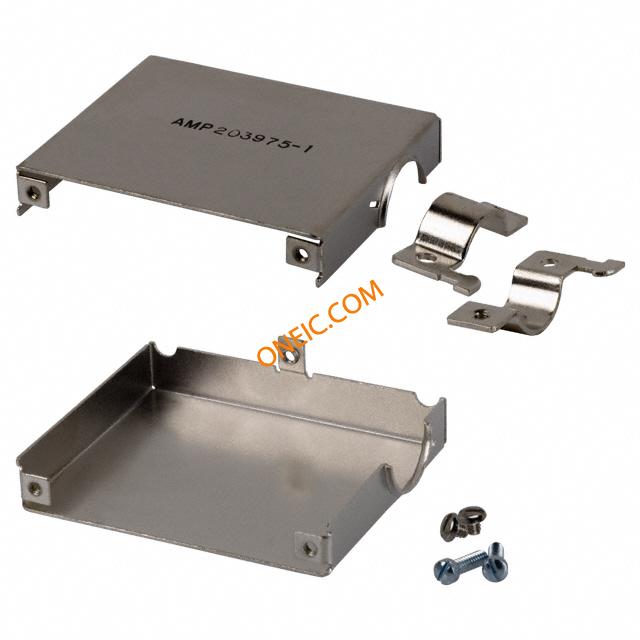

203975-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 50 POS Hardware Shield Kit Carbon Steel Nickel Finish Pin & Socket Connectors 50 UNASSY KIT M Series Connectors CONN SHIELD 50POS 2PC SHORT Connector Accessories 50 POS Hardware Shield Kit Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldShort Shield Size90° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 50 UNASSM KIT,M SERIES |
| 分类 |
商业参数
| 其他名称 | A30142 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 连接器阻抗 | 90° | ||
机械参数
| 宽度 | 22.86 mm [ .9 in ] | 高度 | 22.86 mm |
| 长度 | 53.98 mm [ 2.125 in ] | 材料（通用） | 碳钢 |
| 包装方式 | Bulk | 螺纹尺寸 | 4-40 |
| 紧固类型 | 螺钉和夹具 | 包装数量 | 1 |
| 外径 | 13.97 mm [ .55 in ] | 兼容外壳尺寸（如TM-700等） | 42 位混合连接器, 50 位标准连接器 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | 硬件以未装配状态提供。 | 类型 | Shield |
| 产品子类型 | Receptacle Housings | 硬件类型 | 屏蔽组件 |
| 附件类型 | Shield | 规格说明 | Metal, 50 Positions |
| 射频系列/标准 | 203975 | 适用产品/相关产品 | M Series |
