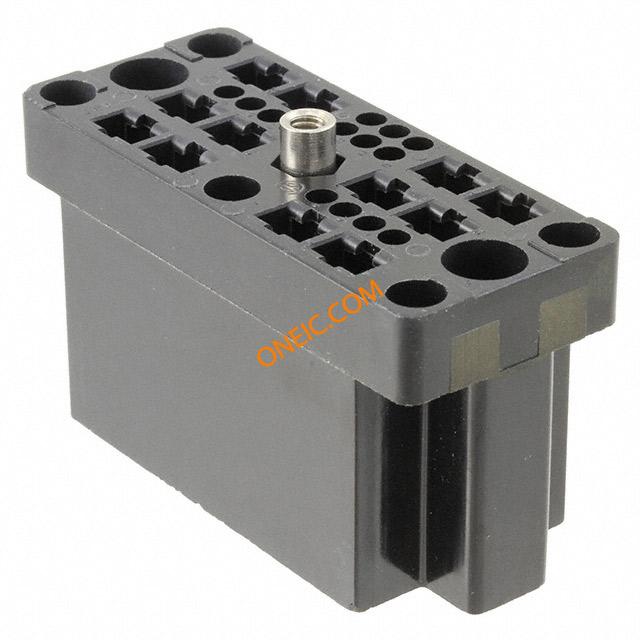

202478-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power RCP 29 POS ST Panel Mount 29 Terminal 1 Port M Series and V.35 Connectors CONN RECEPTACLE BLOCK HSG 29POS Pin & Socket Connectors 29 RCPT BLOCK W/ CF M Series Connectors M Series Connectors Product Highlights:ConnectorNumber of Positions = 29Phenolic Housing MaterialReceptacleConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 29 RCPT BLOCK W/ CF |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| I/O高电平电压 | No | ||
机械参数
| 颜色 | Black | 宽度 | 28.19 mm [ 1.1098 in ] |
| 高度 | 65.91 mm [ 2.595 in ] | 长度 | 41.28 mm [ 1.625 in ] |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 触点形式 | No | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Mixed |
| 外壳材料（壳体） | 母端, 母端 | 连接器样式 | Receptacle |
| 连接器用途 | Receptacle | 壳体材料 | Phenolic - GF |
| 安装特性 | None | 包装数量 | 1 |
| 面板安装类型 | 带有 | 端接样式 | 插座, 插针 |
| 位数 | 29 | 兼容外壳尺寸（如TM-700等） | 插头排 202479 |
| 中心触点材料 | Yes | 端子排数量 | 带有 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Connector accepts 2 Standard COAXICON; 12 Type XII; a choice of either 1 Type I | 类型 | Power |
| 连接器性别 | RCP | 产品特性 | Jackscrew Socket |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 适用/相关制造商 | Type III+ / Type I / Type II / Miniature Coaxicon / Type XII / Subminiature Coax | ||
