点击放大查看

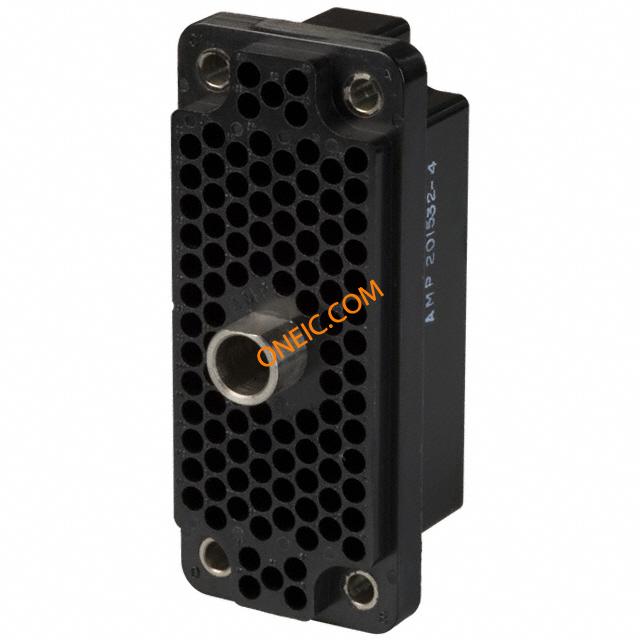

201532-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 104 POS ST Loose Piece M Series Connectors CONN HOUSING RECEPT 104POS BLACK Connector,Phenolic,Black,Standard,104 Pin & Socket Connectors RCPTBLOCK 104P Conn Housing RCP 104 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, RECEPTACLE, 104WAY Connector;Phenolic;Black;Standard;104;PanelMount;AMPBrand/MSeries RECEPT BLOCK,104 POSN,M SERIES |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 深度 | 30.38 mm |
| 间距 | 0.150" (3.81mm) | 高度 | 31.75 mm |
| 长度 | 2.945in | 重量 | 0.05 |
| 包装方式 | Bulk | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Standard | 安装样式 | Through Hole |
| 排数 | 8 | 连接器用途 | Receptacle |
| 触头材料 | :- | 壳体材料 | Phenolic |
| 总长度 | 74.8 mm | 安装特性 | None |
| 包装数量 | Loose Piece | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.15" | 第一触头极性 | Socket (Female) |
| 触点数 | 104 | 接触件端接 | :- |
| 位数 | 104 | 安装孔直径 | 0.143" |
| 螺纹/螺钉/孔尺寸 | Slotted Hex | 中心触点材料 | Yes |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Housing | 类型 | Housing |
| 连接器性别 | RCP | 系列 | M Series |
| 产品特性 | Jackscrew Socket | 制造商全称 | MSeries |
| 产品子类型 | Housing | ||
环境参数
| 工作温度 | -55C to 150C | ||
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP

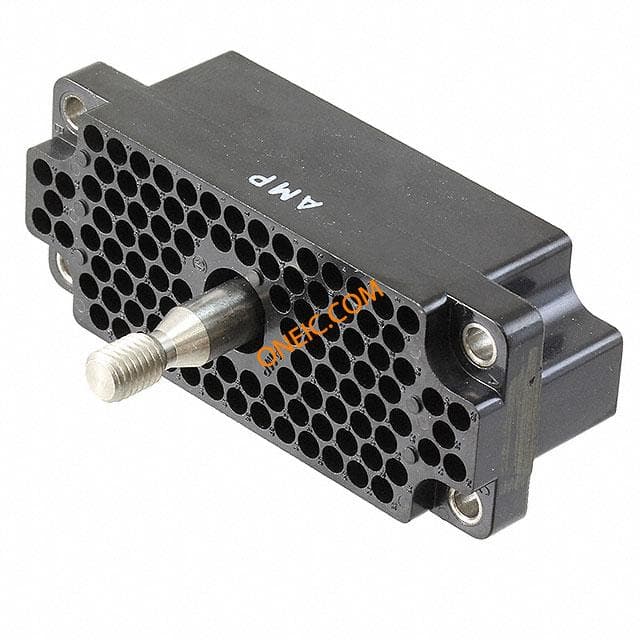

201692-2
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN PLUG 104POS STD M SERIES Pin & Socket Connectors CTR. FASTENER PLUG BLOCK-104 Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CTR. FASTENER PLUG BLOCK-104

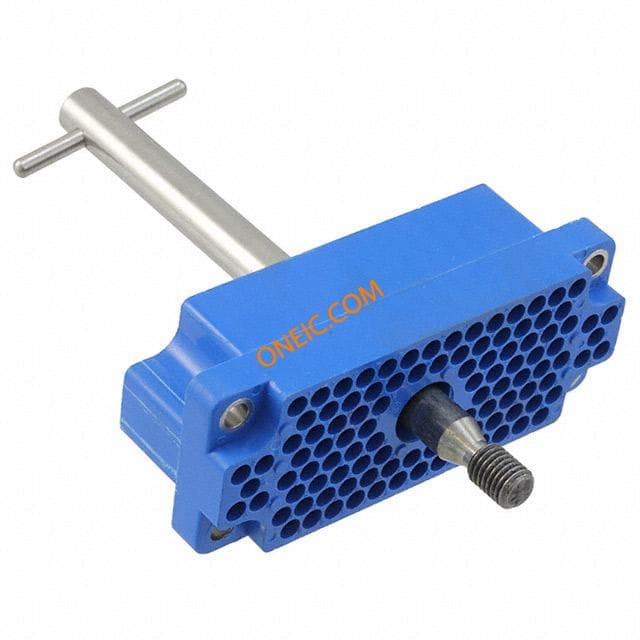

201692-3
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CTR FASTERNER PLUG BLOCK,104P IC & Component Sockets CTR FASTERNER PLUG BLOCK 104P Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
66360-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET AWG14-18 GOLD CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Standard Circular Contacts GOLD SKT 18-14 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;Brass;Signal;GoldoverNickel;18-14AWG MULTIMATE Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+
1-66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP
201611-1
te connectivity / amp
CONTACT PIN ASSY. Terminals PIN 28--24 AWG Multimate Contacts CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.08-0.24² [28-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 28-24AWG, CRIMP

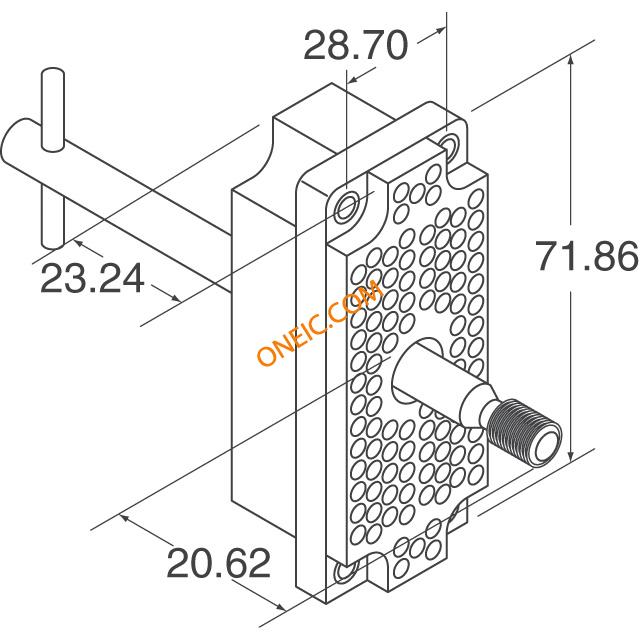

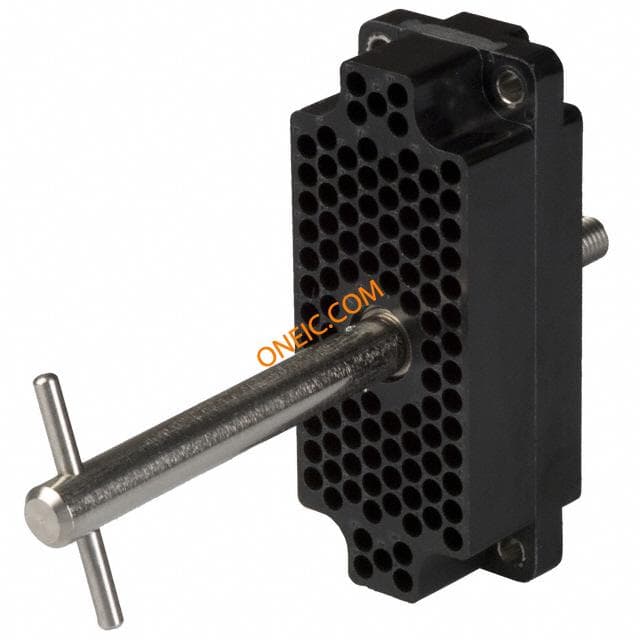

201692-4
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN HOUSING PLUG 104POS BLACK TE Connectivity 3.81mm 104 Way Straight Male Multiway Connector Pin & Socket Connectors PLUG 104P Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 104WAY InterconnectPlugHousing;Phenolic;Black;Standard;104;AmpBrand,MSeries TE Connectivity M 系列 3.81mm 节距 104 路 直 公 压接连接器外壳 CNTR FASTENER PLUG BLOCK,104P
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
66100-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 16-18AWG GOLD CRIMP Pin & Socket Connectors SIZE 16 SOCKET Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,18-16,15AU/FL,STRIP MULTIMATE Type III+ Series 18-16 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-16,15AU/FL,STRIP
201330-6
te connectivity / amp
PIN CONT ASSY, SZ 16, TYPE II Multimate CONTACT PIN 20-24AWG CRIMP GOLD Modular Connectors / Ethernet Connectors PIN 24-20 30AU Multimate Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.40 - 2.24 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66108-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 24-26AWG GOLD CRIMP Heavy Duty Power Connectors TYPE III + SKT 26-24 15AU/FL STRIP Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,26-24,15AU/FL,STRIP
66429-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors TYPIII PIN 30-26 BR/AU SIG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp III+ PIN,30-26,15AU/FL,LP
66331-8
TE Connectivity / AMP
Standard Circular Contacts SKT 24-20 30AWG REEL Multimate CONN SKT .062 20-24AWG AU CRIMP CONN SOCKET 20-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,24-20,30AU/FL,STRIP 20-24 AWG Gold over Nickel Crimp Socket Contact for CPC Series 1 Connectors TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金触点 III+ SKT,24-20,30AU/FL,STRIP
1-66400-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate Contacts CONN PIN .062 20-24AWG TIN CRIMP Multimate III Pin Contact tin 24-20 AWG Pin & Socket Connectors TIN PIN 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinBright Tin Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN CRIMP, D SUB III+PIN,24-20,TIN-LEAD,LP Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped TE Connectivity Type III+ 系列 圆形 连接器 触芯, 使用于CPC 连接器, 24 → 20 AWG 线规格 III+ PIN,24-20,TIN,LP
1-66563-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 20-24AWG TIN CRIMP CONN SOCKET 20-24AWG TIN CRIMP Pin & Socket Connectors SKT 24-20 BR/SN SIG Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketTin over Nickel Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.52 - 3.05 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,24-20,TIN,STRIP
201570-2
TE Connectivity / AMP
IC およびコンポーネントソケット PIN 14 30AU CRIMP Multimate CONN PIN 14AWG 30GOLD CRIMP
1-201692-6
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN PLUG HOUSING BLOCK 104POS Pin & Socket Connectors PLUG HOUSING BLOCK 104P Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Polyester Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CNTR FASTENER PLUG BLOCK,104P

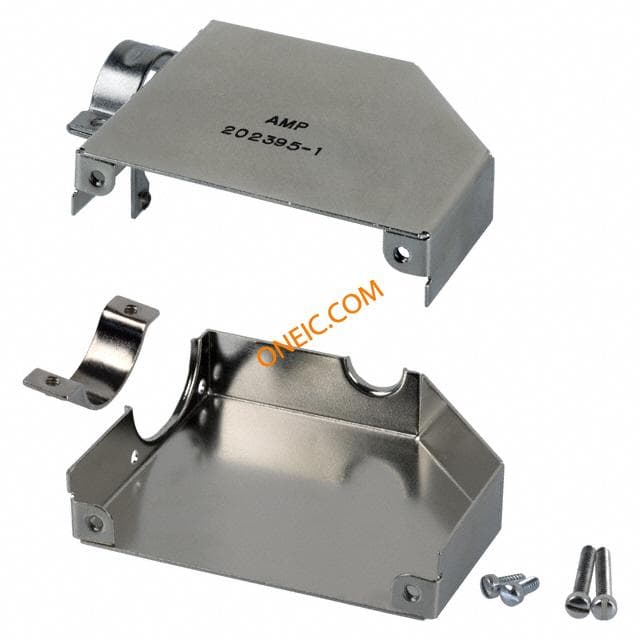

202395-1
