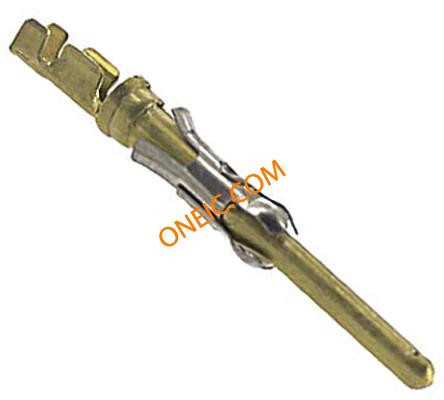

66429-3

点击放大查看

66429-3

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors TYPIII PIN 30-26 BR/AU SIG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp III+ PIN,30-26,15AU/FL,LP
分类
连接器解决方案接触件接触件（通用）

商业参数

商标名Multimate产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSNot applicable / RoHS Compliant标准RoHSCompliant
UL档案号E28476标准编号CSA, UL

电气参数

测试电流13输出电流13A
供电电压600最大额定电流13A

机械参数

深度2.16 mm间距Not Required mm
镀层Gold材料（通用）Brass
包装方式Bulk导线类型Discrete
电缆类型分离式导线导线线规26-30 AWG
端接方式Crimp触点尺寸16
触头类型Signal引脚直径0.062in.
安装类型Straight插针或插孔Pin
端子尺寸16连接器类型Connector Power
接触镀层Gold Over Nickel安装样式Cable
插入件材料黄铜触头材料Brass
壳体材料Not Required总长度27.56 mm
框架材料StainlessSteel包装数量1000
端接样式Crimp第一触头极性Pin (Male)
触点数1 POS接触件尾部长度16
接触件端接Crimp绝缘直径0.080to0.100in.
镀层厚度（通用）15µin (0.38µm)兼容外壳尺寸（如TM-700等）CPC 连接器, G 系列连接器, M 系列连接器
接触件表面处理 - 配合镍打底镀锡法兰上方插针尺寸1.57 mm [ .062 in ]
接触镀层厚度15

产品信息

备注包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。, 插入工具编号 91002-1（用于绝缘直径 1.78 [.07] 或更小），编号 200893-2（用于绝缘直径 最大 .09 [2.29]）卸出工具编号 305183。类型Stamped
等级Commercial连接器性别PIN
系列Multimate Type III制造商全称AMP
产品子类型Contacts端口数1 Port
应用细节Signal适用产品/相关产品CPC Connector, G Series Connector, M Series Connector
