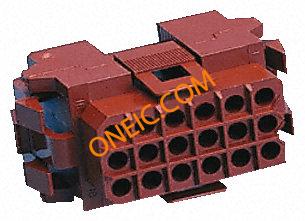

211149-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 25 POS 5.08mm ST Metrimate Connectors CONN RECEPT 25 POS METRIMATE Housing Drawer 25 way Pin Metrimate Pin & Socket Connectors 25P PIN HOUSING Conn Housing RCP 25 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 25ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, RECEPT 25 CONNECTOR,SOFTSHELL,METRIMATE,RECEPTACLE,25POSITION,STANDARDDRAWER TE Connectivity Metrimate 系列 5 行 5.08mm 节距 25 路 直 母 压接连接器外壳 PIN HSG,25 POSN,METRIMATE |
| 分类 |
商业参数
| 其他名称 | 2111491 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 196 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 40.77mm |
| 间距 | 5.08 mm | 宽度 | 30.78mm |
| 高度 | 30.78 mm | 长度 | 62.53mm |
| 重量 | 0.039 | 包装方式 | Bulk |
| 触头类型 | Pin | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 安装样式 | Panel |
| 排数 | 5 | 连接器样式 | Drawer |
| 连接器用途 | Drawer | 壳体材料 | Polyester |
| 总长度 | 62.53 mm | 安装特性 | Without |
| 主要材料 | InterconnectSystem | 连接器颜色 | :Black |
| 传感器连接器 | Without | 触点数 | 25 |
| 位数 | 25 | 中心触点表面处理 | 5.08 |
产品信息
| 备注 | Positions 1 & 25 should not be used with ground pin. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Metrimate |
| 产品特性 | Mating Guide | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Standard | 其他规格 | No |
| 适用产品/相关产品 | PCB Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
相关型号
66102-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG GOLD CRIMP Contact male crimp 24-20AWG Multimate Pin & Socket Connectors III+ PIN24-2015 Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,24-20,15AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,24-20,15AU/FL,STRIP
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE

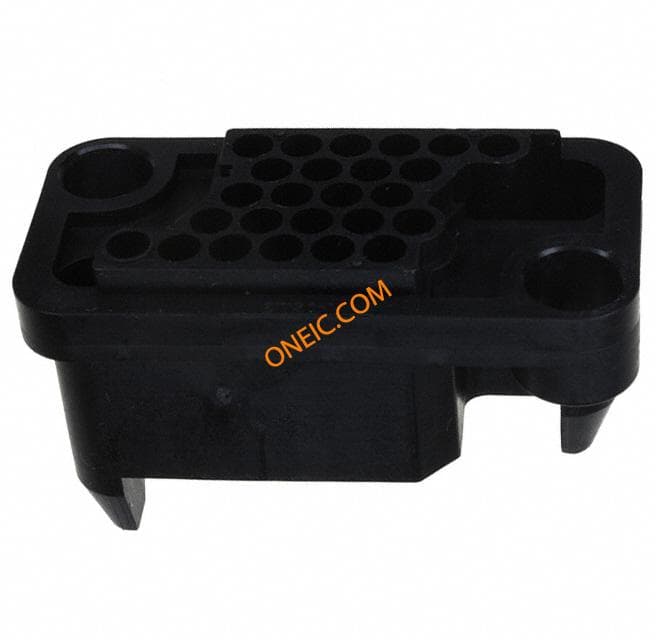

211150-1
