205042-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power M 12 POS ST Panel Mount 12 Terminal 1 Port M Series Connectors CONN PLUG 12POS PANEL MT M SERES Pin & Socket Connectors 12 PC. BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PC. BLOCK |
| 分类 |
商业参数
| 标准包装规格 | 88 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 88 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 1.8 kV | I/O高电平电压 | Yes |
| 额定交流电压 | 1800 | ||
机械参数
| 颜色 | Black | 间距 | 0.450" (11.43mm) |
| 宽度 | 28.19 mm [ 1.1098 in ] | 高度 | 65.91 mm [ 2.595 in ] |
| 长度 | 27.69 mm [ 1.0902 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 触点形式 | No |
| 触头类型 | Pin | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | High Voltage |
| 安装样式 | Panel | 排数 | 3 |
| 外壳材料（壳体） | 插头 | 连接器用途 | Plug |
| 壳体材料 | Phenolic | 安装特性 | None |
| 包装数量 | 88 | 面板安装类型 | 带有 |
| 端接样式 | 插针 | 触点数 | 12 |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | 标准 75 位硬件, 母端排 205043 |
| 中心触点材料 | No | 第一连接器安装类型 | Panel |
产品信息
| 备注 | 12 position connector uses standard 75 position hardware. | 类型 | Power |
| 连接器性别 | M | 系列 | M |
| 产品特性 | Jackscrew Socket | 产品子类型 | Connector |
| 适用/相关制造商 | Type XII | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
相关型号
1-200867-1
te connectivity / amp
Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW LONG FEMALE Pin & Socket Connectors JACKSCRW FEM ASSY Connector Accessories Female Jackscrew Kit Loose Piece Product Highlights:HardwareHardware Type = JackscrewFemaleJackscrew Type = TurnableJackscrew Style = LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SERIES "M" JACKSCREW FEM. ASSY
200868-1
te connectivity / amp

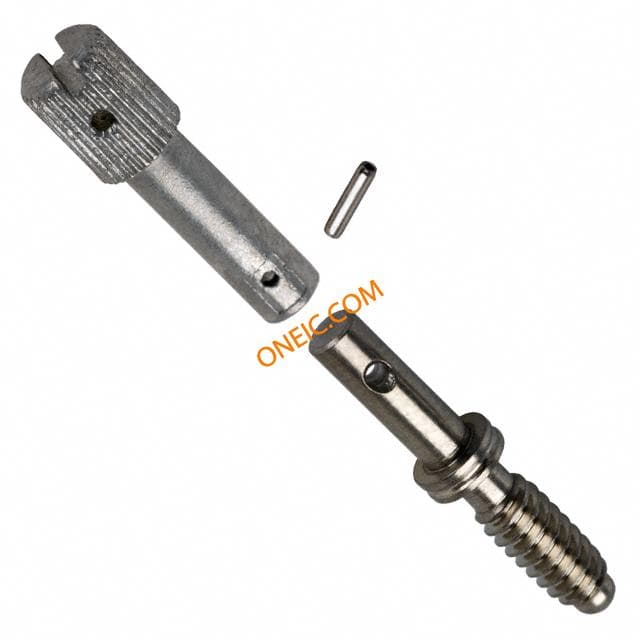

Connector Accessories Male Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW SHORT MALE Jackscrew Male M3.5 x 0.6 M Series Pin & Socket Connectors SER. M JACKSCREW M Connector Accessories Male Jackscrew Kit Loose Piece Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackscrewMaleM3.5x0.6MSeries TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉 公, 使用于标准连接器 SER. "M" JACKSCREW MALE ASSEM.
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE
201087-1
te connectivity / amp

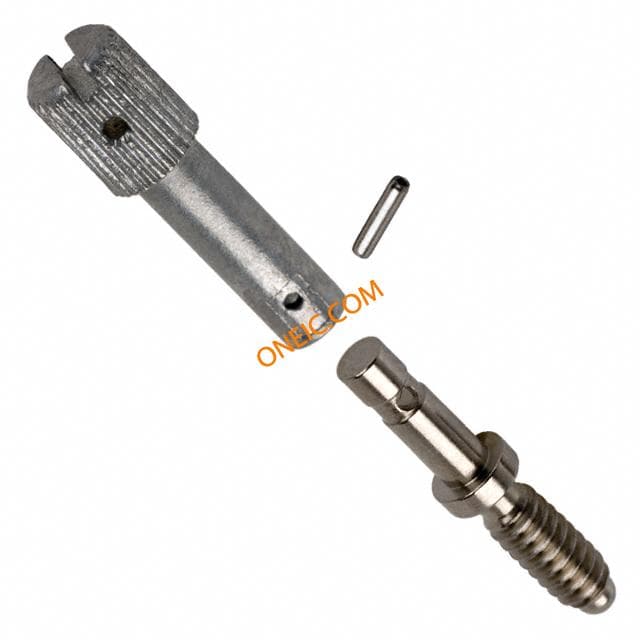

Connector Accessories Hardware Male Loose Piece M Series Connectors CONN JACKSCREW MALE SHORT Pin & Socket Connectors JACKSCREW - MALE Connector Accessories Hardware Male Loose Piece Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SERIES "M" JACKSCREW - MALE AS
202713-1
te connectivity / amp
Connector Accessories Shield Steel Nickel Pin & Socket Connectors 75P 2PC SHIELD ASSY M Series Connectors CONN SHIELD 75POS 2PC SHORT Connector Accessories Shield Steel Nickel Product Highlights:HardwareHardware Type = ShieldShort Shield Size180° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 75 Position 2 PC Short Shield Connector Accessory SERIES M 75 POS, 2 PC. SHIELD
201388-1
te connectivity / amp

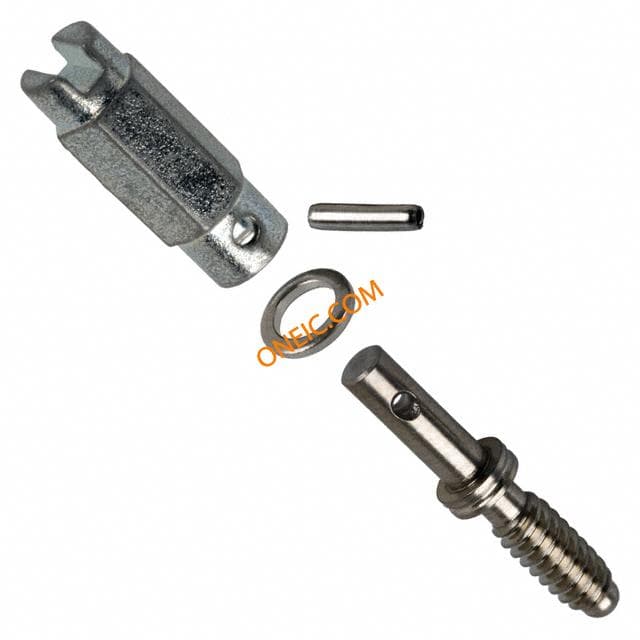

Connector Accessories Hardware Male Loose Piece Zinc Alloy M Series Connectors CONN JACKSCREW SHORT-SHORT MALE Jack Screw assy Kit Male M3.5 M series Pin & Socket Connectors JACKSCREW-MALE-SPEC. Connector Accessories Hardware Male Loose Piece Zinc Alloy Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = Short-ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackScrewassyKitMaleM3.5Mseries JACKSCREW-MALE-SPEC. TE Connectivity M系列 M3.5 x 0.6 插孔螺钉 公, 使用于配接连接器、分离配接连接器
201911-1
te connectivity / amp

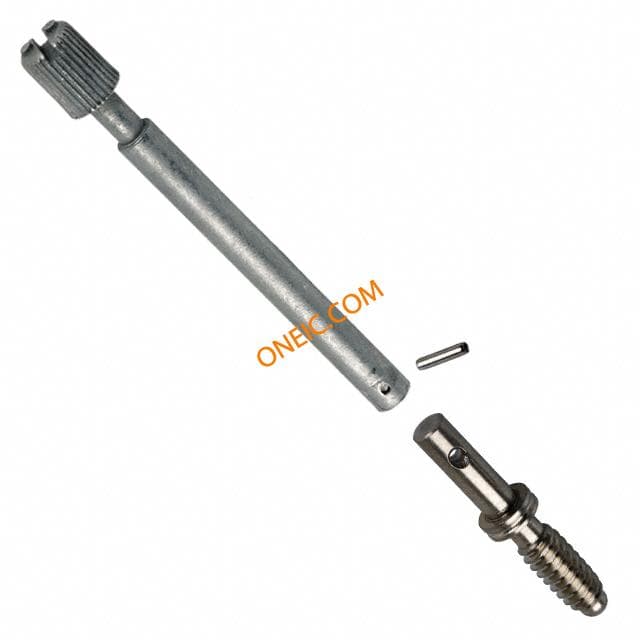

Connector Accessories Hardware Male Loose Piece Zinc Alloy M Series Connectors CONN JACKSCREW LONG-LONG MALE Pin & Socket Connectors JCKSCRW KIT M SERIES Connector Accessories Hardware Male Loose Piece Zinc Alloy Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = Long-LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JACKSCREW, 6-32, M SERIES JACKSCREW KIT
226537-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONTACT PIN COAX CRIMP GOLD Size 16 Male Circular Connector Contact, Crimp Pin & Socket Connectors COAXICON PIN CONTACT Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial CableCable Type = 178, 178A, 178B, 196, 196A, 196DBConnector Impedance = Non-Matched ?Search Keywords:RF, multi position, Contact;Pin;16;Coax;Gold;Commercial;Crimp;AMP;RoHS,ELVCompliants TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于CPC 和 G 系列以及 M 系列和 Metrimate 连接器 SUB MIN PIN MULTI MATE
202713-2
te connectivity / amp

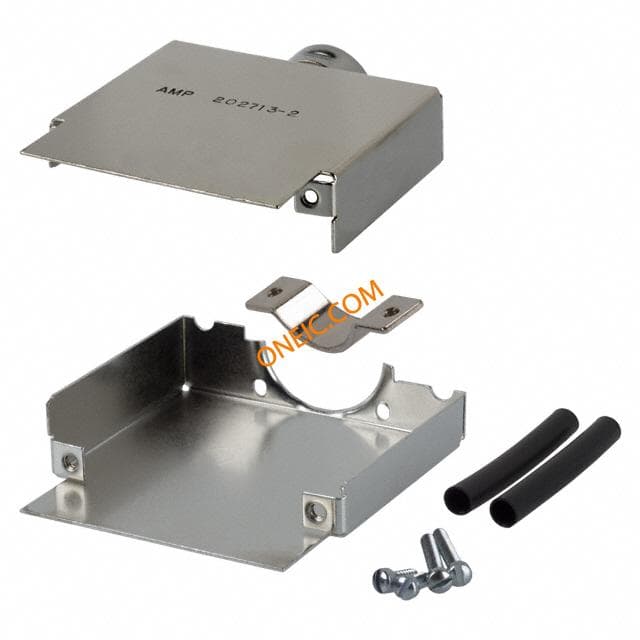

Connector Accessories 75 POS Shield Kit Carbon Steel Nickel Finish M Series Connectors CONN SHIELD 75POS 2PC LONG Pin & Socket Connectors 75POS 2PC SHIELD Connector Accessories 75 POS Shield Kit Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldLong Shield Size180° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Protection SERIES M 75 POS, 2 PC. SHIELD
226537-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount RF Connectors Contact Pin 26 AWG 30 AU Multiple Coaxial Contacts (COAXICON) CONN PIN COAX AWG26 SHIELD GOLD Size 16 Male Circular Connector Contact, Crimp RF Connectors / Coaxial Connectors Contact Pin 26 AWG 30 AU Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = 161, 174, 174DB, 179, 179A, 179B, 187, 187A, 187DB, 188, 188A, 316, Belden 9221, RD-316Wire/Cable Type = ShieldedSearch Keywords:RF, multi position, Contact;Pin;16;Coax;Gold;Commercial;Crimp;26AWG;Shielded;AMP 26 AWG Pin Shielded Wire Straight Body Style Multiple Coaxial Contact TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于CPC 和 G 系列以及 M 系列和 Metrimate 连接器 SUB MIN PIN MULTIMATE
205043-1
te connectivity / amp
Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount M Series Connectors CONN RECEPT HOUSING 12POS Pin & Socket Connectors 12 PL. BLOCK FEM Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PL. BLOCK FEM.
1-200871-0
te connectivity / amp
Connector Accessories Turnable Long Jackscrew Stainless Steel Loose Piece M Series Connectors CONN JACKSCREW LONG MALE Jackscrew Male M-Series Pin & Socket Connectors JACKSCREW MALE ASSY Connector Accessories Turnable Long Jackscrew Stainless Steel Loose Piece Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JACK SCREW KIT, M3.5, 43.26MM M SER CONN JackscrewMaleM-Series TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉, 使用于圆形连接器 SER. "M" JACKSCREW MALE ASSY
200870-1
te connectivity / amp

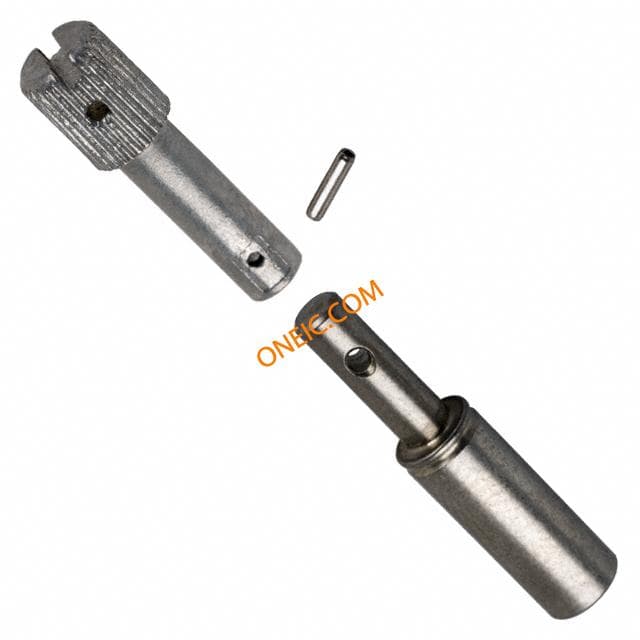

Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW SHORT FEMALE Jackscrew female M3.5 x 0.6 M Series Pin & Socket Connectors M' JKSCREW FEMALE Connector Accessories Female Jackscrew Kit Loose Piece Product Highlights:HardwareHardware Type = JackscrewFemaleJackscrew Type = TurnableJackscrew Style = ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackscrewfemaleM3.5x0.6MSeries TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉 母, 使用于标准连接器 SERIES"M" JACKSCREW FEMALE ASS
202711-1
te connectivity / amp

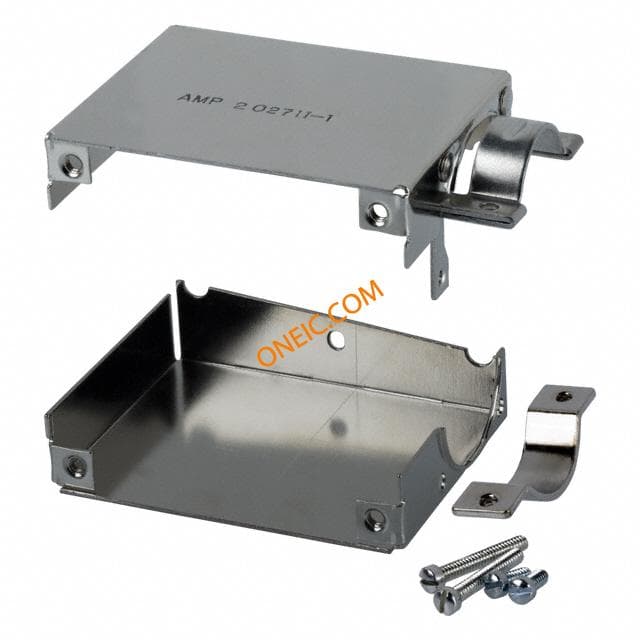

Connector Accessories 75 POS Hardware Shield Kit Steel Nickel Finish M Series Connectors CONN SHIELD 75POS 2PC SHORT Pin & Socket Connectors 75P SHIELD ASSY Connector Accessories 75 POS Hardware Shield Kit Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldShort Shield Size90° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SERIES 'M' 75 POS, SHIELD ASSM
207234-1
te connectivity / amp

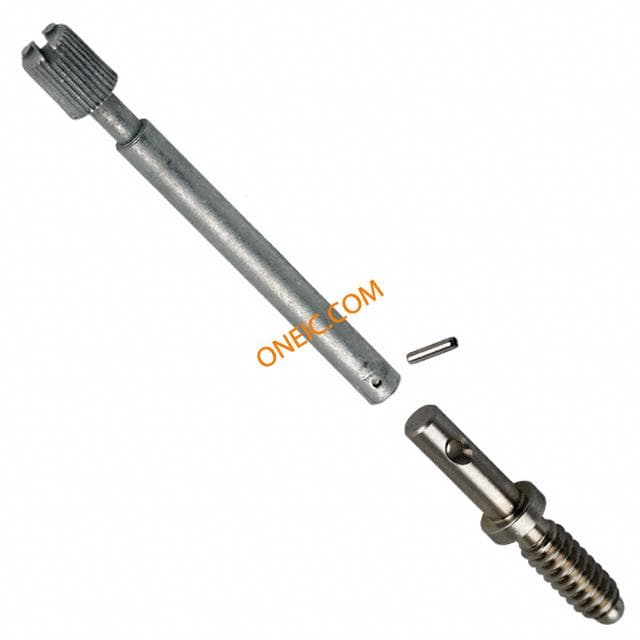

Connector Accessories JackScrew Kit Male Zinc Alloy Loose Piece M Series Connectors CONN JACKSCREW LONG-LONG MALE Pin & Socket Connectors M-SERIES JACKSCREW MALE ASSY Connector Accessories JackScrew Kit Male Zinc Alloy Loose Piece Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = Long-LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, UNASSM JS KIT,M SERIES
201389-1
te connectivity / amp

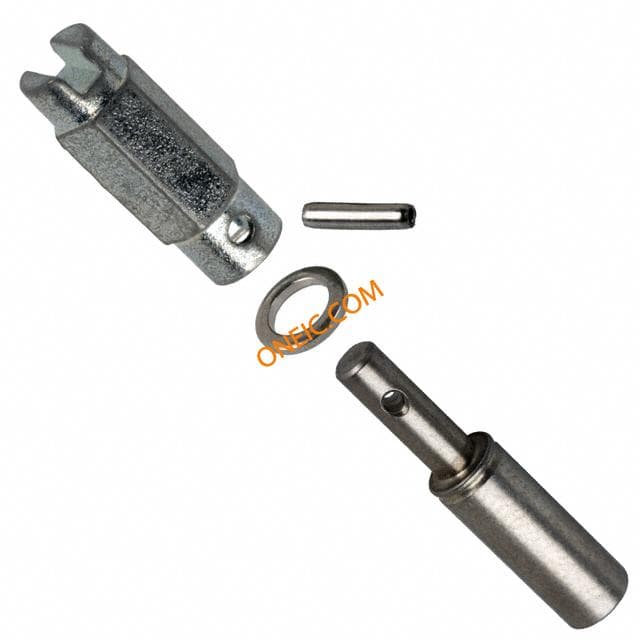

Connector Accessories Female Jackscrew Zinc Alloy Clear Chromate Finish Loose Piece M Series Connectors CONN JACKSCREW SHORT-SHORT FMALE Jackscrew Female M3.5 x 0.6 M Series Pin & Socket Connectors FEMALE JACKSCREW Connector Accessories Female Jackscrew Zinc Alloy Clear Chromate Finish Loose Piece Product Highlights:HardwareHardware Type = JackscrewFemaleJackscrew Type = TurnableJackscrew Style = Short-ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackscrewFemaleM3.5x0.6MSeries TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉 母, 使用于标准连接器 JACKSCREW-FEMALE -SPEC
202711-3
TE Connectivity / AMP

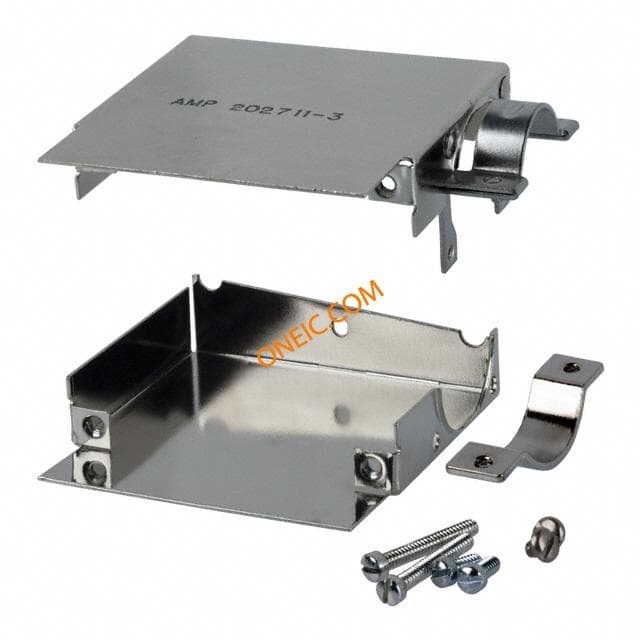

Pin & Socket Connectors 75P 2PC SHIELD ASSY M Series Connectors CONN SHIELD 75POS 2PC LONG
207235-1
te connectivity / amp

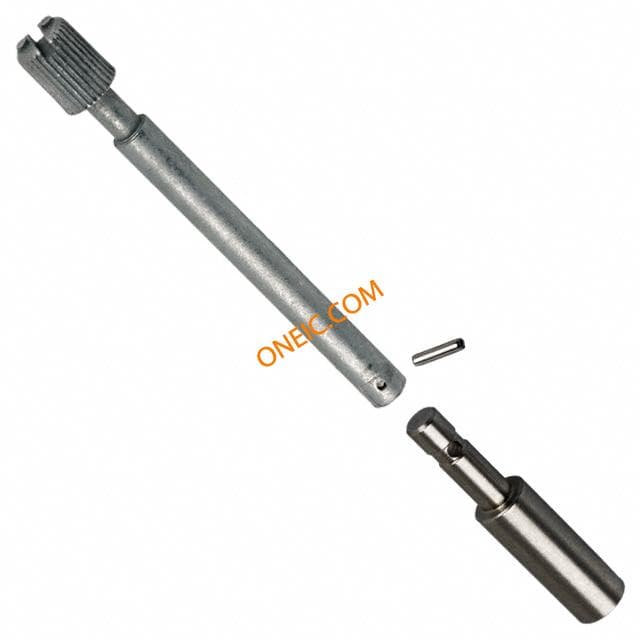

Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW LONG-LONG FEMALE Pin & Socket Connectors JCKSCRW KIT UNASSY Connector Accessories Female Jackscrew Kit Loose Piece Product Highlights:HardwareHardware Type = JackscrewFemaleJackscrew Type = TurnableJackscrew Style = Long-LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, UNASSM JS KIT,M SERIES
201088-1
te connectivity / amp

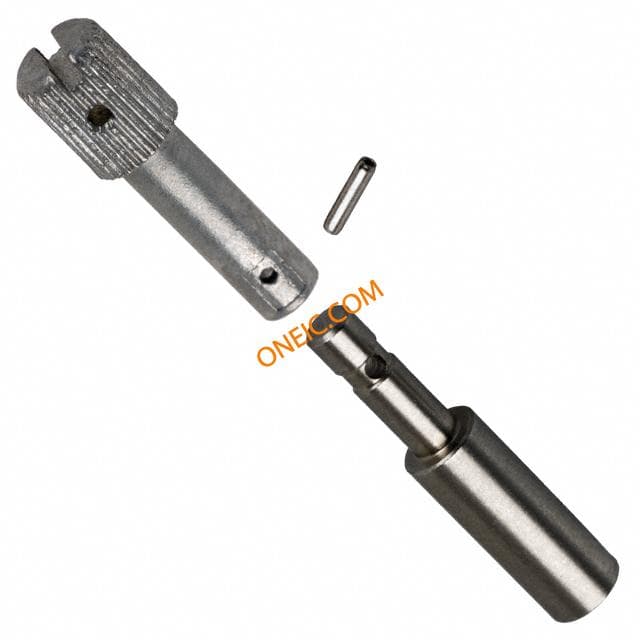

Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW SHORT FEMALE Jackscrew Female M-Series Pin & Socket Connectors JACKSCREW-FEMALE Connector Accessories Female Jackscrew Kit Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackscrewFemaleM-Series TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉, 使用于圆形连接器 SERIES"M" JACKSCREW-ASSY. FEMA
