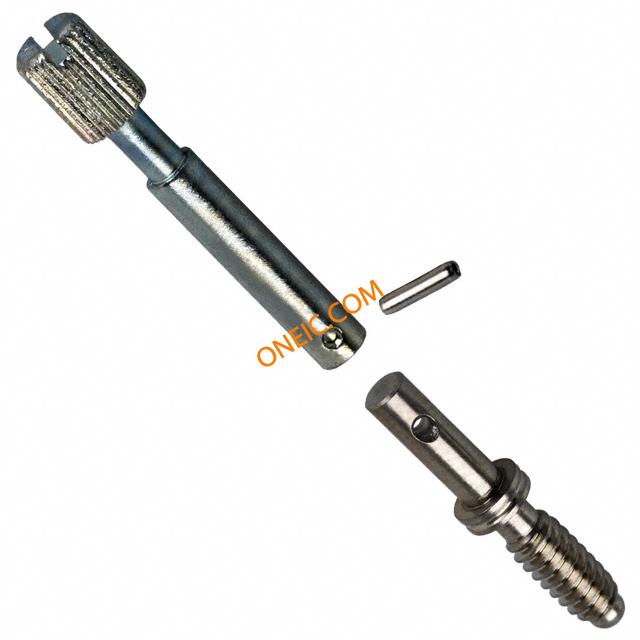

1-200871-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Turnable Long Jackscrew Stainless Steel Loose Piece M Series Connectors CONN JACKSCREW LONG MALE Jackscrew Male M-Series Pin & Socket Connectors JACKSCREW MALE ASSY Connector Accessories Turnable Long Jackscrew Stainless Steel Loose Piece Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JACK SCREW KIT, M3.5, 43.26MM M SER CONN JackscrewMaleM-Series TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉, 使用于圆形连接器 SER. "M" JACKSCREW MALE ASSY |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 间距 | 2.54 mm | 表面处理 | Zinc |
| 重量 | 0.009 | 涂层 | Non-Hexavalent Chromate |
| 材料（通用） | Steel | 包装方式 | Bulk |
| 头部高度 | :10.24mm | 螺纹尺寸 | 6-32 [M3.5 x 0.6] Double Thread, Double Lead |
| 螺纹长度 | Double | 接触镀层 | Zinc |
| 尖端材料（笔尖） | Stainless Steel | 安装样式 | Panel |
| 螺钉头类型 | Hex | 触头材料 | Stainless Steel |
| 总长度 | 43.26mm | 安装特性 | None |
| 包装数量 | Loose Piece | 第一触头极性 | Pin (Male) |
| 触点数 | 1 | 螺纹/螺钉/孔尺寸 | Turnable |
| 护套（绝缘）材料 | Zinc Alloy | 头部以下螺纹长度 | :43.26mm |
产品信息
| 备注 | Two required.; Used with 20, 26, 34, 41 and 50 position standard connectors.; U | 类型 | Jack Screw |
| 样式 | Long | 连接器性别 | Male |
| 系列 | M | 产品子类型 | Hardware |
| 硬件类型 | Jackscrew | 附件类型 | Jackscrew |
| 规格说明 | 6-32 Thread | 射频系列/标准 | 200871 |
| 适用产品/相关产品 | M Series | 适用/相关制造商 | Standard Connectors |
