205505-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular SKT 34 POS 3.8mm Wire Wrap ST Panel Mount Loose Piece M Series Connectors CONN RCPT POSTED 34POS PANEL MT M Series Connectors Product Highlights:Connector34 PositionsPhenolic - GF Housing MaterialHousing Gender = ReceptacleConnector Type = PostedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, AUTOWIRE KIT,34 POS,25 X 25 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 子类别 | Connector Rectangular |
| 标准包装规格 | 32 | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS non-compliant | 零件状态 | E28476 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL94 V-0 |
电气参数
| I/O高电平电压 | No | 连接器阻抗 | 线圈 |
机械参数
| 颜色 | Black | 间距 | 3.8 mm |
| 宽度 | 19.05 mm [ .75 in ] | 高度 | 23.24 mm [ .915 in ] |
| 长度 | 50.8 mm [ 2 in ] | 包装方式 | Loose Piece |
| 壳体颜色 | 黑色 | 电缆类型 | 绞线 |
| 导线线规 | 24 | 端接方式 | Wire Wrap |
| 触点形式 | Yes | 触头类型 | Wrap Type |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Posted | 接触镀层 | Tin-Lead |
| 排数 | 4 | 外壳材料（壳体） | 母端, 母端 |
| 壳体材料 | Phenolic | 安装特性 | None |
| 包装数量 | Loose Piece | 面板安装类型 | 带有 |
| 端接样式 | 公端, 插座 | 触点数 | 34 |
| 位数 | 34 | 兼容外壳尺寸（如TM-700等） | 插头组件 |
| 安装孔直径 | 带有 | 中心触点材料 | No |
| 端子柱长度 | 16.74 [0.659] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装类型 | Panel |
产品信息
| 类型 | Rectangular | 连接器性别 | RCP |
| 产品特性 | Mating Guide | 产品子类型 | Connector |
| 配置 | 0.64 x 0.64 [.025 x .025] | 应用细节 | Signal |
| 加载位置数 | All | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -55°C ~ 150°C |
相关型号
1-200867-1
te connectivity / amp
Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW LONG FEMALE Pin & Socket Connectors JACKSCRW FEM ASSY Connector Accessories Female Jackscrew Kit Loose Piece Product Highlights:HardwareHardware Type = JackscrewFemaleJackscrew Type = TurnableJackscrew Style = LongSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SERIES "M" JACKSCREW FEM. ASSY
202434-4
te connectivity / amp

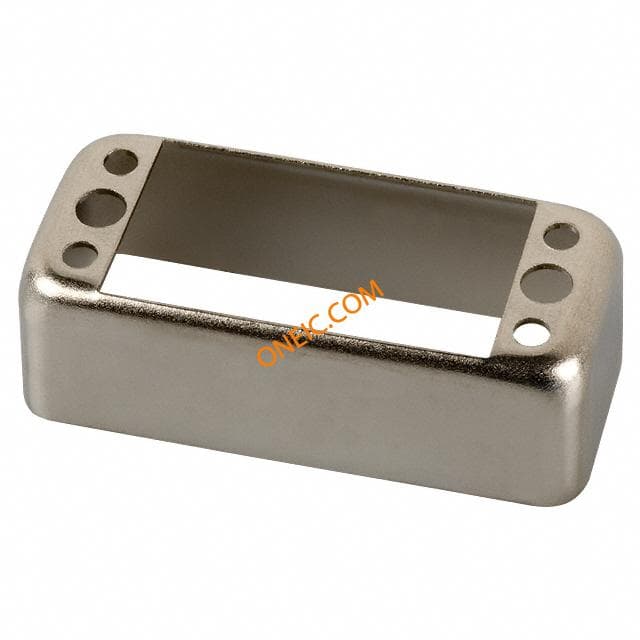

Connector Accessories 34 POS Pin Hood Loose Piece Carbon Steel Nickel Finish M Series Connectors CONN PIN HOOD INT 34POS PANEL MT Pin & Socket Connectors 34P PIN HOOD INTERNAL M Series Connectors Product Highlights:HardwareHardware Type = Pin HoodPin Hood Type = Internal Closed EndFlangelessMount = Panel MountSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 34 PL. PIN HOOD-INTERNAL
