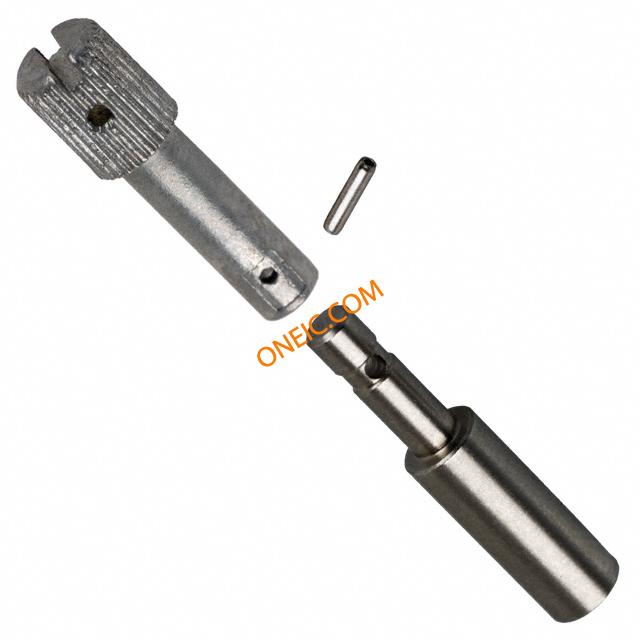

201088-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Female Jackscrew Kit Loose Piece M Series Connectors CONN JACKSCREW SHORT FEMALE Jackscrew Female M-Series Pin & Socket Connectors JACKSCREW-FEMALE Connector Accessories Female Jackscrew Kit Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JackscrewFemaleM-Series TE Connectivity M-系列 M3.5 x 0.6 插孔螺钉, 使用于圆形连接器 SERIES"M" JACKSCREW-ASSY. FEMA |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 宽度 | 7.92 mm [ .312 in ] | 表面处理 | Zinc |
| 高度 | 7.92 mm [ .312 in ] | 长度 | 43 mm [ 1.693 in ] |
| 涂层 | Clear Chromate | 直径 | 7.92 mm |
| 材料（通用） | Steel | 包装方式 | Bulk |
| 螺纹尺寸 | 6-32 [M3.5 x 0.6] Double Thread, Double Lead | 螺纹长度 | Single |
| 紧固类型 | 锁紧螺丝插针和锁紧螺丝尖端母端 | 尖端材料（笔尖） | Stainless Steel |
| 螺丝材料 | 短 | 螺钉头类型 | Hex |
| 壳体材料 | Zinc | 总长度 | 43mm |
| 安装特性 | None | 包装数量 | Loose Piece |
| 螺纹/无螺纹 | 可转动 | 兼容外壳尺寸（如TM-700等） | 12 位大电流连接器, 15、16 和 42 位混合连接器, 20 和 28 位高压连接器, 6、14、20、26、34、41、50、75 和 104 位柱形连接器, 6、14、20、26、34、41、50、75 和 104 位标准连接器 |
| 螺纹/螺钉/孔尺寸 | Turnable | 静电放电屏蔽 | 不带 |
| 护套（绝缘）材料 | Zinc Alloy | ||
产品信息
| 备注 | Two required.; Used with 12 position high current connectors.; Used with 20 and | 类型 | Jack Screw |
| 样式 | Short | 连接器性别 | Female |
| 系列 | AMPM | 产品子类型 | Hardware |
| 硬件类型 | Jackscrew | 附件类型 | Jackscrew |
| 规格说明 | 6-32 Thread | 射频系列/标准 | 201088 |
| 其他规格 | 透明铬酸盐 | 适用产品/相关产品 | M Series |
| 适用/相关制造商 | Standard Connectors | ||
