点击放大查看

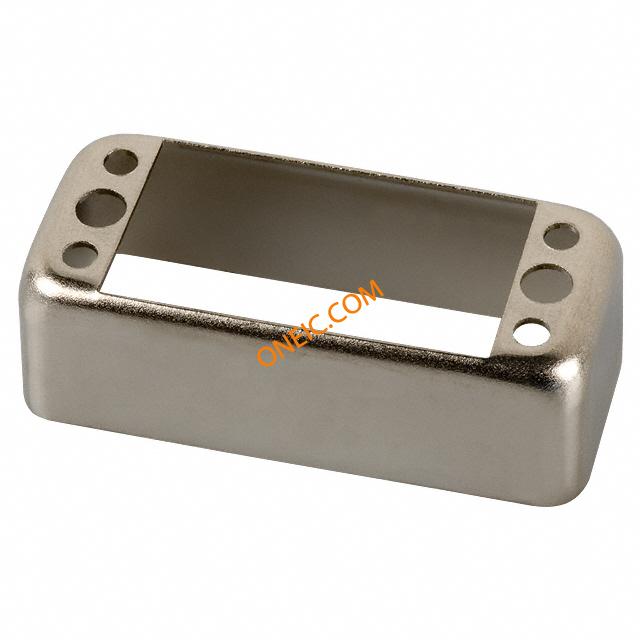

202434-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 34 POS Pin Hood Loose Piece Carbon Steel Nickel Finish M Series Connectors CONN PIN HOOD INT 34POS PANEL MT Pin & Socket Connectors 34P PIN HOOD INTERNAL M Series Connectors Product Highlights:HardwareHardware Type = Pin HoodPin Hood Type = Internal Closed EndFlangelessMount = Panel MountSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 34 PL. PIN HOOD-INTERNAL |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 宽度 | 22.35 mm [ .88 in ] | 高度 | 17.45 mm [ .687 in ] |
| 长度 | 54.1 mm [ 2.13 in ] | 镀层 | Nickel |
| 材料（通用） | Steel | 包装方式 | Bulk |
| 安装类型 | Panel Mount | 法兰特征 | No |
| 触头材料 | 内部闭端 | 安装特性 | None |
| 包装数量 | Loose Piece | 兼容外壳尺寸（如TM-700等） | 16 位混合连接器, 20 位高压连接器, 34 位柱形连接器, 34 位标准连接器 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Used with 20 position high voltage connectors.; Used with 34 position posted co | 类型 | Pin Hood |
| 挂钩类型 | Internal Closed End | 产品子类型 | Hardware |
| 硬件类型 | Pin Hood | 附件类型 | Hood |
| 射频系列/标准 | 202434 | 适用产品/相关产品 | M Series |
