点击放大查看

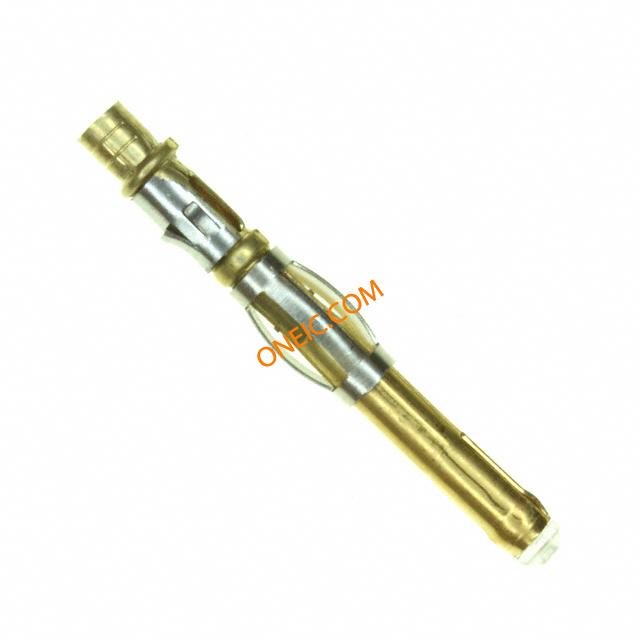

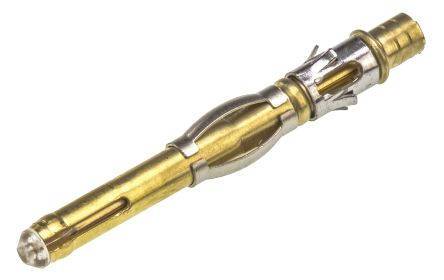

226537-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount RF Connectors Contact Pin 26 AWG 30 AU Multiple Coaxial Contacts (COAXICON) CONN PIN COAX AWG26 SHIELD GOLD Size 16 Male Circular Connector Contact, Crimp RF Connectors / Coaxial Connectors Contact Pin 26 AWG 30 AU Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = 161, 174, 174DB, 179, 179A, 179B, 187, 187A, 187DB, 188, 188A, 316, Belden 9221, RD-316Wire/Cable Type = ShieldedSearch Keywords:RF, multi position, Contact;Pin;16;Coax;Gold;Commercial;Crimp;26AWG;Shielded;AMP 26 AWG Pin Shielded Wire Straight Body Style Multiple Coaxial Contact TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于CPC 和 G 系列以及 M 系列和 Metrimate 连接器 SUB MIN PIN MULTIMATE |
| 分类 |
商业参数
| 产品 | Accessories | 产品类别 | RF Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 抗辐射加固 | No | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
| 绝缘电阻 | 5000 MOhms | 连接器类型 - 电压输入 | Crimp |
机械参数
| 长度 | 25.78mm | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线类型 | Shielded | 出线方向 | No |
| 电缆类型 | RG-161, RG-174, RG-174 Double Braid, RG-179, RG-179A, RG-179B, RG-187, RG-187A, RG-187 Double Braid, RG-188, RG-188A, RG-316, Belden 9221, RD-316 | 导线线规 | 26 AWG |
| 方向 | Straight | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 触头类型 | Coaxial | 基体材料 | Brass |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Connector Circular |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 外壳材料（壳体） | Brass per MIL-C-50 | 材料表面处理 | Gold |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 26AWG | 主要材料 | 直式 |
| 端接排数 | 压接 | 端接样式 | Solder |
| 第一触头极性 | PIN | 导体材料 | Beryllium Copper per QQ-C-533 |
| 触点数 | 1 POS | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 介电材料 | TPX |
| 镀层厚度（通用） | 30µin (0.76µm) | 中心触点表面处理 | 金 |
| 中心触点镀层工艺 | Gold (30) over Copper (100) | 中心触点材料 | 铍铜合金 |
| 供应商器件封装 | Straight | 接触镀层厚度 | 30µin (0.76µm) |
| 触点材料 - 配合 | Without | 线规或范围 - mm² | 0.12-0.15; [26] |
产品信息
| 备注 | A ferrule is required for each pin and socket.; Extraction Tool No. 305183 | 类型 | Machined |
| 等级 | Commercial | 连接器性别 | PIN |
| 极性 | Normal | 制造商全称 | AMP |
| 产品子类型 | Contact | 适用产品/相关产品 | CPC 和 G 系列以及 M 系列和 Metrimate 连接器 |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
