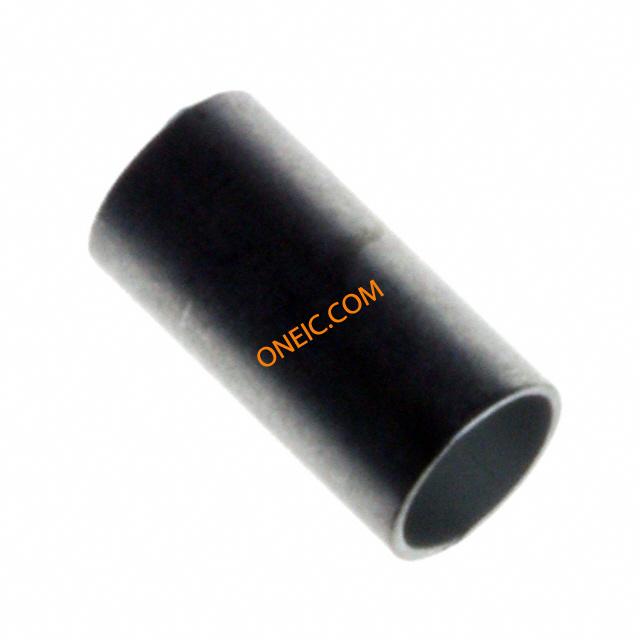

1-332056-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Cable Accessories CPC Ferrule Copper Multiple Coaxial Contacts (COAXICON) CONN FERRULE CPC COAXIAL Ferrule Sub Min Coaxicon RF Connector Accessories COAXICON FERRULE Cable Accessories CPC Ferrule Copper Product Highlights:FerruleCable Type = 161, 174, 179, 179A, 179B, 187, 187A, 188, 188A, 316, Belden 9221Ferrule Diameter = 2.84 mmWire Diameter = 2.84 mmSearch Keywords:RF, multi position, Ferrule;0.112in.;Copper;0.112in.Dia. Sleeve; 2.84mm TE Connectivity COAXICON 系列 13A 圆形 连接器 触芯, 使用于超微型印刷电路板插座 FERRULE, SUB MIN |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | RF Connector Accessories |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V 交流 | 最大额定电流 | 13A |
机械参数
| 颜色 | Silver | 长度 | 0.25mm |
| 重量 | 0.56 g | 直径 | 2.84(0.112)mm(Inch) |
| 材料（通用） | Copper, Tin Plated | 包装方式 | 纸箱 |
| 电缆类型 | Belden 9221, RG 161, RG 174, RG 179, RG 179A, RG 179B, RG 187, RG 187A, RG 188, | 绝缘类型 | Uninsulated |
| 导线线规 | 2.84 [0.112] | 本体表面处理 | Tin |
| 基体材料 | Copper | 行程角度 | Straight |
| 连接器类型 | Ferrule | 接触镀层 | BrightTin |
| 内径（孔径） | 2.84 [0.112] | 壳体镀层 | 锡 |
| 连接器用途 | sleeve | 插入件材料 | 铜 |
| 触头材料 | Copper | 套圈材料 | Copper |
| 总长度 | 0.250" | 包装数量 | 1 |
| 主要材料 | Uninsulated | 绝缘直径 | 0.112Inch |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器 | 线缆外径（最大） | 2.84mm |
产品信息
| SPG | 130 | 备注 | Extraction Tool No. 305183 |
| 类型 | Ferrule | 系列 | COAXICON |
| 制造商全称 | AMP | 产品子类型 | Ferrule |
| 附件类型 | Ferrule | 单元数量 | 1 |
| 专有名称 | COAXICON | 适用产品/相关产品 | CPC Connectors |
| 适用/相关制造商 | CPC Connectors | ||
环境参数
| 工作温度 | +125°C | ||
相关型号
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE

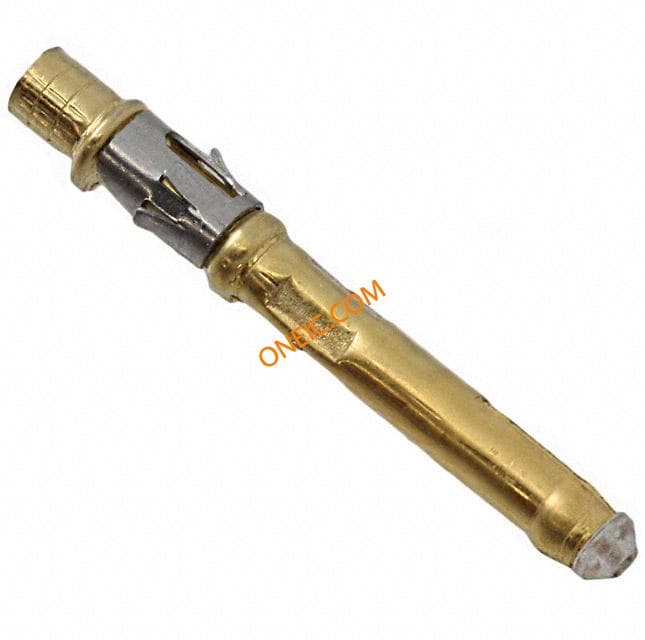

51563-8
