点击放大查看

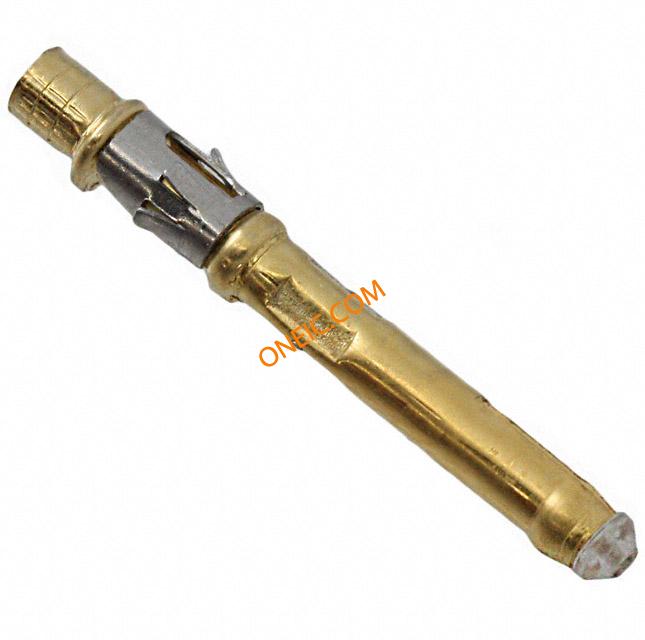

51563-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Solder ST Thru-Hole Strip Multiple Coaxial Contacts (COAXICON) CONN PIN STRGHT 30AU COAXIAL RF Connectors / Coaxial Connectors CONNECTOR Contact PIN Solder ST Thru-Hole Strip Product Highlights:ContactPinTerminate To Coaxial CableCable Type = RG 161, RG 174, RG 179, RG 179A, RG 179B, RG 187, RG 187A, RG 188, RG 188A, RG 316Body Style = StraightSearch Keywords:RF, multi position, SUB MIN SHORT PIN LP |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | 515638 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
机械参数
| 包装方式 | Bulk | 电缆类型 | RG 161, RG 174, RG 179, RG 179A, RG 179B, RG 187, RG 187A, RG 188, RG 188A, RG |
| 电缆组 | RG-161, 174, 179, 187, 188, 316 | 端接方式 | Solder |
| 触头类型 | Coaxial | 外壳表面处理 | 金 |
| 安装类型 | Free Hanging (In-Line) | 插针或插孔 | Pin |
| 连接器类型 | Connector RF | 接触镀层 | Gold |
| 安装样式 | Through Hole | 触头材料 | Brass |
| 壳体材料 | 黄铜 | 面板安装类型 | 直式 |
| 主要材料 | 直式 | 端接样式 | Crimp |
| 接触件端接 | Solder | 介电材料 | 聚甲基戊烯 |
| 中心触点表面处理 | 金 | 兼容外壳尺寸（如TM-700等） | 插针 |
| 供应商器件封装 | Coaxicon | 接触镀层厚度 | 30µin (0.76µm) |
| 中心导体直径 | 0.038" (0.97mm) | 触点材料 - 配合 | Without |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 产品特性 | Retention Latches | 制造商全称 | AMP |
| 产品子类型 | Contact | 连接类型 | Coaxial Cable |
