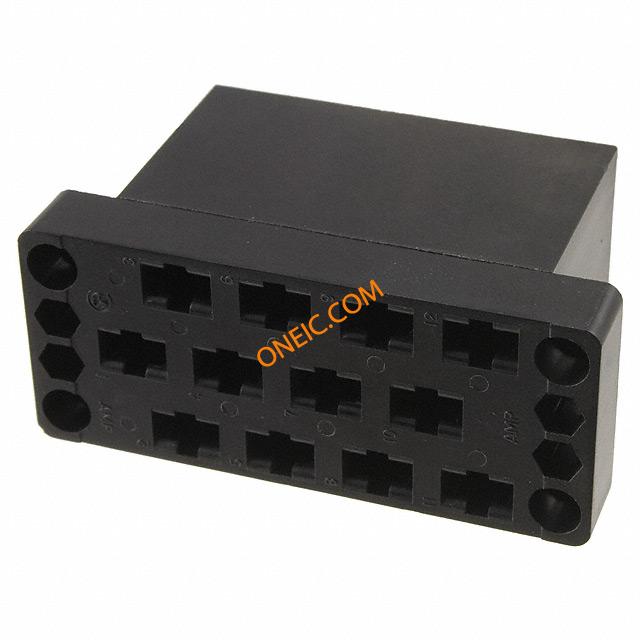

205043-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount M Series Connectors CONN RECEPT HOUSING 12POS Pin & Socket Connectors 12 PL. BLOCK FEM Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PL. BLOCK FEM. |
| 分类 |
商业参数
| 交货时间 | 63 Days | 子类别 | Connector Rectangular |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 225 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 1.8 kV | I/O高电平电压 | Yes |
| 额定交流电压 | 1800 | ||
机械参数
| 颜色 | Black | 间距 | 0.450" (11.43mm) |
| 宽度 | 28.19 mm [ 1.1098 in ] | 高度 | 65.91 mm [ 2.595 in ] |
| 长度 | 38.1 mm [ 1.499 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 触点形式 | No |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | High Voltage | 接触镀层 | Gold |
| 安装样式 | PCB | 排数 | 3 |
| 外壳材料（壳体） | 母端, 母端 | 连接器用途 | Receptacle |
| 壳体材料 | Phenolic | 安装特性 | None |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 18 | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 插头排 205042, 标准 75 位硬件 | 中心触点材料 | No |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | 12 position connector uses standard 75 position hardware. | 连接器性别 | Receptacle |
| 系列 | M | 产品特性 | Jackscrew Socket |
| 产品子类型 | Connector | 适用/相关制造商 | Type XII |
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
