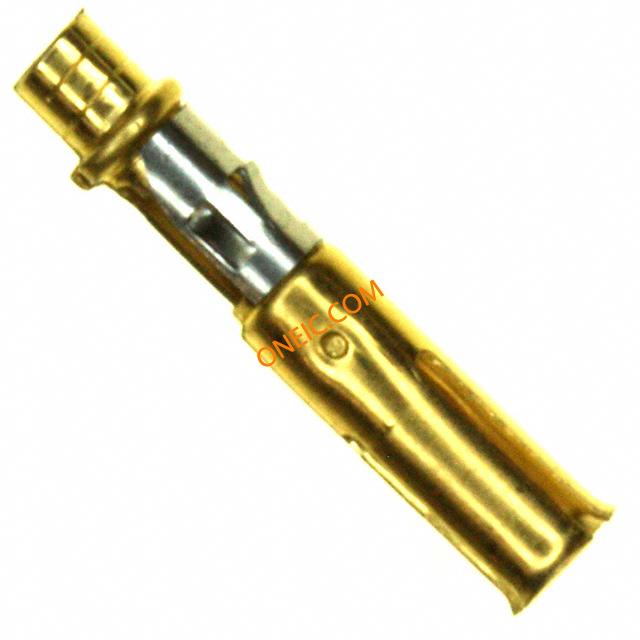

51565-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multiple Coaxial Contacts (COAXICON) CONTACT SKT COAX CRIMP GOLD RF Connectors / Coaxial Connectors SUB MIN SOCKET Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketTerminate To Coaxial CableCable Type = RG 178, RG 178A, RG 178B, RG 196, RG 196DB, RG 196AConnector Impedance = Non-Matched ?Search Keywords:RF, multi position, CONTACT, SOCKET, 30-26AWG, CRIMP Contact;Socket;16;Coax;Gold;Commercial;Crimp;AMP;RoHS,ELVCompliants SUB MIN SOCKET |
| 分类 |
商业参数
| 产品 | Contacts | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 阻抗 | Non-Matched | 绝缘电阻 | 5000 MOhms |
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 电缆类型 | RG 178, RG 178A, RG 178B, RG 196, RG 196DB, RG 196A | 本体表面处理 | Gold |
| 方向 | Straight | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Power |
| 基体材料 | Brass | 插针或插孔 | Socket |
| 外壳镀层 | Gold (30) over Nickel (50) | 连接器类型 | Connector RF |
| 接触镀层 | Gold Over Nickel | 外壳材料（壳体） | Brass per MIL-C-50 |
| 触头材料 | Brass | 端接样式 | Solder |
| 第一触头极性 | :Socket | 导体材料 | Brass per QQ-B-626 |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 介电材料 | TPX | 镀层厚度（通用） | 30µin (0.76µm) |
| 外壳尺寸-插件 | :16 | 中心触点镀层工艺 | Gold (30) over Nickel (50) |
| 供应商器件封装 | CPC, G Series, M Series, Metrimate | 触点材料 - 配合 | Without |
产品信息
| 备注 | A ferrule is required for each pin and socket. | 类型 | Coaxial |
| 等级 | Commercial | 连接器性别 | SKT |
| 系列 | :- | 制造商全称 | AMP |
| 产品子类型 | Contact | 连接类型 | Coaxial Cable |
| 射频系列/标准 | Multiple | 适用产品/相关产品 | :CPC, G Series, M Series, Metrimate Connectors |
相关型号
206837-3
te connectivity / amp
Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Standard Circular Connector PLG ASSY SIZE 23 24P CPC Connectors CONN CPC PLUG 24POS W/O SOCKET Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SIZE 23-24
69690-2
te connectivity / amp
Connector Accessories D-Sub Die Insert Punches & Dies DIE SUB MIN COAXICON TOOL DIE SUB MIN COAXICON DIE SUB MIN
201302-3
te connectivity / amp
Conn Housing RCP 41 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN RECEPTACLE BLOCK HSG 41 POS Pin & Socket Connectors 41P RECPT B/K HOUS M Series Connectors Product Highlights:Housing41 PositionsDiallyl Phthalate Housing MaterialHousing Gender = ReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
69656-2
te connectivity / amp
Coaxial Contacts Tool Hand Tools STR ACT DAHT COAXICON STR ACT DAHT COAXICON STR ACT DAHT
201355-1
te connectivity / amp
Conn Housing PL 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 14POS BLACK Housing plug 14 way M series Pin & Socket Connectors MALE BLOCK 14 PL. Conn Housing PL 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 14WAY InterconnectPlugHousing;Phenolic;Black;Standard;14;AmpBrand,MSeries TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 公 压接连接器外壳 MALE BLOCK 14 PL.
206837-1
te connectivity / amp
Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24
200837-2
te connectivity / amp
Conn Housing PL 34 POS 3.81mm Crimp ST Loose Piece Pin & Socket Connectors 34 POS CONN M Series Connectors CONN HOUSING PLUG 34 POS BLACK M Series Connectors Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK 34 PL.

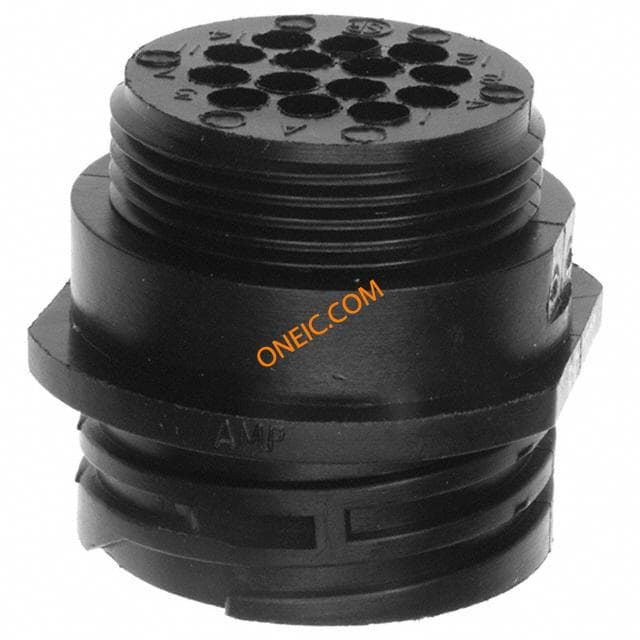

206043-5
te connectivity / amp
Conn Sealed CPC SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN RECEPT CPC 14POS REV SER 1 ConnectorHousing,CPCRecept.Assy,14Pos Standard Circular Connector RECEPTACLE 17-14 Conn Sealed CPC SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;14Pos;Sz17;Series1;FreeHang;RevSex TE Connectivity Series 1 系列 14路 自由悬挂 直向 连接器 插座 , 母触点, 螺纹接合 CPC RECPT ASSEMBLY SIZE 17-14
200512-2
te connectivity / amp
Conn Housing RCP 26 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 26POS BLACK Housing 26 way Receptacle M Series Pin & Socket Connectors FEMALE BLOCK 26 PL. Conn Housing RCP 26 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 26Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CONNECTOR,SOFTSHELL,M-SERIES,RECEPTACLE,26POSITION,MINIATURE,PHENOLIC,B TE Connectivity M 系列 29.209mm 节距 26 路 直 母 电缆安装 压接连接器外壳 FEMALE BLOCK 26 PL.

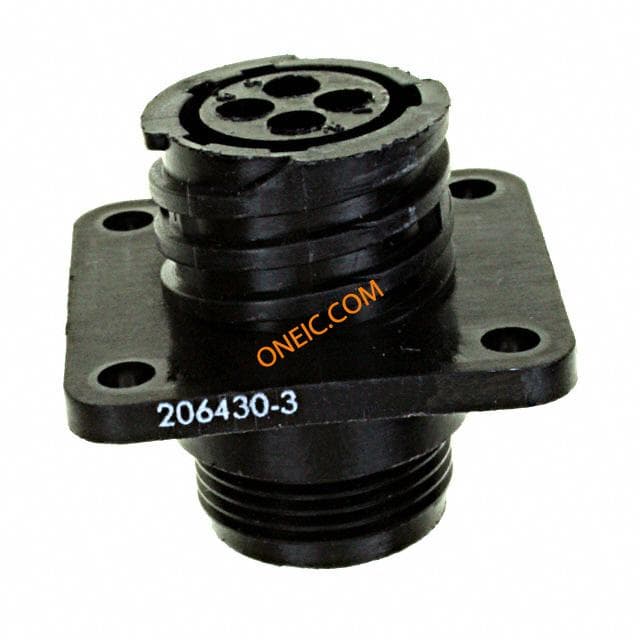

206430-3
te connectivity / amp
Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS REV SER 1 Connector; CPC; 4; Receptacle; Wire; 11; All Plastic; 5/8 in. - 24 UNEF-2A Standard Circular Connector RECEPTACLE 4 PIN shell size 11 Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL ConnectorHousing;CPCRecept.Assy;4Pos.;Sz11;Series1;PanelMnt;RevSex Receptacle CPC Special Series 1 Poles=4, accepts female contacts / with flange / sealed, 206430-3, TE Connectivity CPC RECPT ASSEMBLY SIZE 11-4
225088-1
te connectivity / amp
Cable Accessories Ferrule Barrier Terminal Blocks FERRULE Multiple Coaxial Contacts (COAXICON) CONN FERRULE CABLE 196DB TIN FERRULE FERRULE Search Keywords:RF, multi position,
202516-1
te connectivity / amp
Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port M Series Connectors CONN HOUSING COAXI SKT 42POS BLK Pin & Socket Connectors 42 POS FEM RECP BLOC Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialReceptacleConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS FEM RECP BLOCK
1-332057-0
te connectivity / amp
Cable Accessories Ferrule Copper Tin Multiple Coaxial Contacts (COAXICON) CONN FERRULE CPC AWG26-30 SOLID RF Connector Accessories FERRULE COAXICON SUB Cable Accessories Ferrule Copper Tin Product Highlights:FerruleCable Type = 178, 178A, 178B, 196, 196AWire/Cable Type = Solid, StrandedWire Range = 0.05-0.15 [30-26] mm [AWG]Ferrule Diameter = 2.84 mmSearch Keywords:RF, multi position, Contact;MultipleCoaxial;26,28,30AWG;AMPBrand;CPCConnectors FERRULE COAXICON SUB-MIN
211769-1
te connectivity / amp
Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS REV SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 17 Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, PANEL, SIZE 17, 9WAY ConnectorHousing;CPCReceptacle;9Pos;Sz.17;Series1;PanelMount;RevSex Connector: circular; Series: CPC Series 1; socket; female; PIN:9 Female receptacle series CPC 9-pin CPC 1 9P Female 17, 211769-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 母触点 17-9 CPC RECEPT REV SEX
206837-2
te connectivity / amp
Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS SIZE 23 Standard Circular Connector CPC PLUG SZ 23-24 SMALL PACK Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:Not Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = PlugSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG,SZ 23-24,SMALL PACK
213801-1
te connectivity / amp
Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series and V.35 Connectors CONN RCPT HOUSING 34POS VERT BLK Pin & Socket Connectors M-SER REC HSG 34 POS Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES RCPT HOUSING,34 POS
206430-1
te connectivity / amp
Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS REV SER 1 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector RECEPTACLE 4 PIN shell size 11 Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 4WAY ConnectorHousing;CPCReceptacle;4Pos.;Sz.11;Series1;PanelMnt;RevSex Connector: circular; Series: CPC Series 1; socket; female; PIN:4 Receptacle CPC1 Poles=4, accepts female contacts / with flange, 206430-1, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 母触点 RECPT, SZ 11-4, CPC

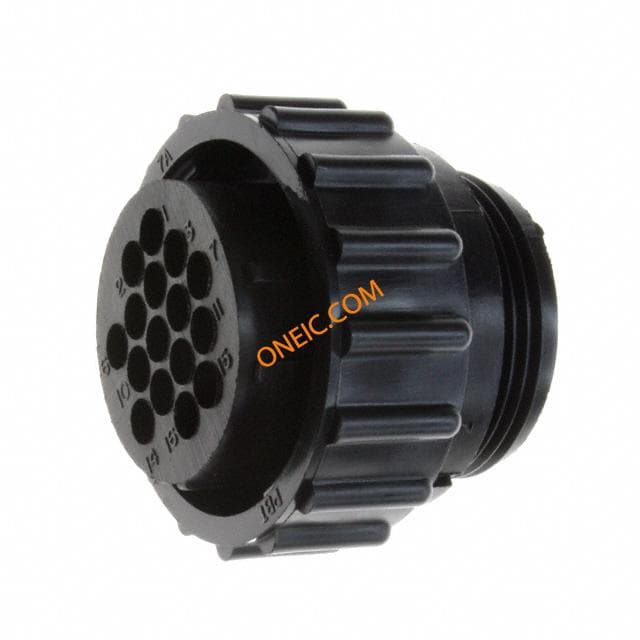

206037-1
