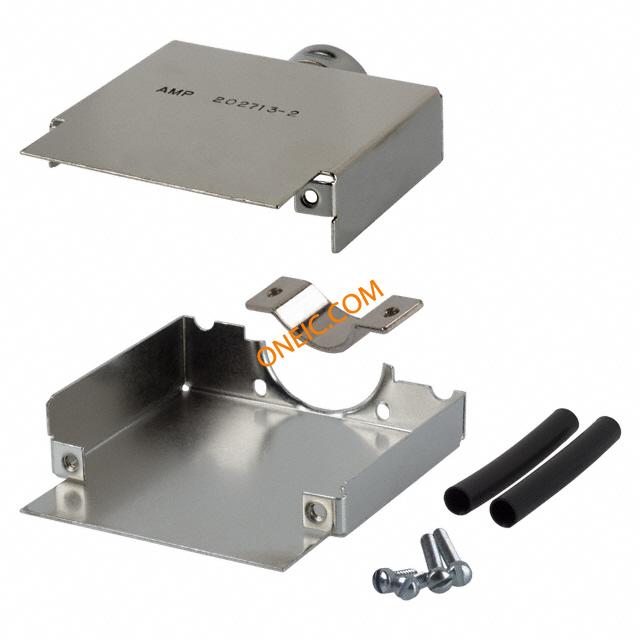

202713-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 75 POS Shield Kit Carbon Steel Nickel Finish M Series Connectors CONN SHIELD 75POS 2PC LONG Pin & Socket Connectors 75POS 2PC SHIELD Connector Accessories 75 POS Shield Kit Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldLong Shield Size180° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Protection SERIES M 75 POS, 2 PC. SHIELD |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 连接器阻抗 | 180° | ||
机械参数
| 宽度 | 30.35 mm [ 1.195 in ] | 高度 | 30.35 mm |
| 长度 | 84.5 mm [ 3.327 in ] | 重量 | 0.1 kg |
| 材料（通用） | 碳钢 | 包装方式 | Bulk |
| 螺纹尺寸 | 4-40 | 接触镀层 | Nickel |
| 紧固类型 | 螺钉和夹具 | 连接器用途 | protection |
| 触头材料 | Steel | 壳体材料 | Steel |
| 总长度 | 69.27 mm | 包装数量 | 1 |
| 第一触头极性 | Socket (Female) | 外径 | 25.4 mm [ 1 in ] |
| 触点数 | 120 | 兼容外壳尺寸（如TM-700等） | 12 位大电流连接器, 28 位高压连接器, 75 位标准连接器 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| SPG | 1 | 类型 | Shield |
| 系列 | M | 产品子类型 | Receptacle Housings |
| 硬件类型 | 屏蔽层套件 | 附件类型 | Shield |
| 规格说明 | Metal, 75 Positions | 单元数量 | 1 |
| 射频系列/标准 | 202713 | 适用产品/相关产品 | M Series |
文档与媒体
相关型号
201310-1
te connectivity / amp

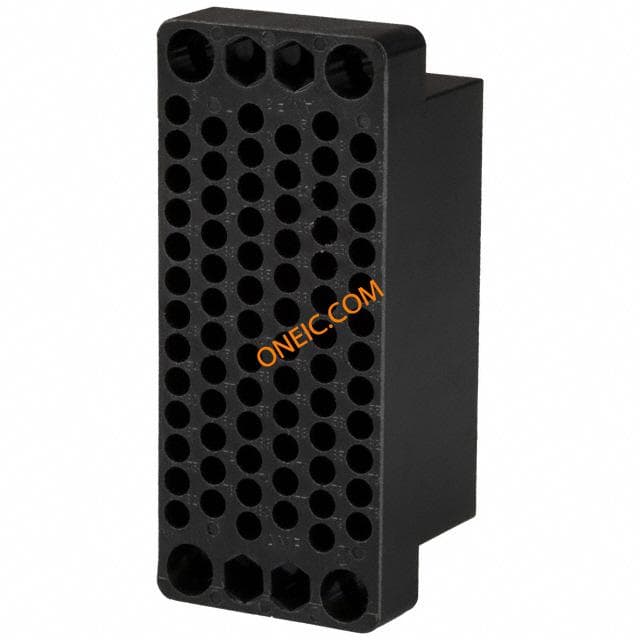

Conn Housing PL 75 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 75POS BLACK Connector,M series block,male,75 Way Pin & Socket Connectors MALE BLK 75P RCPT Conn Housing PL 75 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 75Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 75WAY MSERIESBLOCK,MALE,75WAY null TE Connectivity M 系列 6 行 3.81mm 节距 75 路 直 公 压接连接器外壳 MALE BLOCK 75 PL.-MIN RECT.
201311-1
te connectivity / amp
Conn Housing RCP 75 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 75POS BLACK Connector,M series block,female,75 Way Pin & Socket Connectors 75P M RECEPT HSG Conn Housing RCP 75 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 75Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Connector,Mseriesblock,female,75Way TE Connectivity M 系列 6 行 3.81mm 节距 75 路 直 母 压接连接器外壳 FEMALE BLOCK MIN. RECT.
205042-1
te connectivity / amp
Conn Power M 12 POS ST Panel Mount 12 Terminal 1 Port M Series Connectors CONN PLUG 12POS PANEL MT M SERES Pin & Socket Connectors 12 PC. BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PC. BLOCK
205690-2
te connectivity / amp
Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port M Series Connectors CONN RECEPT BLOCK 28POS M SERIES Pin & Socket Connectors SOC BLOCK 28 POS SPL RECEPT BLOCK 28 POS Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SOC.BLOCK28POS.SPL. null SOC. BLOCK 28 POS. SPL.
205689-2
te connectivity / amp
Conn Housing PL 28 POS 6.35mm ST M Series Connectors CONN PLUG 28 POS PANEL MT BLACK Pin & Socket Connectors PIN BLOCK 28 POS SPL PLUG 28P PNL MNT BLK Conn Housing PL 28 POS 6.35mm ST Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, PINBLOCK28POS.SPL. PIN BLOCK 28 POS. SPL.
201310-3
te connectivity / amp
Conn Housing PL 75 POS 3.81mm ST Loose Piece Ethernet & Telecom Connectors MALE BLOCK. 75 PL. MIN. RECT. M Series Connectors CONN PLUG BLOCK 75POS BLUE Modular Connectors / Ethernet Connectors MALE BLOCK. 75 PL. MIN. RECT. Conn Housing PL 75 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 75Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK. 75 PL.-MIN. RECT.
205043-1
te connectivity / amp
Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount M Series Connectors CONN RECEPT HOUSING 12POS Pin & Socket Connectors 12 PL. BLOCK FEM Conn Rectangular SKT 12 POS 11.43mm ST Panel Mount Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PL. BLOCK FEM.
201311-3
te connectivity / amp

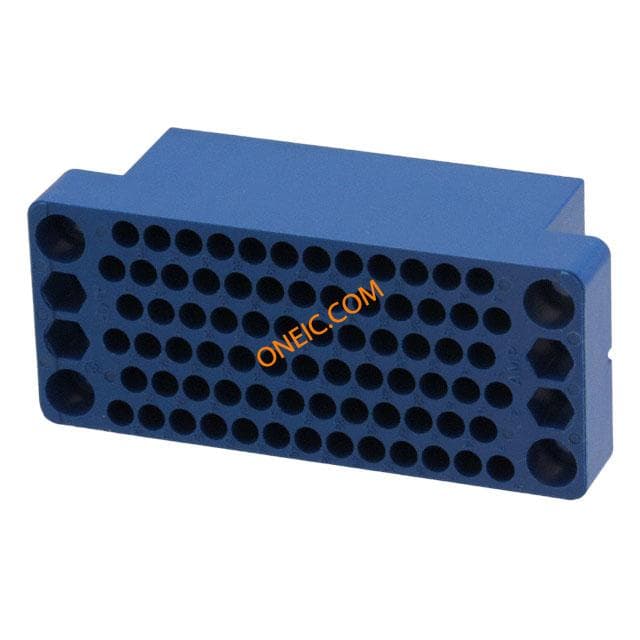

Conn Housing RCP 75 POS 3.81mm ST Loose Piece M Series Connectors CONN RCPT HOUSING 75POS BLUE Pin & Socket Connectors FEM BLOCK MIN RECT 75 POS RECPT Conn Housing RCP 75 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 75Diallyl Phthalate Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, FEMALE BLOCK MIN. RECT.
