点击放大查看

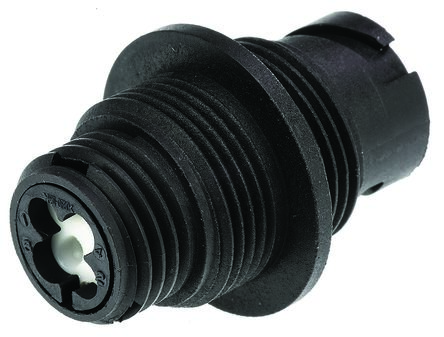

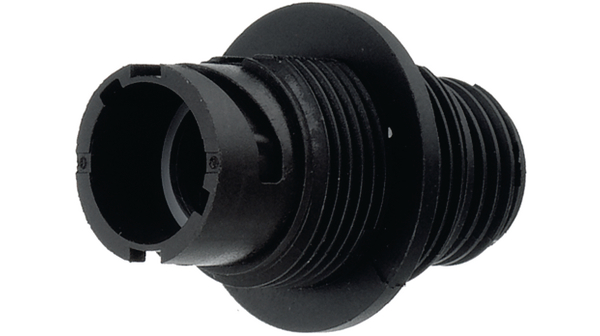

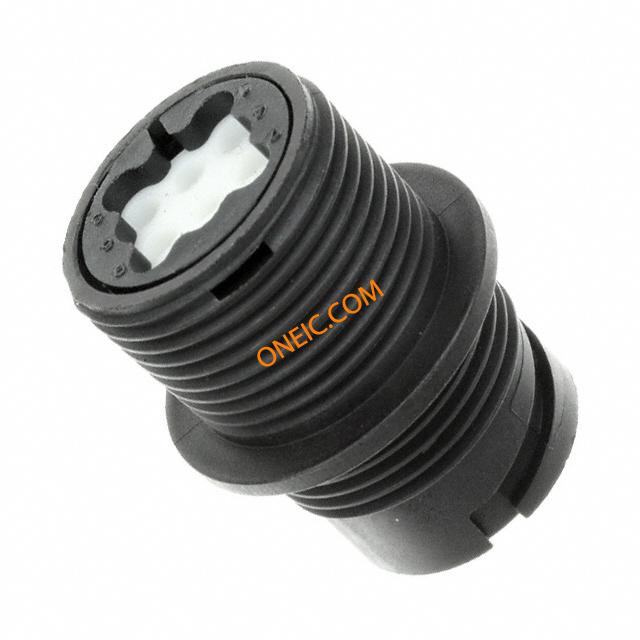

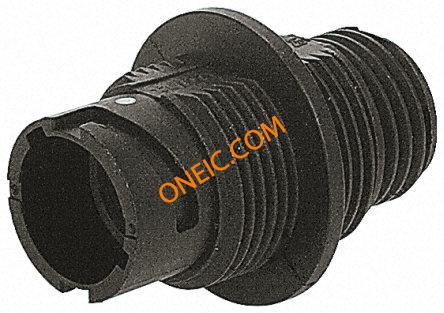

1445816-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS ST Miniature CPC (Circular Plastic Connector) CONN RECEPT 11-9POS PANEL MOUNT 9 Pole Female Straight Industrial & Automation Circular Connector Standard Circular Connector PNL MOUNT RECPT 11-9 Conn Housing RCP 9 POS ST Product Highlights:HousingReceptacleShell Size = 11Number of Positions = 9Mount Style = PanelSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector RECEPTACLE, PANEL MOUNT, 11-9 Connector;MiniCPC;Sealed;Receptacle;9Pos.;ShellSz.11;IP67;Flange Device socket, Mini CPC 9-pin Poles=9, 1445816-3, TE Connectivity TE Connectivity 9路 直向 连接器 插座 RECPT,11-9,FLNG MT,STD KEY |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V ac | 工作电压 | :600VAC |
| 最大额定电流 | 7A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 24 mm | 重量 | 0.006 |
| 包装方式 | Bulk | 外壳尺寸 | 11 |
| 导线线规 | 18 AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin Lead over Nickel | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 插入角度 | :11-9 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 29 mm |
| 主要材料 | CircularPlasticConnector | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 9 |
| 绝缘直径 | 1.50 â 2.39 [0.059 â 0.110] | 位数 | 9 |
| 外壳尺寸-插件 | 11-9 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CPC |
| 制造商全称 | MiniCPC | 产品子类型 | Housing |
环境参数
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
