点击放大查看

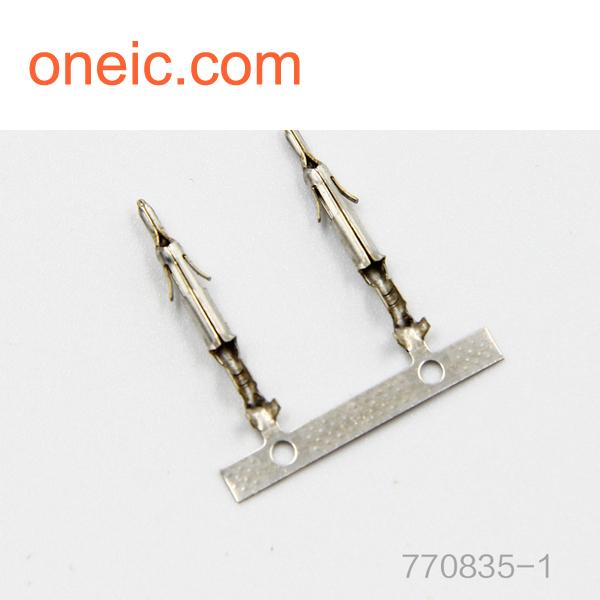

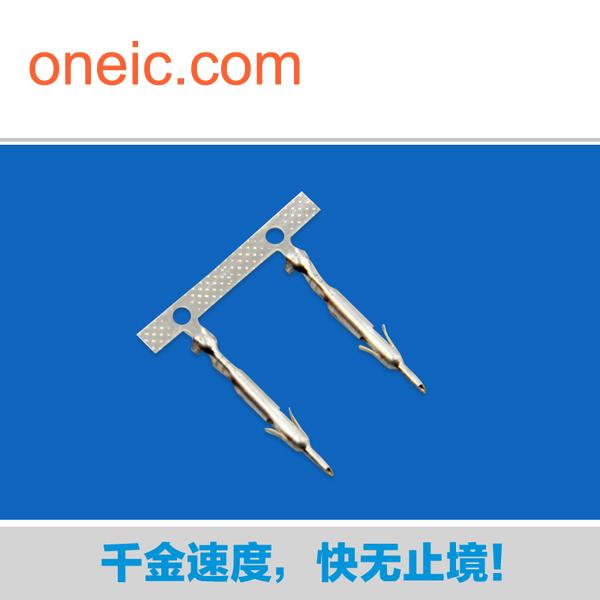

770835-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 26-30AWG PRE-TIN CRIMP Mate-n-lok,contact,pin,0.05-0.15mm² Pin & Socket Connectors CONTACT 45A Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, PLUG, 30-26AWG Mate-n-lok,contact,pin,0.05-0.15mm² TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN SN |
| 分类 |
商业参数
| 其他名称 | A25667CT | 产品类别 | Pin & Socket Connectors |

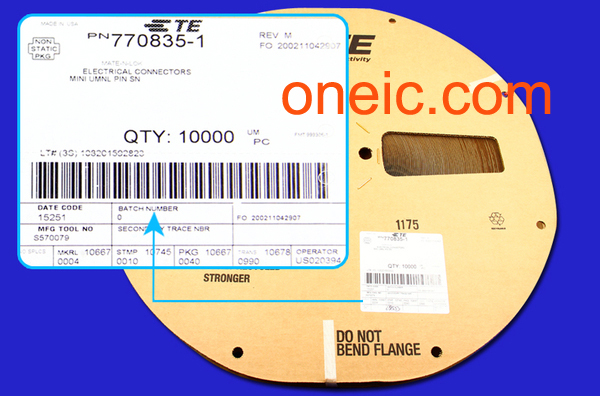

| 标准包装数量 | Tape & Reel | 工厂包装数量 | 10000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 9.5mΩ |
| 最大额定电流 | 9.5 A | ||
机械参数
| 重量 | 0.005 | 镀层 | Tin |

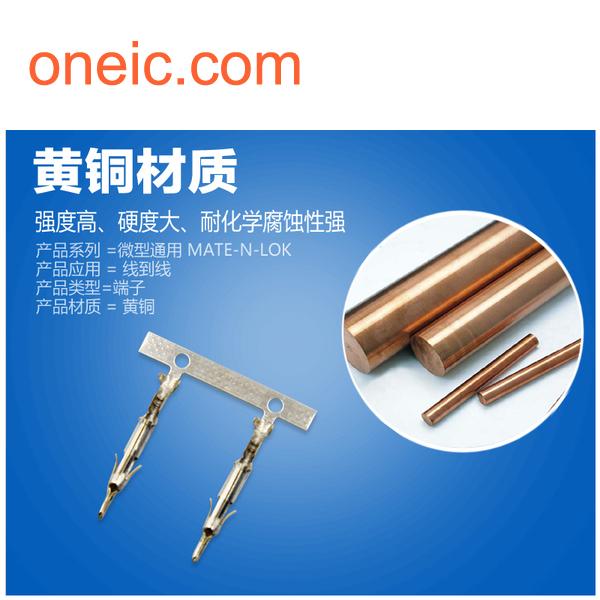

| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 重量（g） | 9.7 | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 线规或范围 - AWG | 30-26 |
产品信息
| 名称 | 端子 | 类型 | Stamped |
| 单位 | PCS | 连接器性别 | PIN |
| 系列 | :Mini-Universal MATE-N-LOK | 数量 | 40000.0 |
| 产品子类型 | Contacts | 制造国家 | 中国 |
| 设备部件号 | 770835-1.pdf | 最小起订量 | 1 |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Plugs, Cap Housings | ||
环境参数
| 工作温度 | +105°C | 可用温度范围 | -55to+105°C |
| 结工作温度 | 105°C | ||
