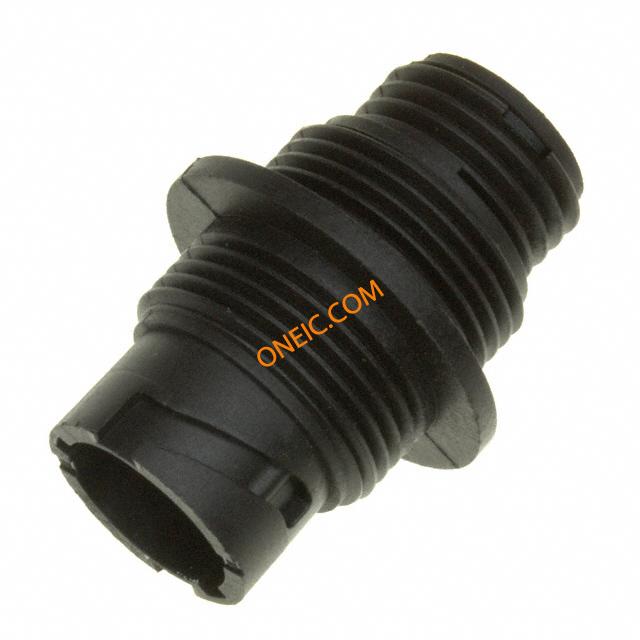

1445537-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS ST Standard Circular Connector RCPT SIZE 8 3 POS FLNG MT STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-3POS PANEL MOUNT Conn Housing RCP 3 POS ST Product Highlights:HousingReceptacleShell Size = 8Number of Positions = 3Mount Style = PanelSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CPC MINI RCPT, SZ 8, 3 POS, PANEL REC,8-3,FLNG MT,LG INS,STD KEY |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳尺寸 | 8 | 导线线规 | 18 AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 插入角度 | :8-3 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 3 |
| 绝缘直径 | 1.50 â 2.39 [0.059 â 0.110] | 位数 | 3 |
| 外壳尺寸-插件 | 8-3 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mini CPC |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
