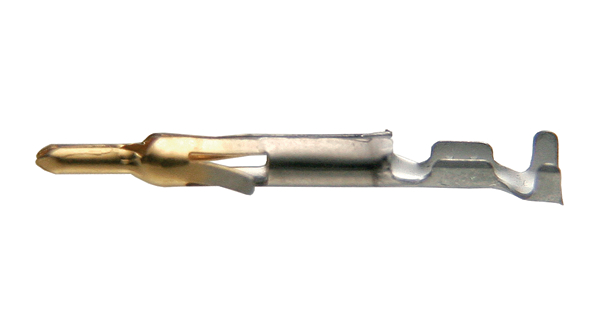

1-770987-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Contact,crimp,pin,mini Matenlok,22-18awg Pin & Socket Connectors PIN CONTACT 22-18AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 22-18AWG MINI-UNIVM-N-LLP,MINIUMNLPIN22-18AWGAULP MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact Crimp pin 9.5 A Male 22...18 AWG, 1-770987-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU LP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 3.81 mm | 间距 | Not Required mm |
| 重量 | 0.02 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触点尺寸 | :18 | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | 26-22 | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 端口数 | 1 Port |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
