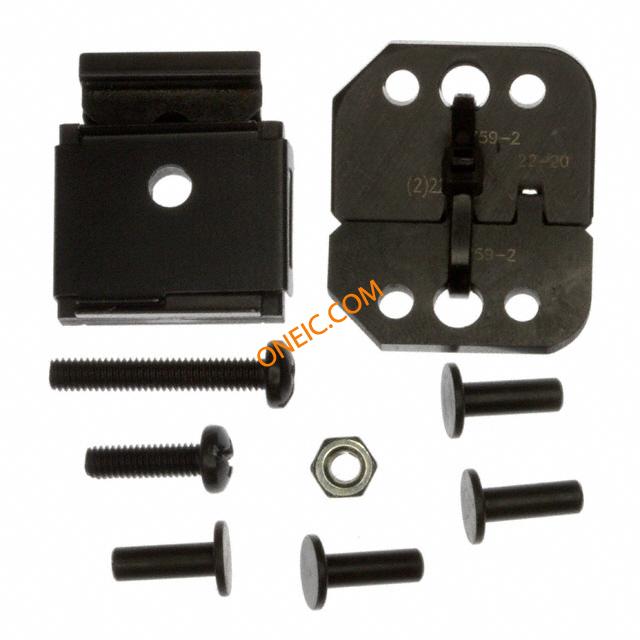

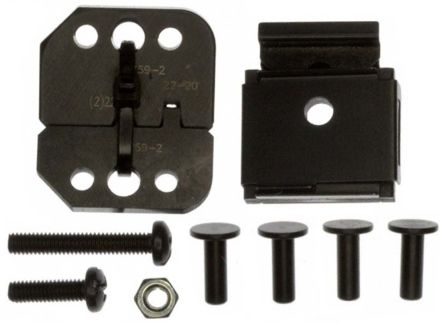

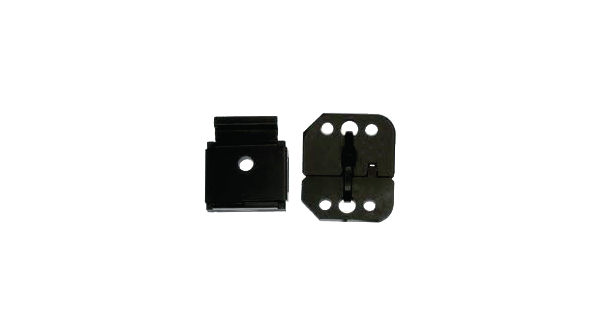

90759-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Hand Tool Assembly With Die Assembly Punches & Dies DIE 22-18 AWG DIE SET FOR PRO-C III 22-20,18 Connector Accessories Crimp Hand Tool DIE SET, MINI UNIVERSAL DIE,PRO-CRIMPER,MINIUNIVERSALMATE-N-LOK Crimp die set 22...18 AWG, 90759-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 20 AWG，18 AWG，22 AWG 线规格 PROCRIMP DIE MINI UNIV MNL |
| 分类 |
商业参数
| 产品 | Dies | 交货时间 | 21 Days |
| 子类别 | Assembly Tools | 产品类别 | Punches & Dies |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85412900 |
机械参数
| 重量 | 0.05 | 导线线规 | :0.40mm² |
| 主要材料 | DieSet | 配接方向 | :D-sub Pins and Sockets |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | :1.0mm² |
产品信息
| 类型 | Hand Tool | 系列 | :SDE |
| 功能 | Tool for crimping terminals | 工具类型 | Die Set |
| 兼容工具 | 354940-1, 679304-1, 1213890-1, 1213890-2, 1490076-2, 9-1478240-0 | 适用产品/相关产品 | Rectangular Contacts, 18-22 AWG |
文档与媒体
相关型号

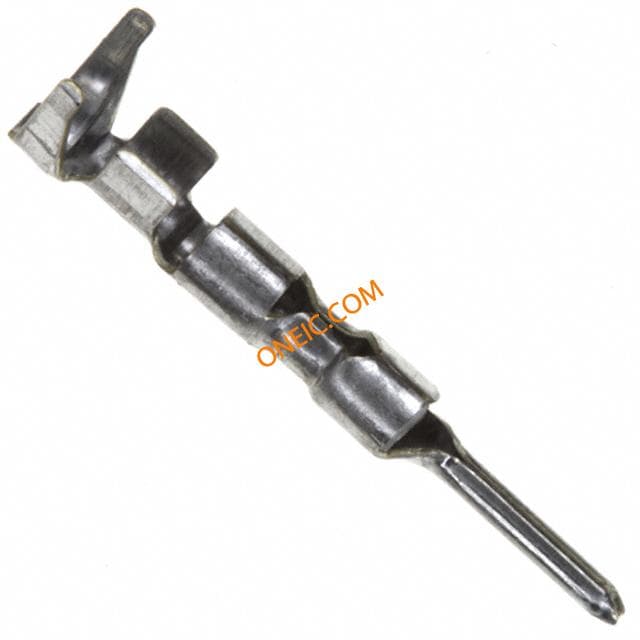

794228-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG TIN CRIMP Contact,crimp,pin,mini Matenlok,22-18awg Pin & Socket Connectors PIN CONTACT 22-18AWG Tin Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 0.3-0.8MM CONTACT, PIN, 22-18AWG, CRIMP MINIUMNL2LP,MINIUMNL2PIN22-18AWGSNLP Crimp pin 9.5 A Male 22...18 AWG, 794228-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接触点, 压接, 镀锡触点 MINI UMNL2 PIN 22-18 AWG SN LP

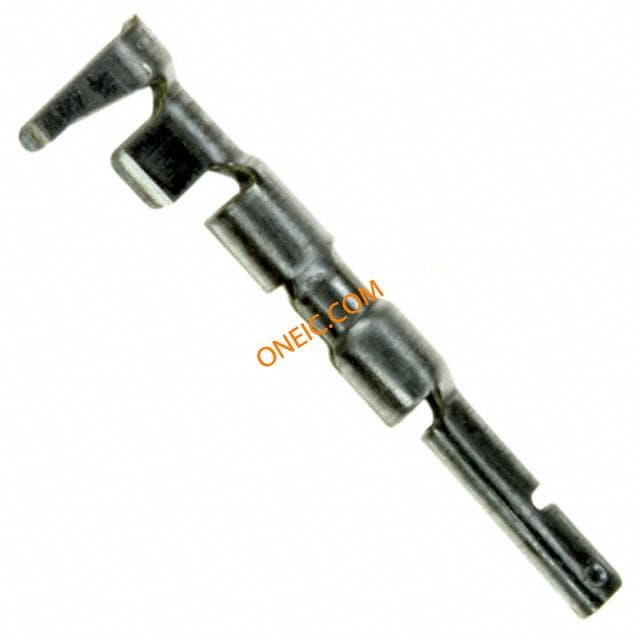

794229-1
