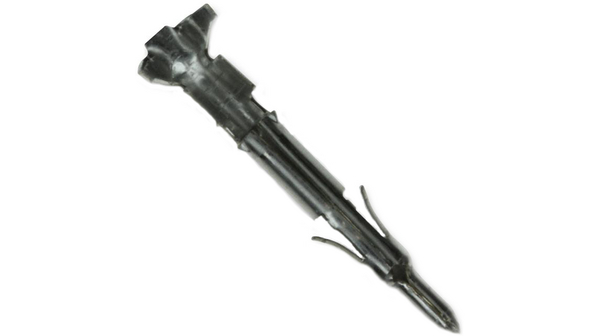

170360-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG M-U-MNL TIN Contact,crimp,pin,Mate-n-lok,22-18awg Power to the Board SOCKET 20-14AWG Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18 AWG, CRIMP CONTACT, CRIMP, PIN, 22-18AWG, REEL CONTACT,PIN,MINI-UNIVERSALMATE-N-LOK,22-18AWG Contact; male; 0.3÷0.89mm2; 18÷22AWG; Mini Universal MATE-N-LOK Crimp pin 9.5 A Male 18...22 AWG, 170360-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 UNIV M-N-L PIN 22-18 AWG |
| 分类 |
商业参数
| 其他名称 | A97686CT | 零件号别名 | 320568 |
| 产品类别 | Power to the Board | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 3.6 mm | 间距 | Not Required mm |
| 重量 | 0.004 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 包装数量 | 1 | 连接器 - 电缆 | contact |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 线规或范围 - AWG | 22-18 | 线规或范围 - mm² | :0.59mm² |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | :Mini Universal MATE-N-LOK |
| 产品子类型 | Contacts | 适配器系列 | Mini Universal MATE-N-LOK |
| 端口数 | 1 Port | 单元数量 | 1 |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
