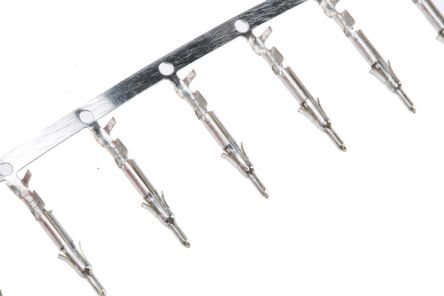

170359-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG MINI U MNL TIN Contact,crimp,pin,Mate-n-lok,26-22awg Power to the Board PIN 26-22 REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP CRIMP PIN, MATE-N-LOK, 22-26 AWG MIN-UMNLCONTSTP-ID,UNIVM-N-LPIN26-22AWG TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 UNIV M-N-L PIN 26-22 AWG |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 2.8 mm | 间距 | Not Required mm |
| 高度 | 2.9 mm | 重量 | 0.000001 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 17.5 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 线规或范围 - AWG | 26-22 |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | :Mini-Universal MATE-N-LOK | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Plug or Cap Housings | ||
