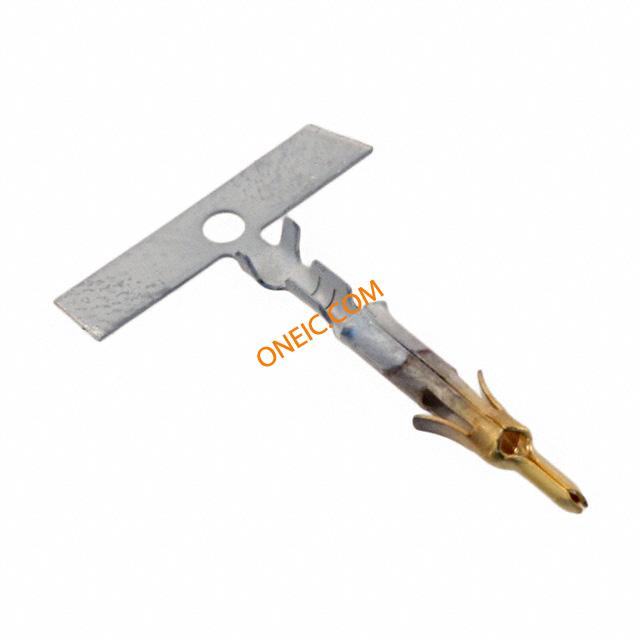

点击放大查看
1-794059-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONTACT PIN 26-30AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 30-26AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 30-26AWG, CRIMP 26-30 AWG Pin Crimp Mini-Universal MATE-N-LOK?Connector Crimp pin 9.5 A Male 30...26 AWG, 1-794059-0, TE Connectivity MINI UMNL PIN L/P LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | :30AWG |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Housings | ||
