点击放大查看
170363-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG M-U MNL GOLD IP67 gold/tin lead pin contact,26-22awg Power to the Board PIN 26-22 BR/AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22 AWG, CRIMP IP67gold/tinleadpincontact,26-22awg MATE-N-LOK 26-22 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UNIVERSAL M-N-L PIN LP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 2.8 mm | 间距 | Not Required mm |
| 高度 | 2.9 mm | 重量 | 0.01 |
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |

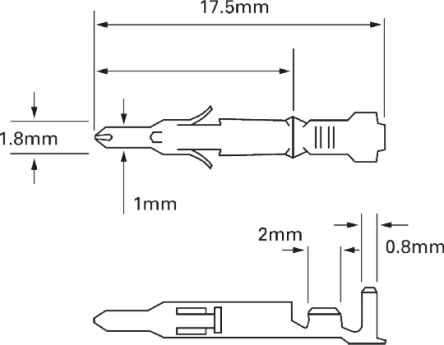

| 总长度 | 17.5 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | 26-22 | 线规或范围 - mm² | :0.35mm² |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | :Mini-Universal MATE-N-LOK | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Housings | ||
环境参数
| 工作温度 | 105°C | 可用温度范围 | -20to+105°C |
| 结工作温度 | 105°C | ||
文档与媒体
相关型号
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV
90758-1
te connectivity / amp
Assembly Tools, PRO Crimper II Hand Tool Crimpers TOOL ASSY W/DIE SET MINI UNIV MNL PROCRIMPER III W/DIE 22-26 AWG Service crimp tool,26-22 awg HAND TOOL, MATE-N-LOK, 26-22AWG Crimper;Ratchet;26-22AWG;MiniUniversalMate-N-Lok;90758-2Die;PRO-CRIMPERIII Crimping tool, 90758-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于26 → 22 AWG 线规格 PROCRIMP TL W/DIE MIN UNIV MNL
1445824-2
te connectivity / amp
REC,11-5,FLNG MT,LG INS,ALT KE Standard Circular Connectors REC,11-5,FLNG MT,LG INS,ALT KE CONN RCPT 5POS MINI CPC Standard Circular Connector REC,11-5,FLNG MT,LG INS,ALT KE
1445539-3
te connectivity / amp
Conn Housing RCP 1 POS ST Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-1POS PANEL MOUNT Standard Circular Connector RCPT SIZE 8 1 POS FLNG MT STD KEY Conn Housing RCP 1 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector REC,8-1,FLNG MT,LG INS,STD KEY
90758-2
te connectivity / amp
Connector Accessories Compatible Pin Die Set Punches & Dies PROCRIMP DIE MINI UMNL DIE SET FOR PRO-C III 26-22 AWG Die set,Mini Matenlock,26-22awg DIE, MINI U/MNL, MINI CPC MINIMATENLOCK26-22DIE Crimp die set 26...22 AWG, 90758-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 26 → 22 AWG 线规格, Mini-Universal MATE-N-LOK Contacts PROCRIMP DIE MINI UNIV MNL
1-172329-5
te connectivity / amp
Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI-U-MNL GREEN
91529-1
te connectivity / amp
Assembly Tools, Certi Crimp II Tool Crimpers CERTICRIMP 2 SAHT MINI UMNL TOOL AHT 22-26 AWG MINI UMNL Mate-N-Lok crimp tool,26-22awg CRIMP TOOL, FOR UNI MATE-N-LOCK Crimper;SAHTRatchet;26-22AWG;MiniCPC,UniversalMiniMATE-N-LOK;CERTI-CRIMPII CERTI-CRIMP II Straight Action Hand Tool Crimping tool, 91529-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于26 → 22 AWG 线规格 CERTICRIMP 2,SAHT MINI UMNL
1445828-3
te connectivity / amp
Conn Housing RCP 6 POS ST Standard Circular Connector RCPT SIZE 11 6 POS FRE HNG STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 11-6POS FREE-HANGING REC,11-6,FRE HNG,LG INS,STD KE REC,11-6,FRE HNG,LG INS,STD KE Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector
1-172330-5
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 4POS MINI-U-MNL GREEN
1-172340-5
te connectivity / amp
Conn Housing PL 9 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI-UMNL GREEN
455830-1
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTIONF UNI-MATE-II TOOL; CONTACT INSERTION INSERTION TOOL FOR MATE-N-LOCK CONTACTS TOOL,CONTACTINSERTION Insertion tool, 455830-1, TE Connectivity INSERTION TOOL
172331-1
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 6POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac Pin & Socket Connectors CAP HOUSING 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;6;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Socket housing Pitch4.14 mm Poles 2 x 3 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172331-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 6P
1-172333-6
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Panel Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 12PS MINI-U-MNL BLUE
1-172171-9
te connectivity / amp
Conn Housing PL 15 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 15POS MINI-U MNL BLACK Pin & Socket Connectors PLUG 15P MINI BLACK .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 154.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 15 POS TR MINI UNIV
1-172160-6
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 6POS MINI-U-MNL BLUE
1445537-3
te connectivity / amp
Conn Housing RCP 3 POS ST Standard Circular Connector RCPT SIZE 8 3 POS FLNG MT STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-3POS PANEL MOUNT Conn Housing RCP 3 POS ST Product Highlights:HousingReceptacleShell Size = 8Number of Positions = 3Mount Style = PanelSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CPC MINI RCPT, SZ 8, 3 POS, PANEL REC,8-3,FLNG MT,LG INS,STD KEY
1-172338-2
te connectivity / amp
Conn Housing PL 4 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 4POS MINI-UMNL RED Pin & Socket Connectors CAP 9 POS MINI BLK

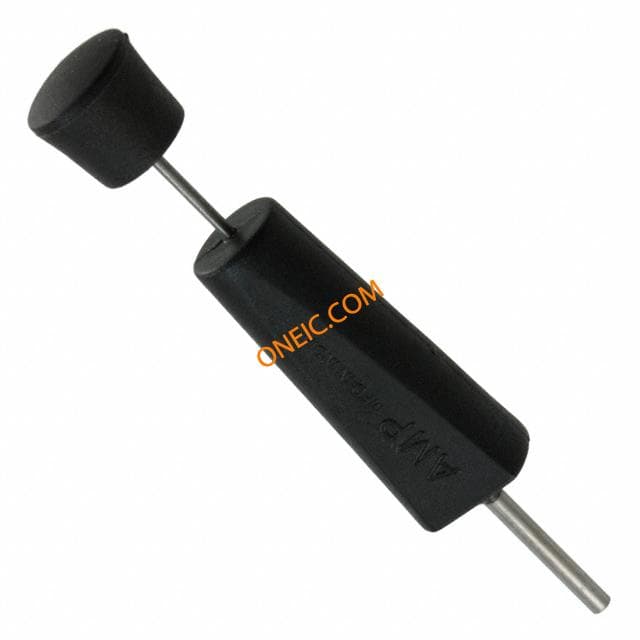

2063388-1
