点击放大查看

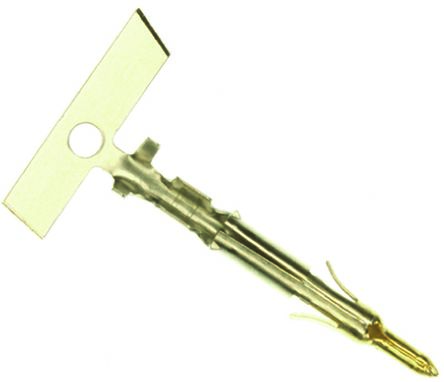

170360-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT PIN 18-22AWG MINI-UMNL Mate-n-lok,contact,pin,0.30-0.90mm² Pin & Socket Connectors MINI PIN 22-18 AWG .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L PIN |
| 分类 |
商业参数
| 其他名称 | A107098CT | 标准包装规格 | 4,000 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 输入端 | .059 – .094, .134 | 额定电压 | 600 V |
| 供电电压 | 600 | 接触电阻 | 10mΩ |
| 最大额定电流 | 7 A | ||
机械参数
| 镀层 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | 开式压线筒 |
| 插针或插孔 | Pin | 电缆直径 | 0.8mm² |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 箔压接区域 | .8 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 4000 |
| 端接排数 | 压接 | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 兼容外壳尺寸（如TM-700等） | 插头或帽护套 |
| 接触件表面处理 - 配合 | 预镀锡 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 接触镀层厚度 | .8 µm [ 31.49 µin ] | 线规或范围 - AWG | 22-18 |
产品信息
| 制造商 | 1.5 – 2.4, 3.4 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | Mini-Universal MATE-N-LOK 2 |
| 产品子类型 | Contacts | 应用细节 | Power |
| 适用产品/相关产品 | Automotive Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +30°C |
| 可用温度范围 | -20to+105°C | 结工作温度 | 105°C |
