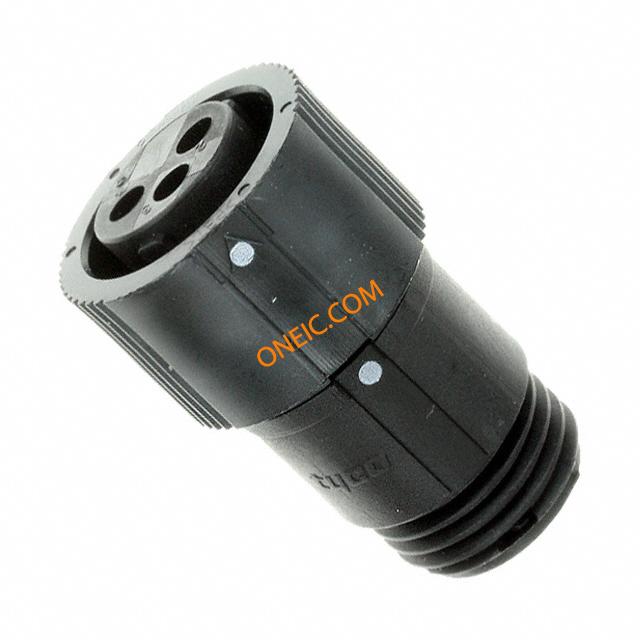

1445534-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSNG 8-3POS MINI CPC Standard Circular Connector PLUG SIZE 8 3 POS STD KEY Conn Housing RCP 3 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector PLUG,8-3,LARGE INS,STD KEY |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not reviewed for lead free solder process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大额定电流 | 7/Contact A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 17 mm | 密封型 | 密封 |
| 外形尺寸(长x宽) | 8 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 8 |
| 导线线规 | 18 AWG | 方向 | Keyed |
| 外壳样式 | Plug | 螺纹尺寸 | 1/2-20 UNF-2A |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 壳体材料 | Thermoplastic |
| 总长度 | 29 mm | 包装数量 | 100 |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 3 |
| 绝缘直径 | 1.50 â 2.39 [0.059 â 0.110] | 位数 | 3 |
| 外壳尺寸-插件 | 8-3 | 兼容外壳尺寸（如TM-700等） | 插座护套 |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CPC |
| 产品子类型 | Housing | 其他规格 | 标准 |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -55C to 105C |
