点击放大查看

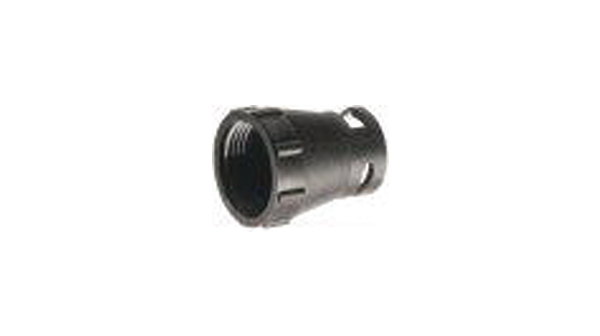

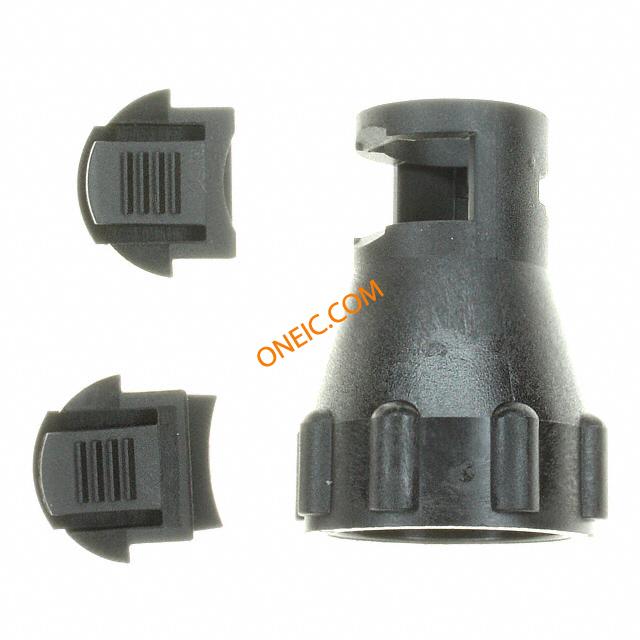

1445730-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Strain Relief Thermoplastic Black Miniature CPC (Circular Plastic Connector) CONN STRAIN RELIEF STR SHELL 8 IP67 straight strain relief shell,8 size Standard Circular Connector STRT STRN RELIEF 8 Connector Accessories Strain Relief Thermoplastic Black Product Highlights:Strain ReliefShell Size = 8Strain Relief Type = StraightSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector STRAIN RELIEF, SHELL, SIZE 8 StrainRelief;Thermoplastic;CircularPlastic;8;Black;Straight Tension relief for 4-pole, 1445730-1, TE Connectivity TE Connectivity CPC 1路 应力释放支架, 使用于 AMP 小型 CPC STRN RELIEF ASY,STRT SIZE 8 |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not reviewed for lead free solder process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 深度 | 18 mm |
| 重量 | 0.004 | 材料（通用） | Thermoplastic |
| 外壳尺寸 | 8 | 应变范围（增益可调） | Black |
| 安装类型 | Straight | 连接器类型 | CircularPlastic |
| 壳体材料 | Thermoplastic | 总长度 | 23.5 mm |
| 连接器颜色 | :Black | 外壳尺寸-插件 | 8 |
| 绝缘材料 - 材质 | Thermoplastic | 外径-未扩张 | :4.4mm |
产品信息
| 类型 | Strain Relief | 系列 | CPC |
| 产品特性 | Assembly Kit | CAD图纸 | 3D CAD Model |
| 产品子类型 | Strain Relief | 附件类型 | Strain Relief |
| 射频系列/标准 | 1445730 | 适用产品/相关产品 | Miniature CPC |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
