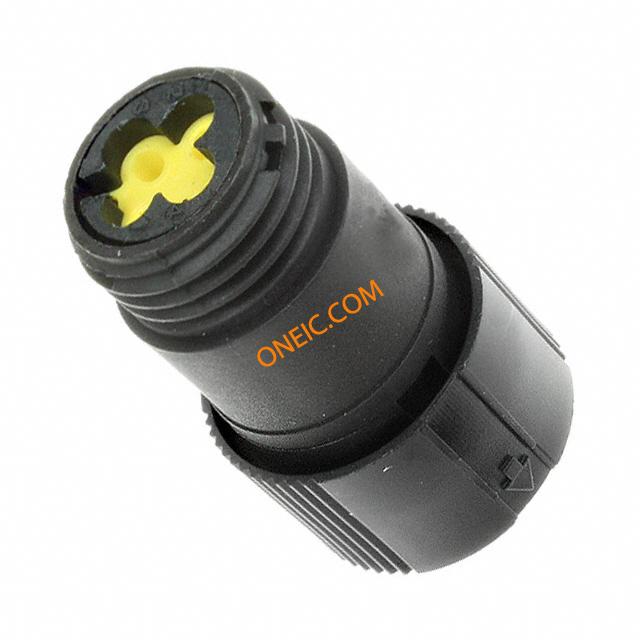

1445390-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSNG 8-4POS MINI CPC Standard Circular Connector PLUG 8-4 .035 - .059 Conn Housing RCP 4 POS ST Product Highlights:HousingPlugShell Size = 8Number of Positions = 4Insulation Diameter = .89 - 1.50 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CIRCULAR CONNECTOR, PLUG, SZ 8, 4POS, CABLE Connector;MiniCPC;Sealed;PlugAssy;4Pos.;ShellSz.8;IP67;StdKey PLUG,8-4,SM INS,STD KEY |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 17 mm | 重量 | 0 |
| 包装方式 | Bulk | 外壳尺寸 | 8 |
| 导线线规 | 18 AWG | 方向 | Keyed |
| 外壳样式 | Plug | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin Lead over Nickel | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Free Hanging | 插入角度 | :8-4 |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 29 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 4 |
| 绝缘直径 | 0.89 â 1.50 [0.035 â 0.059] | 位数 | 4 |
| 外壳尺寸-插件 | 8-4 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CPC |
| 制造商全称 | MiniCPC | 产品子类型 | Housing |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -55C to 105C |
