点击放大查看
1-770902-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 22-26AWG MINI-UMNL Pin & Socket Connectors SOCKET 26-22 AWG AU MINI .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = StripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU LF |
| 分类 |
商业参数
| 其他名称 | A100429CT | 标准包装规格 | 7,000 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 7,000 |
| 工厂包装数量 | 7000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 间距 | Not Required mm | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 释放力 | 带有 |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 包装数量 | 7000 |
| 端接样式 | 插座 | 适用端子尺寸 | No |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 1.19 – 1.75 mm [ .047 – .069 in ] | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 触点镀层 | 亮光 |
| 接触件表面处理 - 配合 | 锡 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 备注 | 料号尾数为 -3 的 HDM 模具用在带有 T 或 G 端接器的 AMPOMATOR CLS 机器上，尾数为 -4 的模具用在 AMP-O-LECTRIC 型号 K 机器上，尾数为 -5 的模具用在 AMP-O-LECTRIC 型号 G 机器上。 | 类型 | Stamped |
| 连接器性别 | SKT | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
172156-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 1POS MINI-U M-N-L Pin & Socket Connectors 1CKT CAP HSG Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 1In-Line Contact LayoutMount = Free HangingSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP RECEPTACLE HOUSING, FREE, 1WAY Connector Socket housing 4.14 mm Poles 1 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172156-1, TE Connectivity TE Connectivity 紧凑型电源连接器 插座 母, 9.5A 600 V 交流/直流, -20 → +105 °C 1 CIR UNIV M-N-L CAP
1-172157-9
te connectivity / amp
Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 2POS .163" Pin & Socket Connectors RCPT HSG 2P .163 .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L CAP BLCK

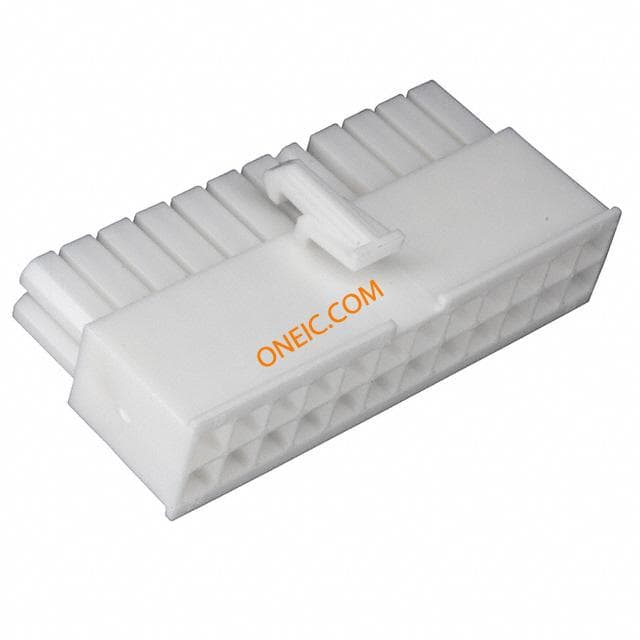

770587-1
te connectivity / amp
Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 24POS MINI UNIV-MATE Pin & Socket Connectors FH PLUG HSG 24P Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,24POSITION,NYLON,WHITE Pin housing Pitch4.14 mm Poles 2 x 12 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770587-1, TE Connectivity 24P MINI UMNL PLUG HSG
794896-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 2POS SEALED MINI UMNL Female Compact Power Connector Socket,9A 600V ac Pin & Socket Connectors CAP 2P Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, RCPT, 2 WAY, NYLON Connector;Nylon(Housing);2;Natural;RoHSCompliant,ELVCompliant Socket; wire-board; male; w/o terminals; Contacts ph:4.14mm; 600V Crimp housing Pitch4.14 mm Poles 1 x 2 accepts male or female contacts / straight / for panel mount MATE-N-LOK Mini Universal Sealed, 794896-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9A 600 V 交流 2 CIR MINI UMNL RND WIRE HOLES
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV

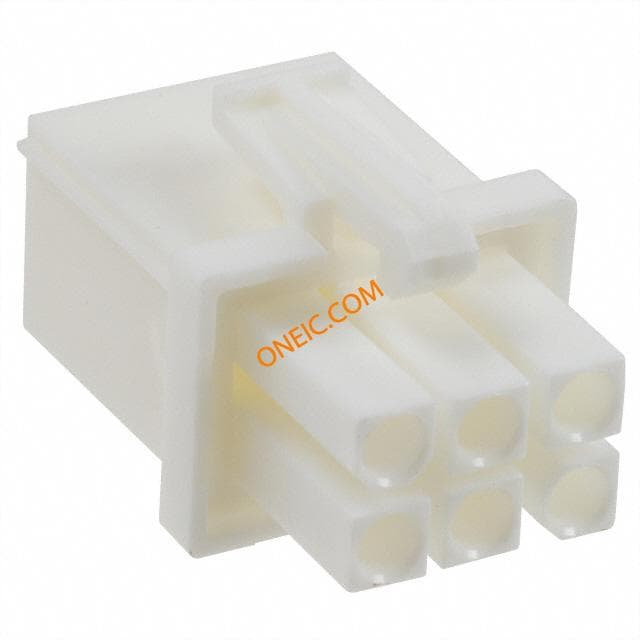

794895-1
te connectivity / amp
Conn Housing PL 6 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 6POS SEALED MINI UMNL Male Compact Power Connector Plug,9A 600V ac Pin & Socket Connectors PLUG 6P Conn Housing PL 6 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 64.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG, SEALED, 6WAY Connector;Nylon(Housing);6;White;RoHSCompliant,ELVCompliant Plug; wire-board; female; w/o terminals; 4.14mm; PIN:6; 600V TE Connectivity 线对线连接器 插头 公, 9A 600 V 交流 6 CIR MINI UMNL RND WIRE HOLES
172330-1
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN RECEPT/CAP 4POS MATE-N-LOK Plug housing 4 way Mate-n-Lok Pin & Socket Connectors MINI CAP HSG 4P NAT Conn Housing RCP 4 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 4WAY Mini-UniversalMate-N-Lok;4PositionCap;UL94V-2;Natural Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:4 Socket housing Pitch4.14 mm Poles 2 x 2 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172330-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 4P

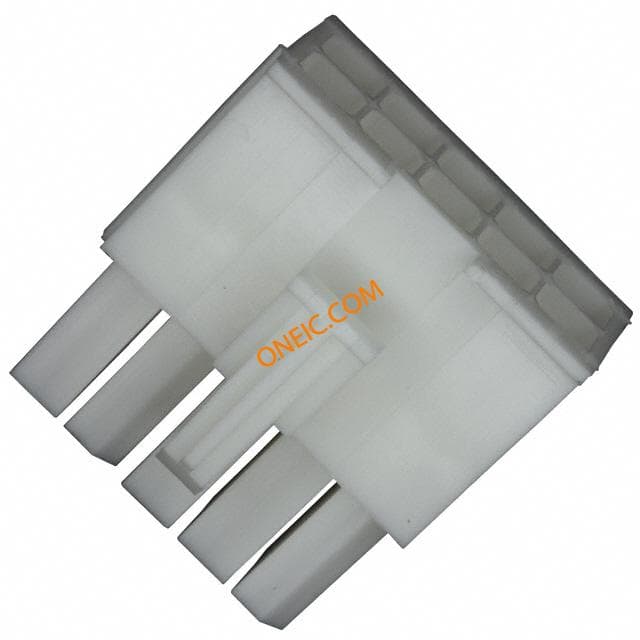

770580-1
te connectivity / amp
Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,10Way Pin & Socket Connectors PLUGHOUSE 10 POS Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, RECEPT Connector,SoftShell;10;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 5 Double row / straight / accepts male or female contacts MATE-N-LOK, 770580-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 10 路 直 公 电缆安装 压接连接器外壳 10P MINI UMNL PLUG HSG
1445807-3
te connectivity / amp
Conn Housing RCP 9 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-9POS CPC 9 Pole Female Straight Industrial & Automation Circular Connector Standard Circular Connector PLUG 11-9 Conn Housing RCP 9 POS ST Product Highlights:HousingPlugShell Size = 11Number of Positions = 9Insulation Diameter = 1.50 - 2.39 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CIRCULAR CONNECTOR, PLUG, 9 WAY, CABLE Connector;MiniCPC;Sealed;PlugAssy;9Pos.;ShellSz.11;IP67;StdKey Cable connector, Mini CPC 9-pin Poles=9, 1445807-3, TE Connectivity TE Connectivity 9路 直向 连接器 插座 PLUG,11-9,LG INS,STD KEY
1445818-3
te connectivity / amp
Conn Housing RCP 7 POS ST Standard Circular Connector PLUG SIZE 11 7 POS STD KEY Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-7POS CPC Conn Housing RCP 7 POS ST Product Highlights:ConnectorConnector Style = PlugShell Size = 117 PositionsAccepts Wire Insulation Diameter, Range = 1.50 - 2.39 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector PLUG,11-7,LG INS,STD KEY
1445820-3
te connectivity / amp
Conn Housing RCP 5 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-5POS CPC Standard Circular Connector PLUG SIZE 11 5 POS STD KEY Conn Housing RCP 5 POS ST Product Highlights:HousingPlugShell Size = 11Number of Positions = 5Insulation Diameter = 1.50 - 2.39 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector PLUG,11-5,LG INS,STD KEY
172161-1
te connectivity / amp
Conn Housing RCP 9 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 9POS MINI UNIV-MATE 9 way cable/panel socket Min Mate-N-Lok Pin & Socket Connectors MATE-N-LOCK 9 CIR. Conn Housing RCP 9 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 94.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, 9 WAY, NYLON Connector,SoftShell;9;600VAC;Receptacle(Cap);Matrix;Nylon;Natural Plug; wire-wire; male; 4.14mm; PIN:9; UL94V-2; Pin layout:3x3; 250V Socket housing 4.14 mm Poles 3 x 3 Multi row / for panel mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172161-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 3 行 4.2mm 节距 9 路 直 母 压接连接器外壳 9 CIR UNIV M-N-L CAP
172331-1
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 6POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac Pin & Socket Connectors CAP HOUSING 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;6;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Socket housing Pitch4.14 mm Poles 2 x 3 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172331-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 6P

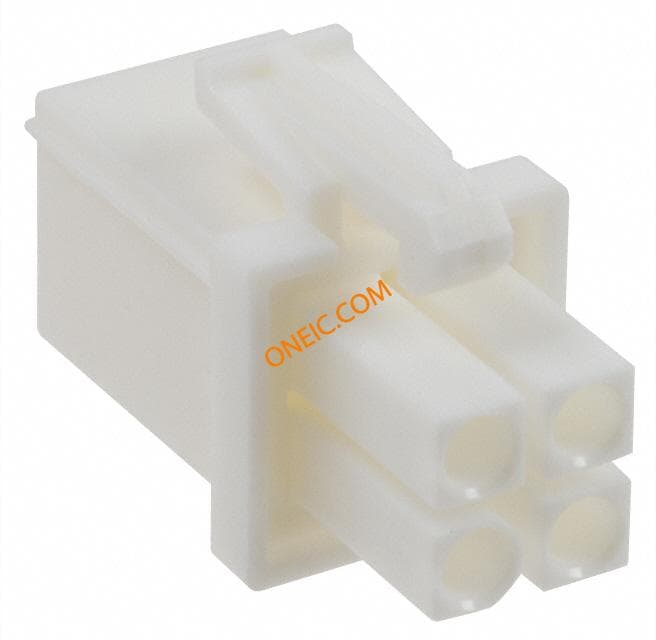

794805-1
