点击放大查看

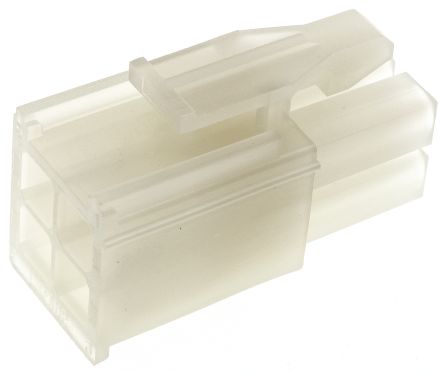

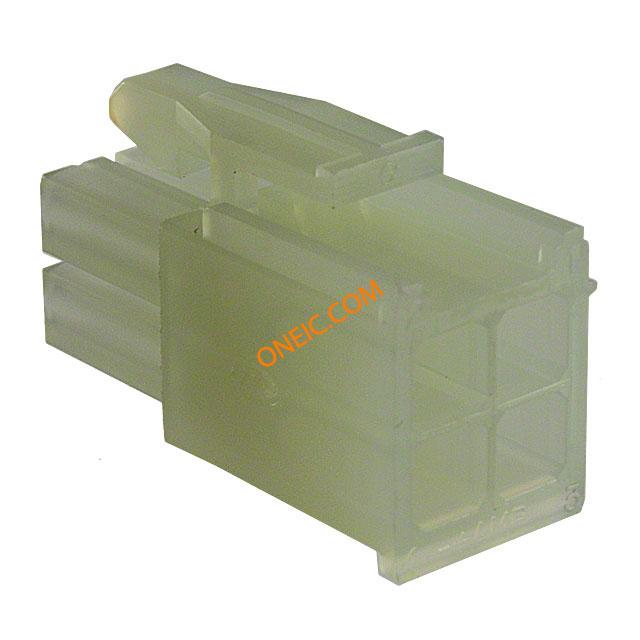

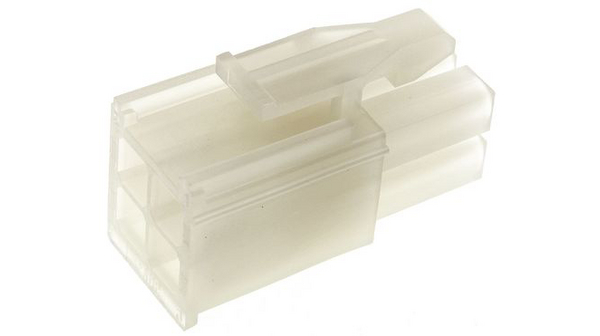

172338-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSE 4POS MATE-N-LOK Housing,plug,Mate-n-lok,4 Way,Natural Pin & Socket Connectors 4P PLUG HSG UL94V-2 Conn Housing PL 4 POS 4.14mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, DUAL ROW, 4 WAY Connector,SoftShell;4;600VAC;Plug;Double-Row;Nylon;Plug;Natural Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:4; 600V Pin housing Pitch4.14 mm Poles 2 x 2 Double row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172338-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 4 路 直 公 压接连接器外壳 MINI UMNL PLUG HOUSING 4P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 工作电压 | :600V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.7mm |
| 间距 | 4.14 mm | 长度 | 9.8mm |
| 重量 | 0.002 | 材料（通用） | :Polyamid 6.6 |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 柱间距 | 4.14 x 4.14 [.163 x .163] | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | :Dual Row |
| 插入力 | :4N | 锁定特性 | lock |
| 本体材料 | :Nylon 6.6 (Polyamide 6.6) | 壳体材料 | Nylon |
| 总长度 | 9.8 mm | 包装数量 | One Piece Housing |
| 连接器 - 电缆 | plug | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
| 第一连接器安装特征 | 2x2 | ||
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 产品子类型 | Housing |
| 适配器系列 | Mini Universal MATE-N-LOK | 单元数量 | 1 |
| 模块/板类型 | No | 电路数 | 4 |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 工作温度 | :105°C | ||
