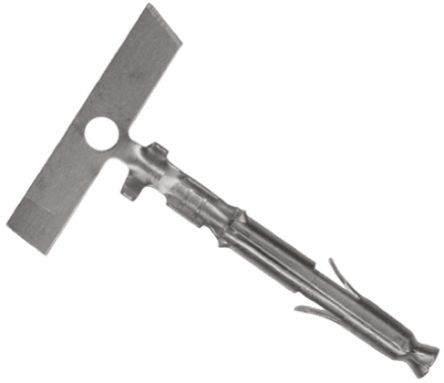

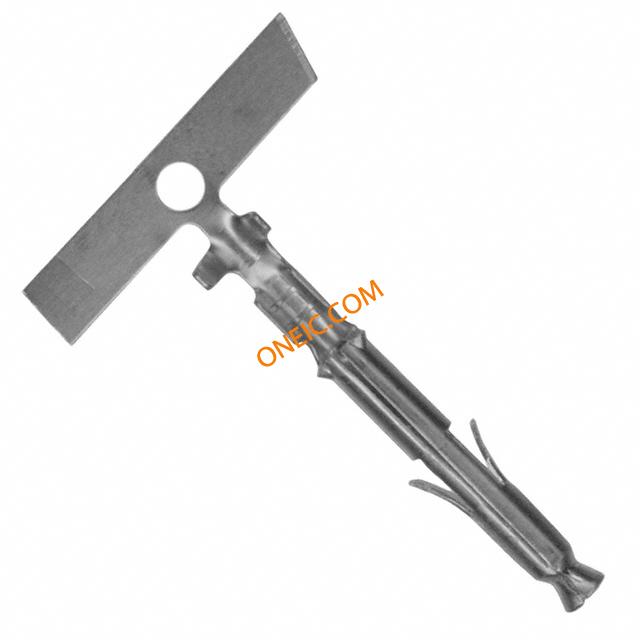

点击放大查看
170361-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Contact,crimp,rec,mini Matenlok,26-22awg Power to the Board SKT 26-22 AWG REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MIN-UMNLCONTSTP-ID,MINIUNIVERSALM-N-LSOCKET MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀金触点 MINI UNIVERSAL M-N-L SOCKET |
| 分类 |
商业参数
| 其他名称 | A97688CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 深度 | 2.8 mm | 间距 | Not Required mm |
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 电缆直径 | 0.35mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 黄铜 | 材料表面处理 | Gold |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 17.25 mm | 包装数量 | 6000 |
| 端接排数 | 压接 | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 绝缘直径 | 1.19 – 1.75 mm [ .047 – .069 in ] | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 接触件表面处理 - 配合 | 镍 |
| 法兰上方插针尺寸 | 1 mm [ .039 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 26-22 | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Mini-Universal MATE-N-LOK | 产品子类型 | Contacts |
| 端口数 | 1 Port | 应用细节 | Power |
| 适用产品/相关产品 | MATE-N-LOCK 连接器 | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20 – 105 °C [ -4 – 221 °F ] |
