点击放大查看

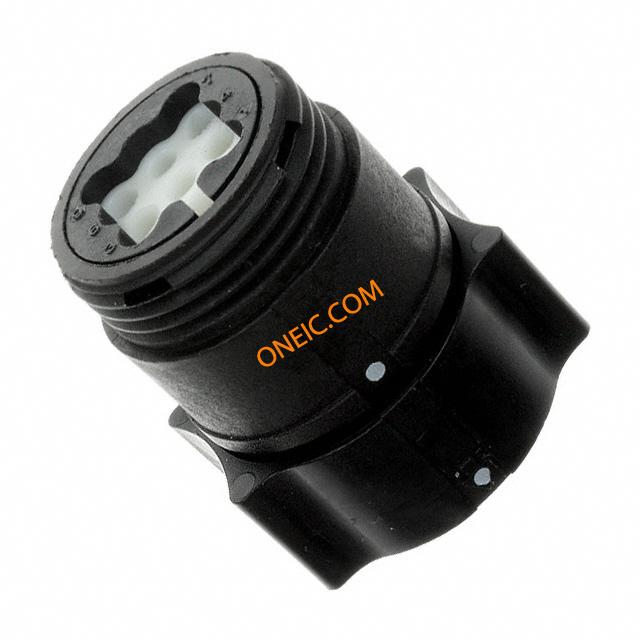

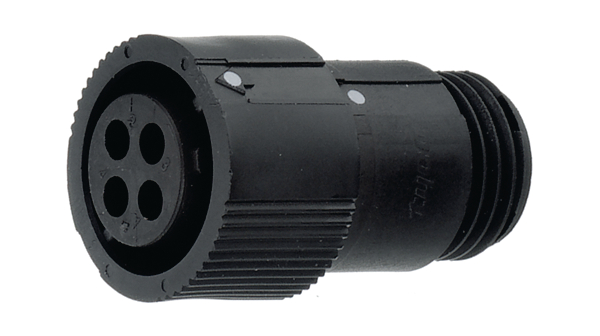

1445807-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS ST Miniature CPC (Circular Plastic Connector) CONN PLUG HOUSING 11-9POS CPC 9 Pole Female Straight Industrial & Automation Circular Connector Standard Circular Connector PLUG 11-9 Conn Housing RCP 9 POS ST Product Highlights:HousingPlugShell Size = 11Number of Positions = 9Insulation Diameter = 1.50 - 2.39 mmSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CIRCULAR CONNECTOR, PLUG, 9 WAY, CABLE Connector;MiniCPC;Sealed;PlugAssy;9Pos.;ShellSz.11;IP67;StdKey Cable connector, Mini CPC 9-pin Poles=9, 1445807-3, TE Connectivity TE Connectivity 9路 直向 连接器 插座 PLUG,11-9,LG INS,STD KEY |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 7A |
| 最小供电电压 | 600VAC | ||
机械参数
| 高度 | 21.75 mm | 重量 | 0.006 |
| 包装方式 | Bulk | 外壳尺寸 | 11 |
| 导线线规 | 18 AWG | 方向 | Keyed |
| 外壳样式 | Plug | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin Lead over Nickel | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | GoldoverTin |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 插入角度 | :11-9 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 29 mm |
| 主要材料 | CircularPlasticConnector | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 9 |
| 绝缘直径 | 1.50 â 2.39 [0.059 â 0.110] | 位数 | 9 |
| 外壳尺寸-插件 | 11-9 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CPC |
| CAD图纸 | 3D CAD Model | 制造商全称 | MiniCPC |
| 产品子类型 | Housing | 应用细节 | Commercial |
环境参数
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
