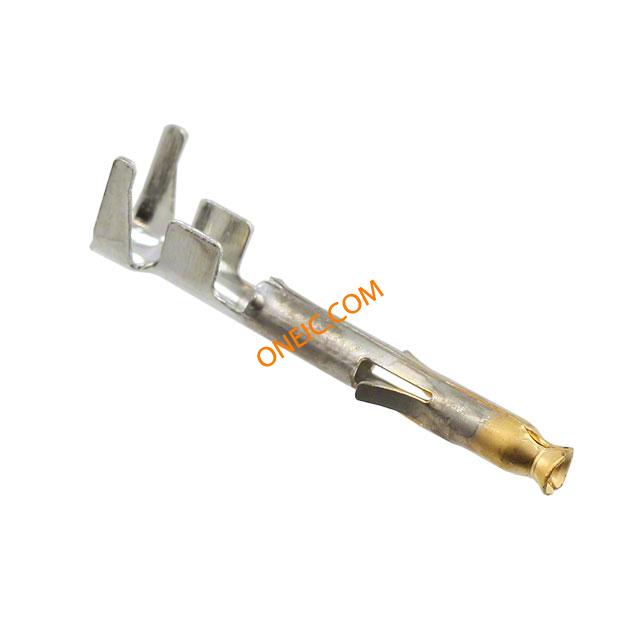

1-770988-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 18-22AWG MINI-UMNL Pin & Socket Connectors MINI SOK 22-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP MINI UMNL SOK 22-18AWG LP LF |
| 分类 |
商业参数
| 其他名称 | 17709881 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 重量 | 0 | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 22-18 |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
