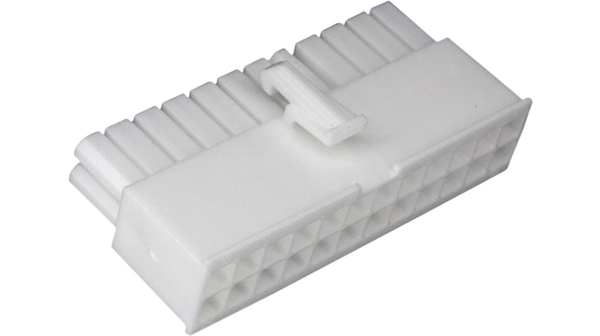

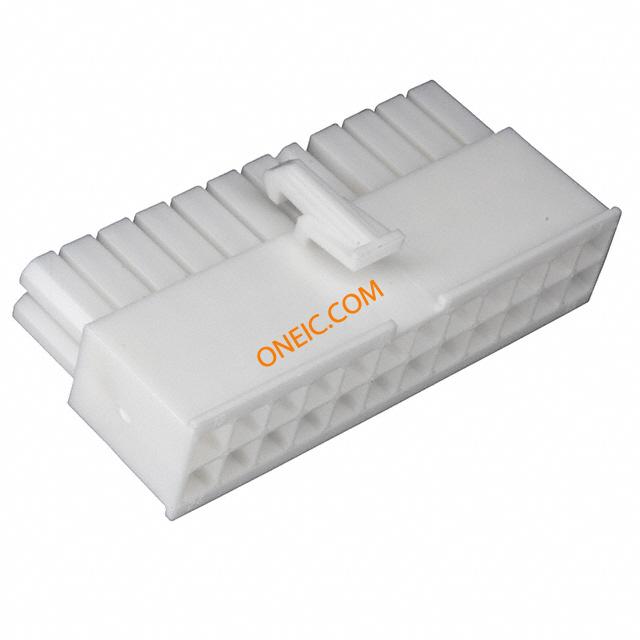

770587-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 24POS MINI UNIV-MATE Pin & Socket Connectors FH PLUG HSG 24P Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,24POSITION,NYLON,WHITE Pin housing Pitch4.14 mm Poles 2 x 12 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770587-1, TE Connectivity 24P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 已认证 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | 1500 | 额定电压 | 600 V |
| 极数 | 2 x 12 | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 绝缘电阻 | 1000 MOhm |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | White | 深度 | 23.83 mm |
| 间距 | 4.14 mm | 高度 | 15.19 mm |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 导线线规 | 16-30 AWG |
| 排间距 | 0.163" (4.14mm) | 触点形式 | Male or Female |
| 触头类型 | Male or Female | 引脚间距 | 0.163" (4.14mm) |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 外壳材料（壳体） | 插头 |
| 连接器样式 | Double row | 壳体材料 | Nylon |
| 总长度 | 51.38 mm | 包装数量 | One Piece Housing |
| 面板安装类型 | 不带 | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | white | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
| 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 帽护套 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
| 端子排数量 | 不带 | 线规或范围 - AWG | 30-16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | 系列 | Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 连接方式 | Wire-Board | 模块/板类型 | No |
| 电路数 | 24 | 输出配置 | Free Hanging (In-Line) |
| 装配配置 | 不带 | ||
环境参数
| 工作范围 | 不密封 | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | -55C to 105C | ||
相关型号
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN

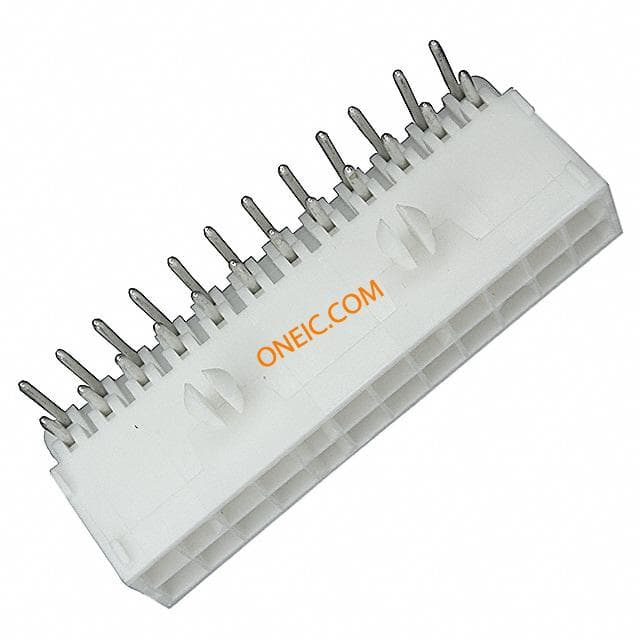

794108-2
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Pin & Socket Connectors 24P R/A HDR ASSY MINI UMNL AU Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794072-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER,PIN,24WAY,180DEG TE Connectivity MATE-N-LOK 系列 4.14mm节距 24路 直 RJ45-Rangierfeld, 焊接端接, 9.5A 24P MINI UMNL HDR W/DH SN
1-794108-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 24 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 24 POS R/A TIN DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 24WAY HEADER,PIN,24WAY,90DEG Mini-Universal MATE-N-LOK 24 Position Dual Row Through-Hole Right Angle Header TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 24路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 24P MINI UMNL R/A HDR ASSY SN
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU
770904-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,22-18awg Power to the Board MINI UMNL SOCKET 22- Reel of 4500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL CONTACT,SOCKET,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Socket Contact Crimp contact 11.2 A Female 18...22 AWG, 770904-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL SOK 22-18 AWG SN
770985-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Crimp contact, pin, 9.5A, 26-22AWG Standard Circular Connector PIN 26-22 AWG MINI UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, MALE, 26-22AWG Connector;Pin;Brass;Pre-Tin;600VAC;9.5A;26to22AWG;0.039in. Crimp pin 9.5 A Male 26...22 AWG, 770985-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22AWG SN LP
1-770901-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 26-22 BR/AU 28000 .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN26-22AWGAULF MINI UMNL PIN 26-22 AWG AU LF
794108-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 TIN Power to the Board SOCKET CONTACT 22-18 AWG Conn Power PIN 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 TIN Power to the Board .163 24CKT 24P MINI UMNL HDR W/DH SN
1-770988-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 18-22AWG MINI-UMNL Pin & Socket Connectors MINI SOK 22-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP MINI UMNL SOK 22-18AWG LP LF
794407-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 20-16AWG M-UNML TIN Contact female 20-16AWG Mini UMNL Pin & Socket Connectors SKT 20-16 AWG BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 20-16AWG, CRIMP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNML SCKT 20-16 AWG SN
1-794108-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS R/A DUAL .163 AU Headers & Wire Housings HEADER 24 POS R/A GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL R/A HDR ASSY LF
1-794079-0
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Headers & Wire Housings HEADER 24 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS VERT MINI-UMNL Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 24WAY 24P MINI UMNL HDR W/O DH SN LF
1-794072-1
te connectivity / amp
Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 24POS STR DUAL .163 AU Headers & Wire Housings HEADER 24 POS GOLD DUAL ROW Conn Power HDR 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL HDR W/DH AU LF
794079-1
te connectivity / amp
Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 24POS PCB TIN WHITE Power to the Board 12x2 VERT HDR UL94V0 400 Conn Power PIN 24 POS 4.14mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 244.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

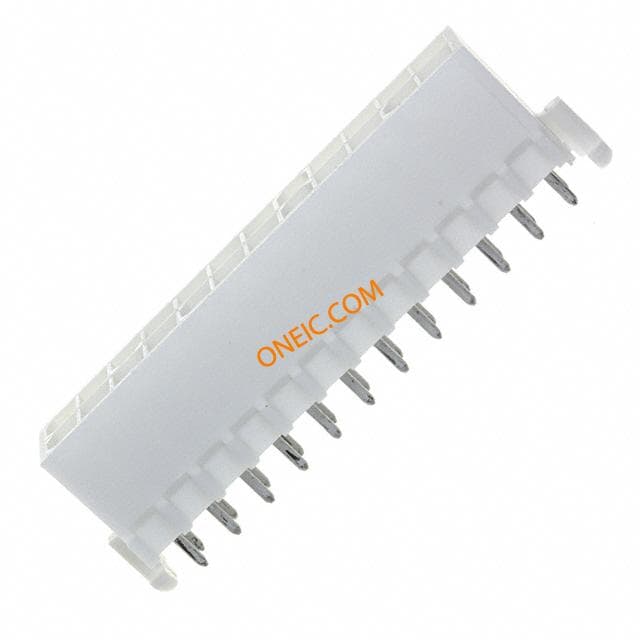

794072-2
