点击放大查看

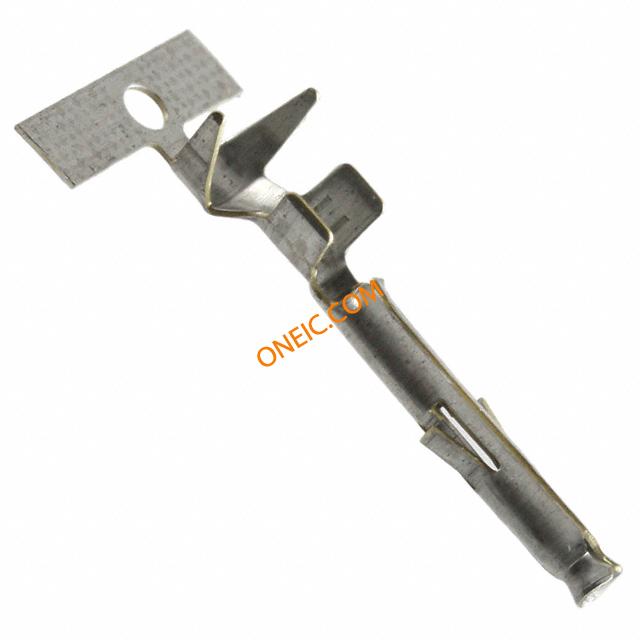

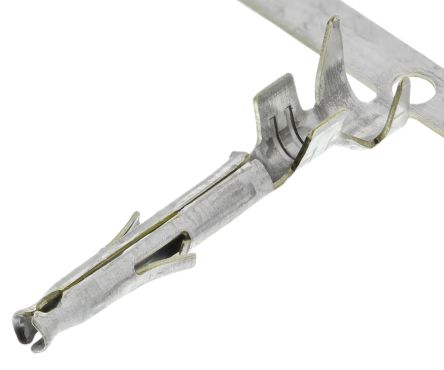

794407-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 20-16AWG M-UNML TIN Contact female 20-16AWG Mini UMNL Pin & Socket Connectors SKT 20-16 AWG BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 20-16AWG, CRIMP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNML SCKT 20-16 AWG SN |
| 分类 |
商业参数
| 其他名称 | A100828CT | 零件号别名 | 34173 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK | ||
机械参数
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 触头材料 | Brass |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 绝缘直径 | 2.01 â 3.20 [0.079 â 0.126] | 线规或范围 - AWG | 20-16 |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Contact |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
