1-172157-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 2POS .163" Pin & Socket Connectors RCPT HSG 2P .163 .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L CAP BLCK |
| 分类 |
商业参数
| 标准包装规格 | 500 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 9.5/Contact A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Black | 深度 | 23.7 mm |
| 间距 | 4.2 mm | 宽度 | 10.8 |
| 长度 | 23.7 | 密封型 | Not Sealed |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 本体尺寸 | .8 – 2 mm [ .031 – .078 in ] |
| 触头类型 | Male or Female | 柱间距 | 4.14 [.163] |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 封装形式 | Receptacle | 高度（英寸） | 11.8 |
| 壳体材料 | Nylon | 总长度 | 11.8 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 带有 |
| 端接样式 | 插针 | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 帽护套 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 0.99 [0.039] | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 模块/板类型 | No | 电路数 | 2 |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20C to 105C |
文档与媒体
相关型号
170361-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Contact,crimp,rec,mini Matenlok,26-22awg Power to the Board SKT 26-22 AWG REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MIN-UMNLCONTSTP-ID,MINIUNIVERSALM-N-LSOCKET MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀金触点 MINI UNIVERSAL M-N-L SOCKET
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
1-794059-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONTACT PIN 26-30AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 30-26AWG Gold Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 30-26AWG, CRIMP 26-30 AWG Pin Crimp Mini-Universal MATE-N-LOK?Connector Crimp pin 9.5 A Male 30...26 AWG, 1-794059-0, TE Connectivity MINI UMNL PIN L/P LF
770903-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 22-18 AWG REEL .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG TIN CRIMP Contact,pin,mini universal,22-18awg Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP CONTACT, CRIMP, PIN, 22-18AWG, CONTACT, CRIMP, PIN, 22-18AWG, REEL CONTACT,PIN,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀预镀锡镀镍触点 MINI UMNL PIN 22-18 AWG SN
170365-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG TIN M-UMNL Mate-N-Lok socket contact,26-22awg Power to the Board SKT 26-22 AWG BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 26-22AWG MINIUNIVERSALM-N-LSOCKETLP Contact; female; 0.12÷0.4mm2; Mini Universal MATE-N-LOK; tinned MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact Crimp socket 9.5 A Female 22...26 AWG, 170365-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L SOCKET LP
172165-1
te connectivity / amp
Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MATE 2 way cable plug Min Mate-N-Lok Pin & Socket Connectors 2 CIRCUIT PLUG Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 2WAY CONN, INLINE PLUG & SOCKET Connector,SoftShell;2;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-wire; female; 4.14mm; PIN:2; UL94V-2; Pin layout:2x1 Pin housing 4.14 mm Poles 1 x 2 Single row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172165-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 2 路 直 公 压接连接器外壳 2 CIR UNIV M-N-L PLUG NATL
170360-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT PIN 18-22AWG MINI-UMNL Mate-n-lok,contact,pin,0.30-0.90mm² Pin & Socket Connectors MINI PIN 22-18 AWG .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L PIN
1-172165-9
te connectivity / amp
Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MNL BLK Pin & Socket Connectors 2C MINI UMNL PLUG .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L PLUG BLCK
770901-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 26-22 AWG REEL .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Contact male 26-22AWG Mini UMNL Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP CONTACT,PIN,MINI-UNIVERSALMATE-N-LOK,26-22AWG TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22 AWG SN
1-794058-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 30-26AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = SocketWire Barrel Contact Termination TypeMini-Universal MATE-N-LOKTerminate To WireSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 30-26AWG, CRIMP Crimp socket 9.5 A Female 30...26 AWG, 1-794058-0, TE Connectivity MINI UMNL SOK L/P LF
1-794406-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel .163" Centerline, 600 V, 9.5 A max. CONTACT PIN 16-20AWG MINI-UMNL Pin & Socket Connectors PIN 20-16 AWG AU Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactMini-Universal MATE-N-LOKPinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 20-16 AWG AU LF

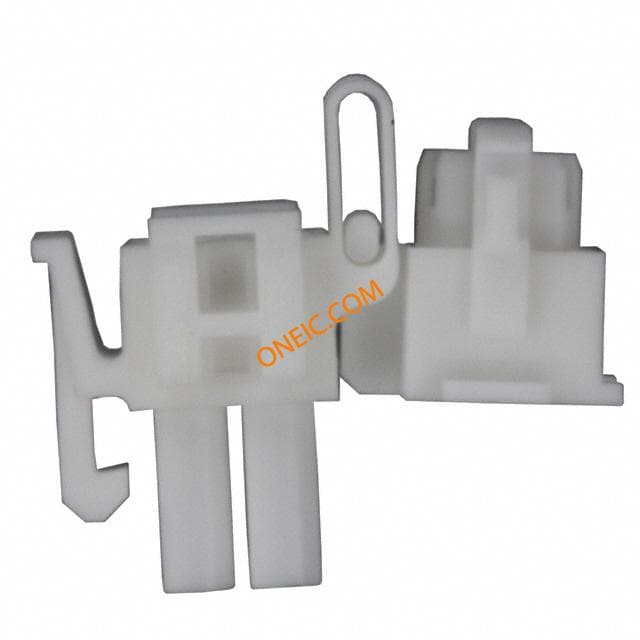

794184-1
