1-172165-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MNL BLK Pin & Socket Connectors 2C MINI UMNL PLUG .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L PLUG BLCK |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK | ||
机械参数
| 颜色 | Black | 间距 | 4.2 mm |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 触头类型 | Male or Female | 柱间距 | 4.14 [.163] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Pre Tin | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Plug | 插入力 | 2.7 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 帽护套/印刷电路板插针接头 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 0.99 [0.039] |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
| 模块/板类型 | No | 电路数 | 2 |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20 – 105 °C [ -4 – 221 °F ] |
文档与媒体
相关型号

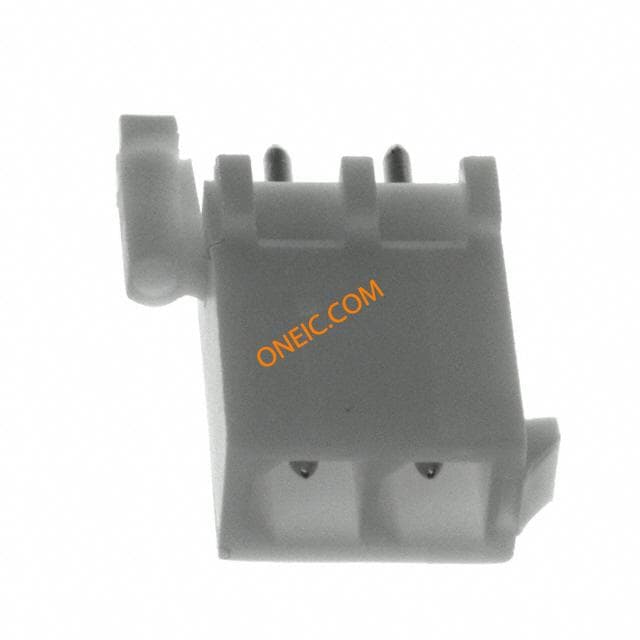

1-172157-9
te connectivity / amp
Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 2POS .163" Pin & Socket Connectors RCPT HSG 2P .163 .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L CAP BLCK
172328-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 2POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac/dc Power to the Board UNIV M-N-L HSG Conn Housing RCP 2 POS 4.14mm ST Loose Piece Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, 2 WAY, NYLON, PANEL MINI-UM-N-LHSG,UNIVM-N-LHSG Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:2 Socket housing Pitch4.14 mm Poles 1 x 2 Single row / for panel mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172328-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流/直流, -20 → +105 °C MINI UNIVERSAL MATE-N-LOK CAP HOUSING 2P
770872-2
te connectivity / amp
Conn Power PIN 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 2POS VERT .163 AU Pin & Socket Connectors 2P HEADER ASSY Conn Power PIN 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 02P MINI UMNL HDR ASSY VO AU

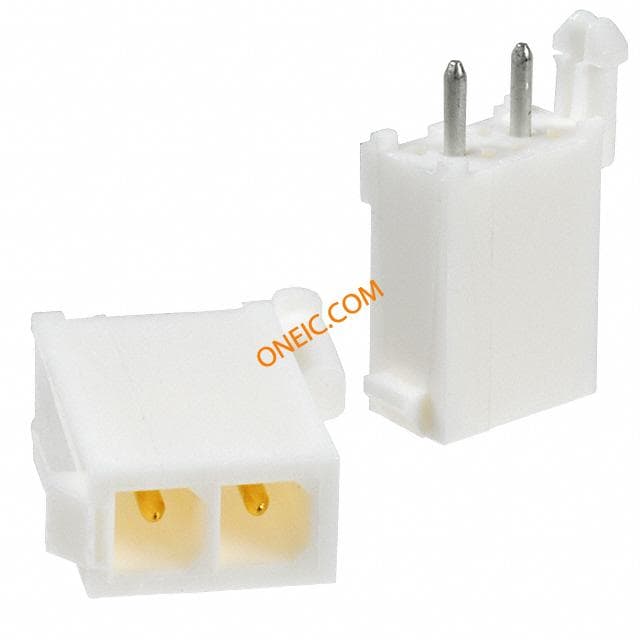

770166-2
