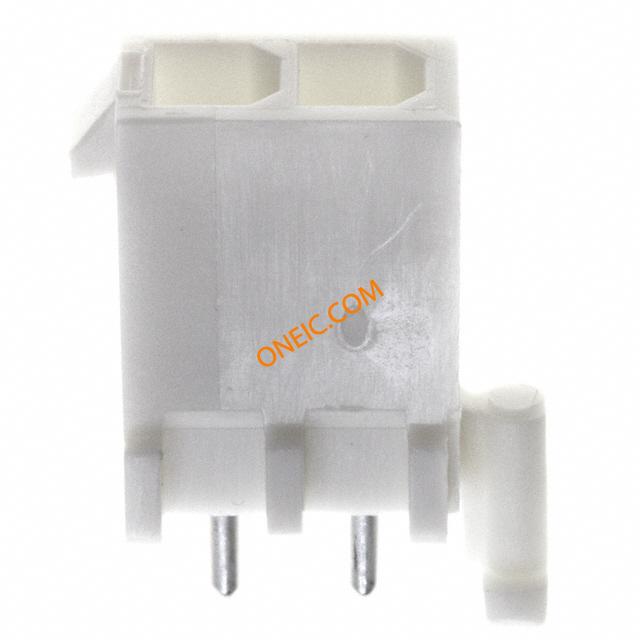

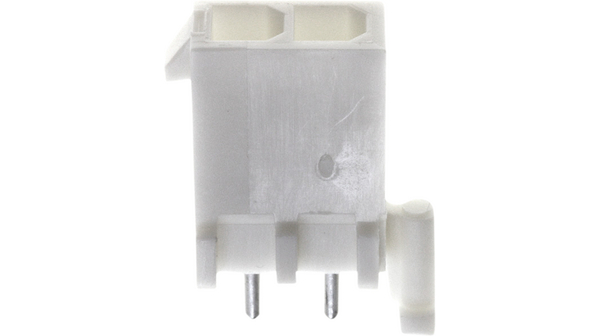

1-770872-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 2POS VERT .163 TIN TE Connectivity Mini-Universal MATE-N-LOK Series 4.14mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 2 POS TIN IN-LINE Conn Power HDR 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 2POS, 4.14MM MINI-UNIVM-N-LHDRS,02PMINIUMNLHDRASSYSN Pin header Pitch4.14 mm Poles 1 x 2 straight MATE-N-LOK Mini Universal, 1-770872-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 02P MINI UMNL HDR ASSY SN |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 600 V ac/dc | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | 6.35 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 13.69 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 位数 | 2 | 接触镀层厚度 | 150µin (3.81µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini-Universal MATE-N-LOK | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 | 加载位置数 | All |
