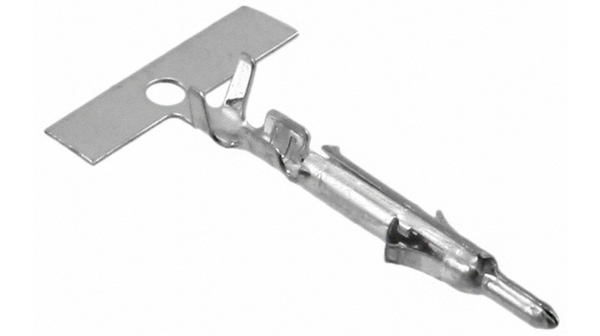

点击放大查看
170363-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG PRE-TIN M-UMNL Mate-N-Lok pin contact,26-22awg Power to the Board PIN 26-22 BULK Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 26-22AWG MINIUNIVERSALM-N-LPINLP Contact; male; 0.12÷0.35mm2; 22÷26AWG; Mini Universal MATE-N-LOK MATE-N-LOK 26-22 AWG Wire to Cable Crimp Pin Contact Crimp pin 9.5 A Male 22...26 AWG, 170363-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L PIN LP |
| 分类 |
商业参数
| 其他名称 | 1703631 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | ||
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Mini-UniversalMATE-N-LOK | ||
机械参数
| 深度 | 2.8 mm | 间距 | Not Required mm |
| 高度 | 2.9 mm | 重量 | 0.01 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触点尺寸 | :22 |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 17.5 mm |
| 包装数量 | 1 | 主要材料 | Contact |
| 连接器 - 电缆 | contact | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Tin |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 1.20-1.75in. | 线规或范围 - AWG | 26-22 |
| 线规或范围 - mm² | :0.35mm² | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :1.75mm | ||
产品信息
| SPG | 1 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | :Mini Universal Mate-N-Lok Sealed |
| 制造商全称 | Mini-UniversalMATE-N-LOK | 产品子类型 | Contacts |
| 适配器系列 | Mini Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
环境参数
| 工作温度 | 105°C | ||
