770601-2

点击放大查看

770601-2

制造商
TE Connectivity Ltd.

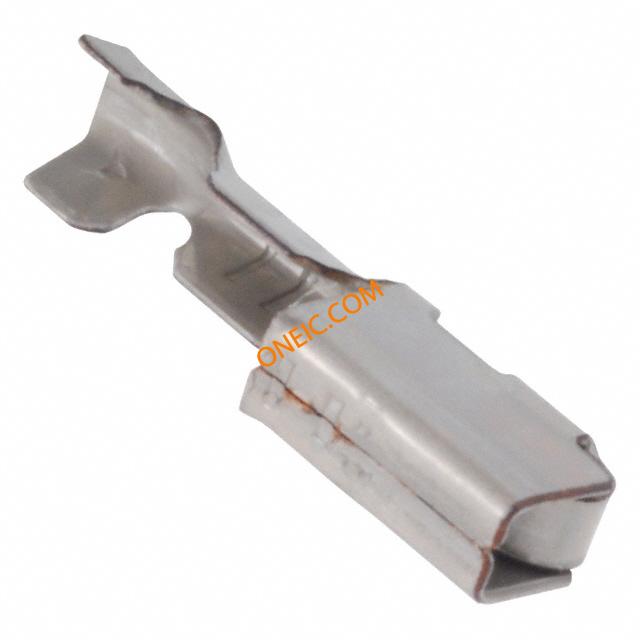

描述Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量5500

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

额定电压250 V接触电阻10mΩ
最大额定电流4 A最小供电电压250VAC

机械参数

深度2.67 mm间距Not Required mm
高度3.06 mm包装方式Tape & Reel (TR)
导线线规0.12-0.4² [26-22]端接方式Crimp
触头类型Signal触点形状Box
外壳颜色Not Required安装类型Straight
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Gold Over Nickel安装样式Cable
触头材料Phosphor Bronze壳体材料Not Required
总长度11.18 mm包装数量Strip
端接排数压接端接样式Crimp
第一触头极性Pin (Male)触点数Not Required
接触件端接Crimp绝缘直径1.65 [0.065]
接触镀层厚度30µin (0.76µm)

产品信息

类型Contact连接器性别SKT
系列CST-100产品子类型CST-100 Contacts
适用产品/相关产品CST-100 Housings

环境参数

工作温度+105°C

文档与媒体

在线文档
770601-2?RQPN=770601-2

相关型号

770602-3

770602-3

te connectivity / amp

Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS CST-100 3 way socket housing,2.54mm pitch Headers & Wire Housings 3P CST-100 HOUSING Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 3WAY Connector;Nylon;Receptacle;3;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:3; polarized, w/o terminals; 2.54mm Crimp housing 3P, 770602-3, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体

¥0.4563
详情
770602-4

770602-4

te connectivity / amp

Conn Housing RCP 4 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4 POS CST-100 4 way socket housing,2.54mm pitch Headers & Wire Housings CST-100 CONN. 4POS Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 4Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 4WAY Connector;Nylon;Receptacle;4;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:4; polarized, w/o terminals; 2.54mm Crimp housing 4P, 770602-4, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体

¥0.4488
详情
770602-5

770602-5

te connectivity / amp

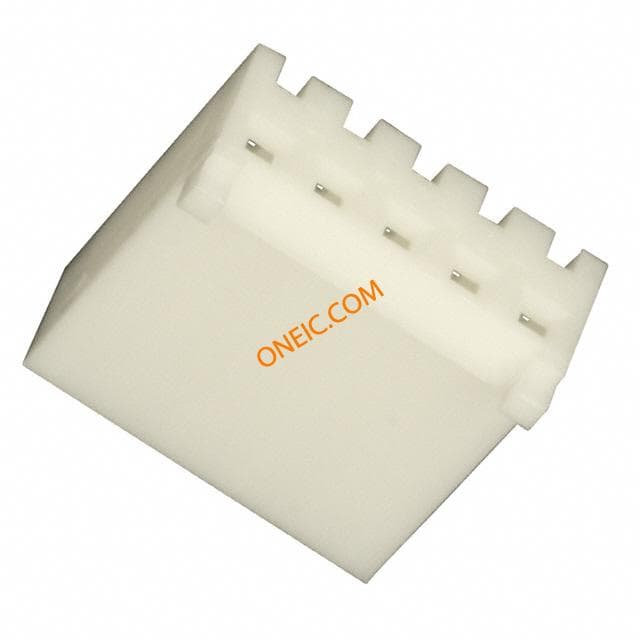

Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS CST-100 5 way socket housing,2.54mm pitch Headers & Wire Housings 05P CST 100 HSG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 5WAY Connector;Nylon;Receptacle;5;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:5; polarized, w/o terminals; 2.54mm TE Connectivity CST-100 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 壳体

¥0.6324
详情
1-770602-5

1-770602-5

te connectivity / amp

Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15 POS CST-100 2.54mm housing rcpt.15w,crimp,white,180° Headers & Wire Housings 15P CST 100 CONN HSG 1-770602-5 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:15 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleCST-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 2.54mmhousingrcpt.15w,crimp,white,180° TE Connectivity CST-100 系列 2.54mm 节距 15 路 直 母 PCB 壳体

¥2.0876
详情
1-770602-3

1-770602-3

te connectivity / amp

Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13 POS CST-100 Headers & Wire Housings HSG REC 1X13C STD Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 13Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13 Position 2.5 mm Pitch Natural Nylon Rectangular Housing

¥1.8836
详情
1-770602-2

1-770602-2

te connectivity / amp

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12 POS CST-100 2.54mm housing rcpt.12w,crimp,white,180° Headers & Wire Housings CST-100 12P HSG Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Nylon;Receptacle;12;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 12 路 直 母 PCB 壳体

¥1.3736
详情
1-770602-4

1-770602-4

te connectivity / amp

Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14 POS CST-100 Headers & Wire Housings 14P CST-100 HSG Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100CONNHOUSING,14PCST-100HSG

¥2.4208
详情
770602-7

770602-7

te connectivity / amp

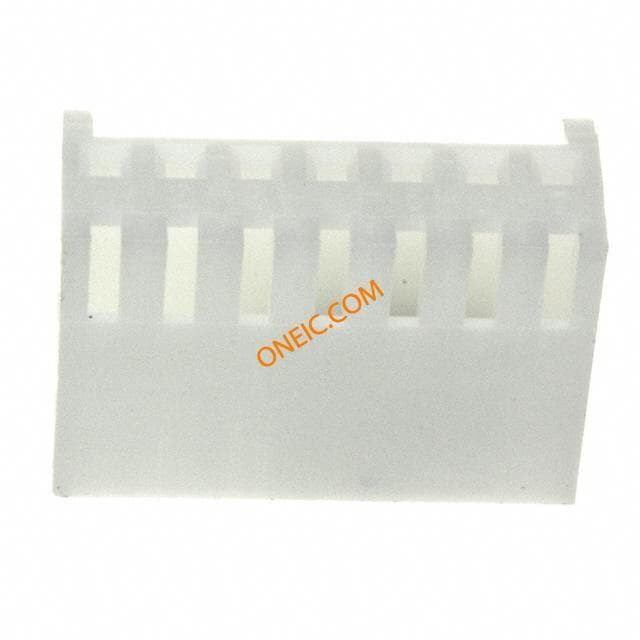

Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7 POS CST-100 Headers & Wire Housings CST-100 HSG 7P Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 7WAY Connector;Nylon;Receptacle;7;White;Crimp;180deg;0.1in.;UL94V-0

¥0.8296
详情
1-770602-0

1-770602-0

te connectivity / amp

Conn Housing RCP 10 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10 POS CST-100 2.54mm housing rcpt.10w,crimp,white,180° Headers & Wire Housings 10P CST-100 HSG Conn Housing RCP 10 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 10Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE TO BOARD CONNECTOR HOUSING Connector;Nylon;Receptacle;10;White;Crimp;180deg;0.1in.;UL94V-0

¥1.1832
详情
1-770602-6

1-770602-6

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 16 POS CST-100 Headers & Wire Housings 16P CST 100 CONN HSG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.0740
详情
770602-8

770602-8

te connectivity / amp

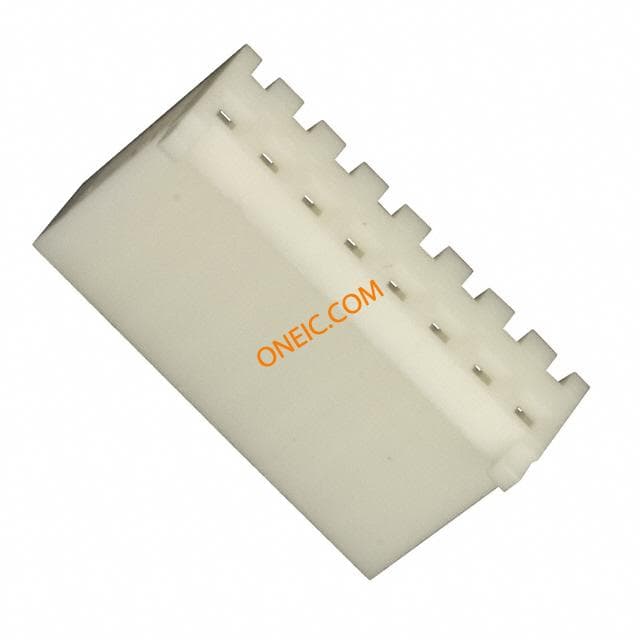

Conn Housing RCP 8 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8 POS CST-100 8 way socket housing,2.54mm pitch Headers & Wire Housings 08P CST 100 HSG Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 8WAY Connector;Nylon;Receptacle;8;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体

¥1.0472
详情
1-770602-1

1-770602-1

te connectivity / amp

Conn Housing RCP 11 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11 POS CST-100 Headers & Wire Housings 11P CST-100 HSG Conn Housing RCP 11 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing11 PositionsHousing Type = ReceptacleCST-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 11POS, 2.54MM

¥1.2580
详情
1-770602-8

1-770602-8

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS CST-100 CRIMP Headers & Wire Housings 18P CST 100 CONN HSG Conn Housing RCP 18 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.1760
详情
暂无图片

2-770602-4

te connectivity / amp

Conn Housing RCP 24 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 24POS CRIMP CST-100 Headers & Wire Housings 24P CST 100 CONN HSG Conn Housing RCP 24 POS 2.54mm Crimp ST Product Highlights:Housing24 PositionsConnector Style = ReceptacleContact Gender = ReceptacleCST-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.9240
详情
91302-1

91302-1

te connectivity / amp

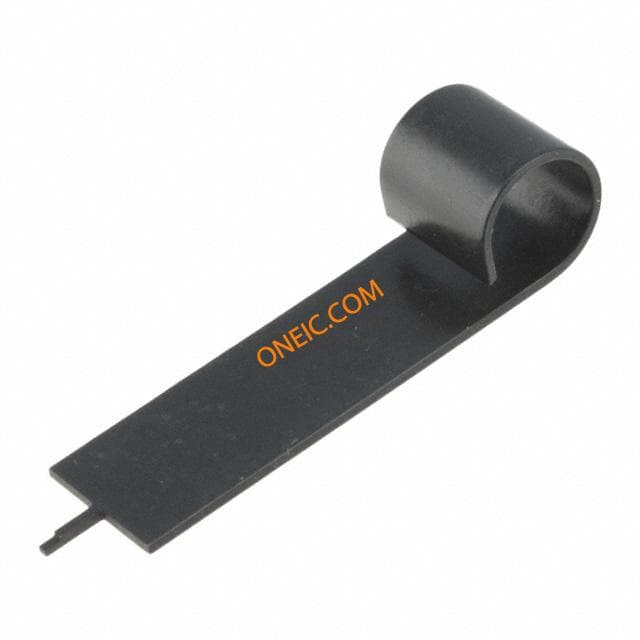

CST-100 Extraction Tool Hand Tools CST-100 EXTRACTION TOOL TOOL CST-100 EXTRACTION CST-100 EXTRACTION TOOL Extraction tool, 91302-1, TE Connectivity TE Connectivity CST-100 系列 拔插件工具 , 适用于插座
