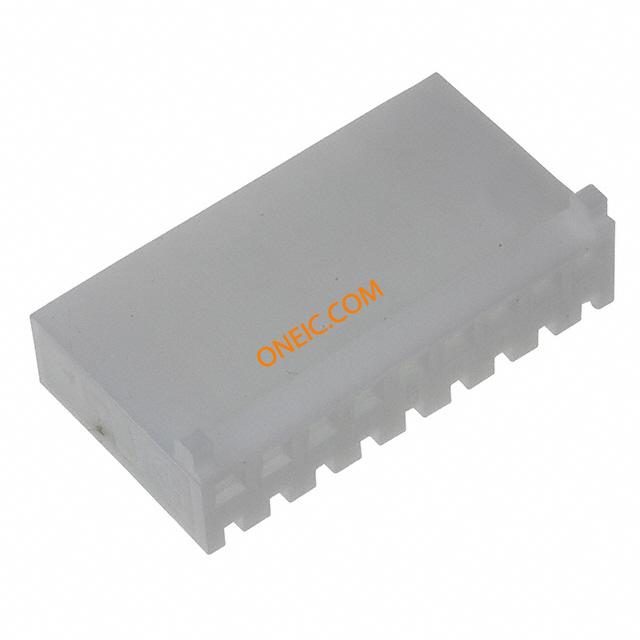

770602-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9 POS CST-100 2.54mm housing rcpt 9w,crimp,white,180° Headers & Wire Housings HSG REC 1X09C STD Conn Housing RCP 9 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 9POS, 2.54MM Connector;Nylon;Receptacle;9;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 9 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - CST-100 Series | 开关功能 | Unlatched |
| 最大额定电流 | 5/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 23.37mm |
| 重量 | 0.0022 | 包装方式 | Bulk |
| 遮蔽类型 | No | 出线方向 | 180° |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight° |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 23.37 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 导线端接方式 | Crimp | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 中心触点表面处理 | 0.1 | 典型触点布局 | 2.54 [0.100] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | CST-100 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

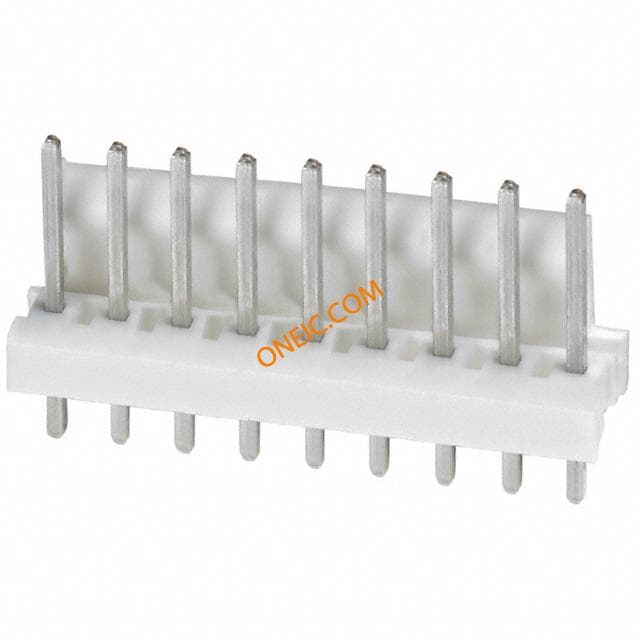

640456-9
