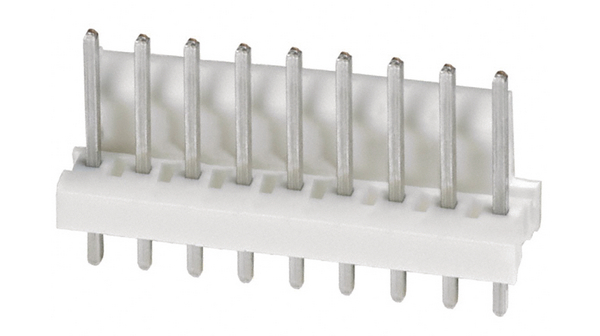

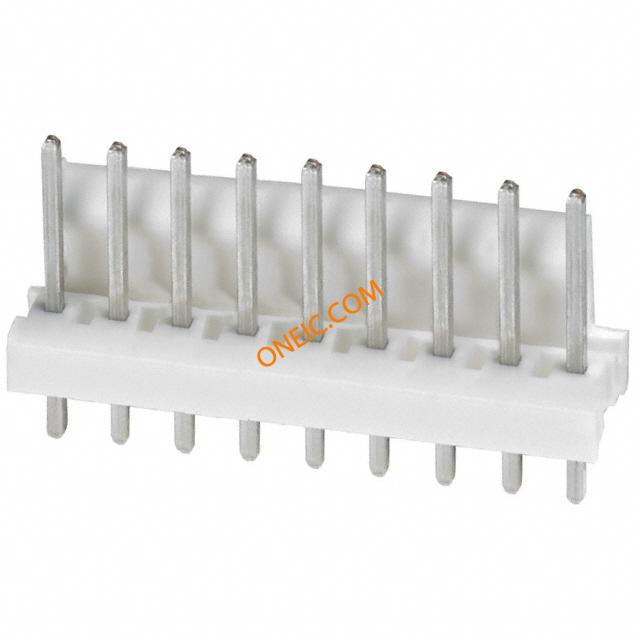

640456-9

点击放大查看

640456-9

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings FRICTION LCK HDR 9P Straight Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, 2.54MM, 9WAY Header,FrictionLock;MTA-100;9;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:9; tinned; 2.54mm Pin header 9P, 640456-9, TE Connectivity 09P MTA100 HDR ASSY F/L SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
海关税号85366930无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V
开关功能Friction Lock接触电阻6 mohm
额定交流电压250最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
重量0.002包装方式Bulk
端口尺寸0.025in.遮蔽类型No
方向straight端接方式Solder
触头类型Male Pin引脚长度（针脚）0.14"
柱间距2.54mm极化Polarizing Slot
第二连接器With触点形状Square
外壳颜色White安装类型Vertical
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin紧固类型Friction Lock
安装样式Through Hole排数1
连接器用途Header锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度22.86 mm安装特性Without
包装数量29面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
连接器 - 电缆socket插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数9
接触件端接:Through Hole Vertical位数9
后壳中断功能Without中心触点镀层工艺0.100in.
柱体长度（配合）0.14in.安装孔直径0.04"
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]恢复后小径No
触点材料 - 镀层tinned第一连接器安装特征1x9

产品信息

SPG29类型Wire to Board
连接器性别HDR系列MTA-100
产品特性Pinstrip制造商全称AMP
产品子类型MTA-100 Connectors适配器系列MTA-100
连接类型Printed Circuit Board单元数量1
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
1697062.pdf
在线文档
640456-9
PDF 文档
1688165.pdf

相关型号

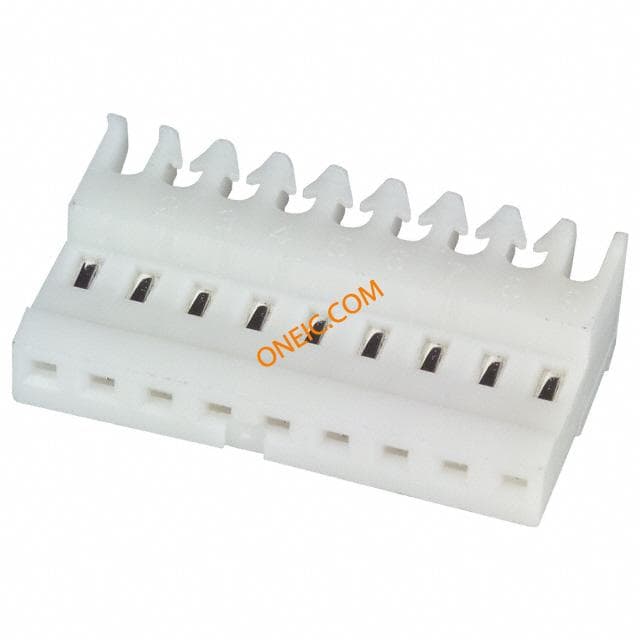

3-644043-9

3-644043-9

te connectivity / amp
