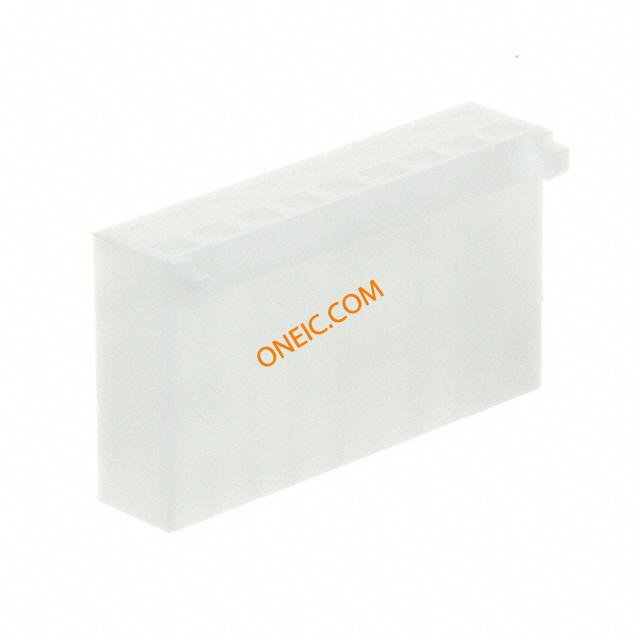

1375820-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 9POS CST-100 II 9w housing CST-100 II Headers & Wire Housings 9P CST-100II HOUSING Conn Housing RCP 9 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING9POS TE Connectivity CST-100 II 系列 2.54mm 节距 9 路 直 母 PCB 壳体 CST-100 II HOUSING 9 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| 认证机构 | CSA,UL | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | 已认证 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 压接 |
| 最大额定电流 | 4/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | White | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 23.37mm |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 遮蔽类型 | No | 壳体颜色 | 自然 |
| 出线方向 | 180° | 导线线规 | 22-28 AWG |
| 方向 | 直 | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | 2.54 [0.100] |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 连接器用途 | Receptacle |
| 壳体材料 | Polymer | 总长度 | 23.37 mm |
| 安装特性 | Without | 包装数量 | 1 |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 9 | 端接表面处理 | 不带 |
| 接触件端接 | Crimp | 位数 | 9 |
| 兼容外壳尺寸（如TM-700等） | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 可密封 | 否 | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | CST-100 II Housings |
| 应用细节 | Wire-to-Board | 适用产品/相关产品 | Centerline Economy Power Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55C to 105C |
相关型号

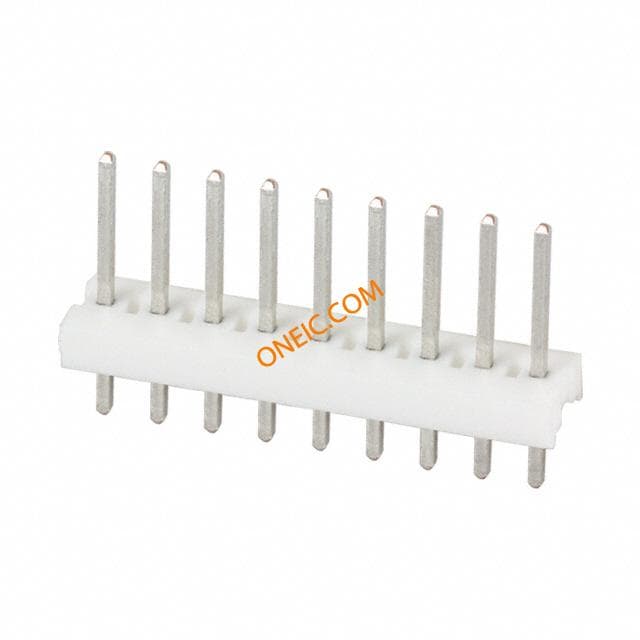

640452-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings FLAT HEADER 9P Straight Post tin Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header9 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 9WAY, 0.1IN 09P MTA100 HDR ASSY SQ STR
3-644695-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings NARROW FLT HDR 9P Strt Post w/ret. leg Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 STR HDR RETENTIVE
640453-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Headers & Wire Housings FLAT HEADER 9P Right Angle Post tin 640453-9 Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 9WR/AHEADER 09P MTA100 HDR ASSY SQ R/A
640456-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings FRICTION LCK HDR 9P Straight Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, 2.54MM, 9WAY Header,FrictionLock;MTA-100;9;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:9; tinned; 2.54mm Pin header 9P, 640456-9, TE Connectivity 09P MTA100 HDR ASSY F/L SQ STR
640455-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Headers & Wire Housings POLARIZED HEADER 9P Right Angle Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY SQ R/A POL
644874-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .100 TIN Headers & Wire Housings 09P MTA100 HDR ASSY SPCL BEND 09P MTA100 HDR ASSY,SPCL BEND 09P MTA100 HDR ASSY,SPCL BEND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640457-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Header right angle 9 way Pin MTA-100 Headers & Wire Housings FRICTION LCK HDR 9P Right Angle Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP FrictionLockHeaderwithPolarizedNotches,Right-AnglePost,9pos. TE Connectivity MTA-100 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 5A 09P MTA100 HDR ASSY SQ R/A F/L
3-641215-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 30AU Headers & Wire Housings HDR 09P VRT F-LOCK 3-641215-9 Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector9 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY FL/ST 30AU
3-644457-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings NARROW FLT HDR 9P Right Angle Post MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 9POS .100 TIN Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY R/A NARROW
641215-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 9POS 30AU Headers & Wire Housings FRICTION LCK HDR 9P Straight Post gold 09P MTA100 HDR ASSY FL/ST 30AU
3-641212-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS R/A .100 GOLD Headers & Wire Housings 09P MTA100 HDR ASSY PL RA LF 09P MTA100 HDR ASSY PL RA LF
3-641214-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 9POS 30AU Headers & Wire Housings 09P HDR ASSY PO/RA Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY PO/RA LF
640454-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings POLARIZED HEADER 9P Straight Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,09PMTA100HDRASSYSQSTRPOL 09P MTA100 HDR ASSY SQ STR POL
3-644456-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings NARROW FLT HDR 9P Straight Post Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:9 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP TE Connectivity MTA-100 系列 2.54mm节距 9路 (1排) 直 引脚管座, 焊接端接, 5A , 通孔 09P MTA100 HDR ASSY (NARROW)
3-641213-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 30AU Headers & Wire Housings HDR VERT 9P 30 AU Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector9 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY PO/ST LF
641216-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 9POS 30AU Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:9 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY FL/RA 30AU

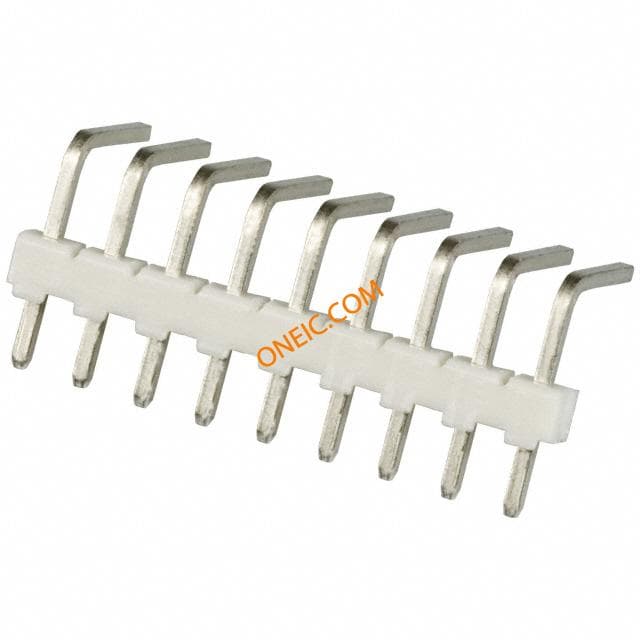

3-644694-9
