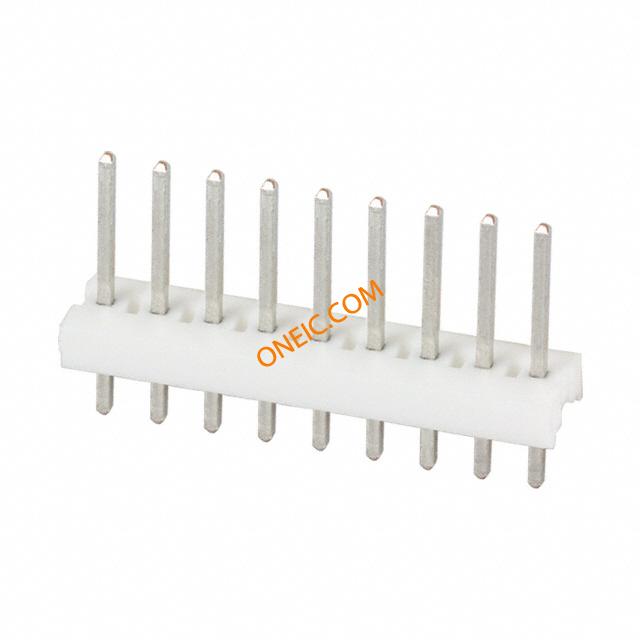

640452-9

点击放大查看

640452-9

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings FLAT HEADER 9P Straight Post tin Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header9 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 9WAY, 0.1IN 09P MTA100 HDR ASSY SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V额定交流电压250
最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
重量0包装方式Bulk
遮蔽类型No端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Tin排数1
连接器用途Header触头材料Copper Alloy
壳体材料Polyester安装特性Without
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数9
接触件端接:Through Hole Vertical位数9
后壳中断功能Without典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]恢复后小径No

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-100制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

文档与媒体

在线文档
640452-9
