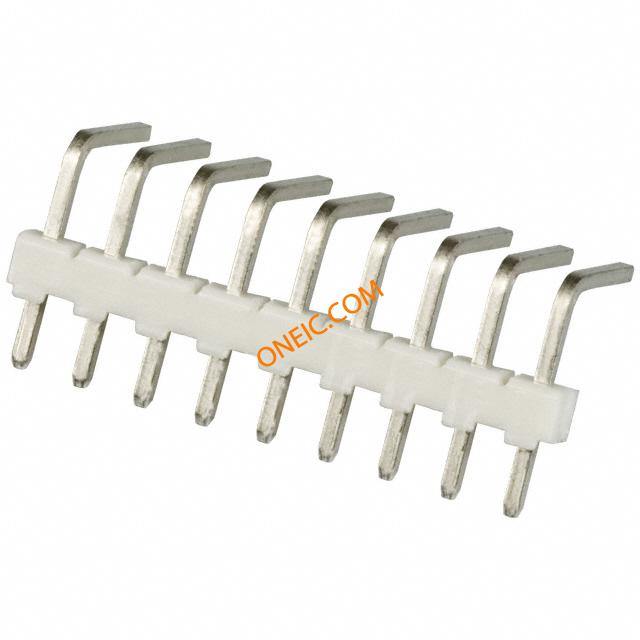

3-644694-9

点击放大查看

3-644694-9

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Headers & Wire Housings 9P R/A HDR RETENTIVE Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:9 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 R/A HDR RETENTIVE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度6.35 mm [ .25 in ]长度22.56 mm [ .888 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式带有排数1
壳体镀层Tin外壳材料（壳体）窄
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量500
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数9
端接表面处理不带位数9
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.260" (6.60mm)端子柱长度6.6 mm [ .26 in ]
接触镀层厚度150µin (3.81µm)恢复后小径Yes
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注2 or 3 retentive leg's per header, depending upon number of positions.类型Unshrouded Header
连接器性别HDR系列MTA-100
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
